RCA RCT6272W23 Speaker Replacement

Geschrieben von: Stephen Radachy
  • Kommentare: 0
RCA RCT6272W23 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

In this guide, you will learn how to replace the speaker on your device.

  1. oPRFjWaktfQtMXSh
    oPRFjWaktfQtMXSh
    QA1rwKuH1qPdXIq5

    • Use a Phillips #00 screwdriver to remove both 4.1 mm screws at the top of the device which hold it together.

  2. bucHYAewMwNXGvHn
    bucHYAewMwNXGvHn
    Mfy2T4mjAPnGchRF

    • Press the plastic opening tool into the space between the front and back portions of the case.

    • Run it along the perimeter of the device to unhook the plastic tabs.

    • Gently pull both sides apart.

    • The speaker is connected to the back cover, so be careful when separating.

  3. Ei4mIdiyIVWjQH44

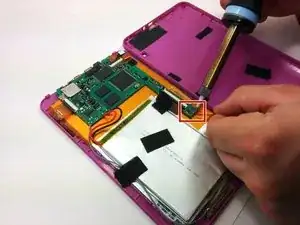

    • Remove the soldered wire connections to the speaker.

    • Soldering irons can cause burns and severely damage your device. If in doubt, pause and think about it.

    • For more information about soldering, check out this guide.

  4. OGs2WUdFI2NSSuKt

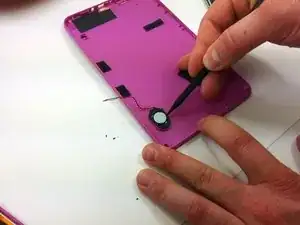

    • Pry the speaker gently out of its plastic enclosure using a spudger.

Abschluss

To reassemble your device, follow these instructions in reverse order.
