RCA RCT6773W22 Motherboard Replacement

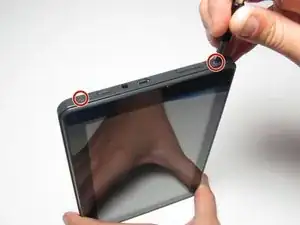

Remove the two 5mm screws from the bottom of the device using a Phillips #000 screwdriver.

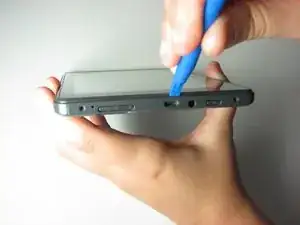

Place the plastic opening tool between the case and the screen.

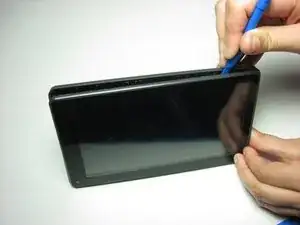

Slide the tool clockwise around the case until all the clips are removed.

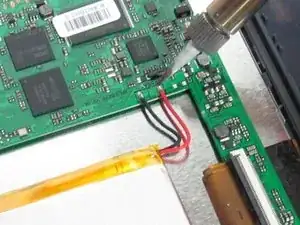

Desolder the two wires that connect the battery to the motherboard.

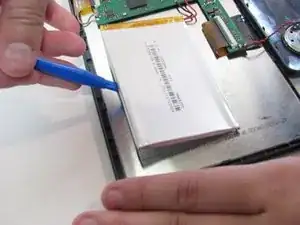

Using the blue plastic opening tool, lift the battery away from the device.

Desolder the wire connected from the speaker to the motherboard.

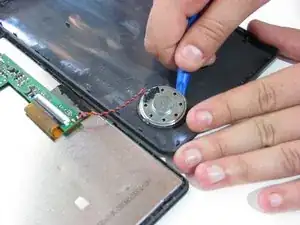

Pry the speaker from the casing with a plastic opening tool.

Use the spudger to lift up the black tab on all three ZIF connectors.

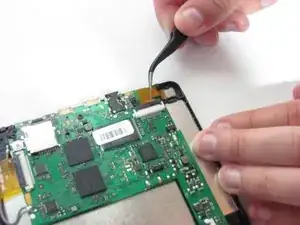

Use tweezers to remove the ribbon cables from the zift connectors.

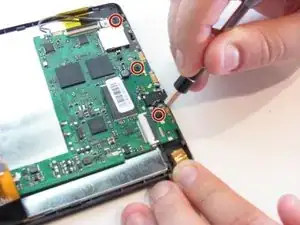

Use Phillips #000 screwdriver to remove the three 3mm screws on the motherboard.

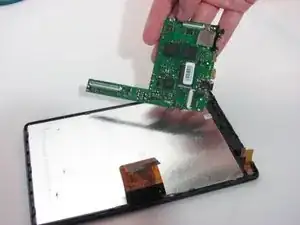

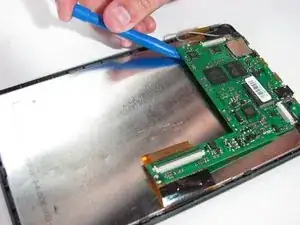

Use a spudger or plastic opening tool to lift up the motherboard.
