RIDGID R84015 X2 Speed Switch Replacement

Remove the backplate.

Using a Torx T20 screwdriver, remove the four screws attaching the back plate.

Remove the drill handle.

Using the Phillips #2 screwdriver, remove the five screws attaching the drill handle to the body.

Remove the gear casing from the body.

Using the Philips #2 screwdriver, remove the four screws attaching the gear casing to the body.

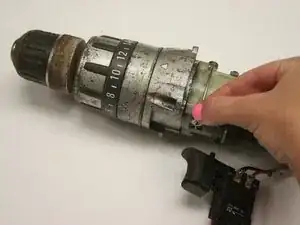

Locate small metal bar above plastic part of drill.

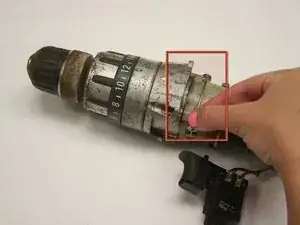

Attempt to move bar back and forth. If it wont move, try to move it while rotating the chuck. If it still will not move, there is a problem with the gears. For help see the Planetary Gear Replacement Guide

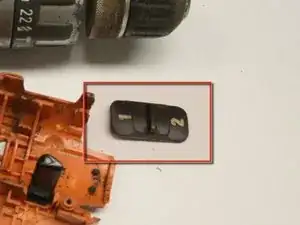

If the bar moves, next check the small plastic switch that is numbered 1 and 2.

Make sure the small tabs on the underside of the switch that move the bar are intact.

Replace switch as needed.
