Repair Broken Connections in the Pyrus PY21S03211

Geschrieben von: Danielle Hadaway
  • Kommentare: 0
Repair Broken Connections in the Pyrus PY21S03211

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

30 Minuten

Einleitung

This guide is designed to help solder any wires that may be broken. Soldering irons are somewhat dangerous to handle due to the extreme heat, so exercise caution when soldering. It's also very important to keep the thick white connector from breaking, so when opening the side panel, keep the device close to the panel until the connector is safely removed.

  1. hUJBVyjh5ONcxQpL

    • Turn the video camera upside down so the bottom of the device is visible.

  2. yWlcDOxOnW1afBHa
    yWlcDOxOnW1afBHa
    QoqbG2r6hgkFCwKk

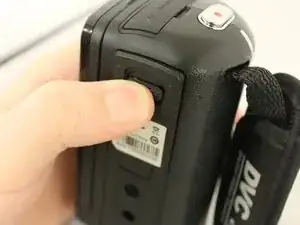

    • Pull back the bottom tab to reveal the battery compartment.

  3. wFnTLxXr4reueVAM

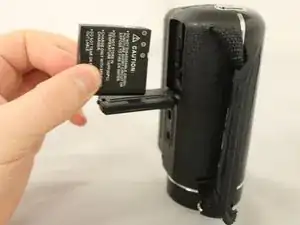

    • Pull back tab that is holding in the battery in place and remove the battery from the device.

  4. UfyLcsZHaQK6pehw

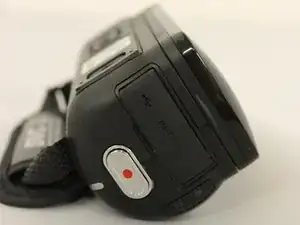

    • Find the device's HDMI/TV cover.

  5. KBBa5ZFZULxNVwqu

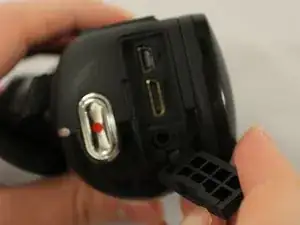

    • Open up cover to reveal the device ports.

  6. BQ6VMBQMEem5Qyf2
    BQ6VMBQMEem5Qyf2
    IpGXFUyuSZ3weQuE

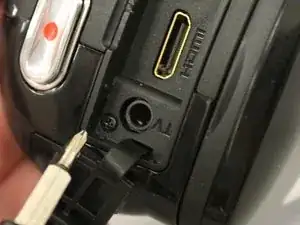

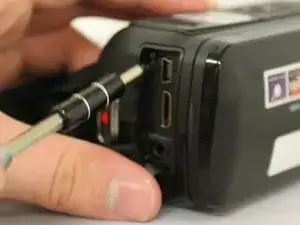

    • Use screwdriver to remove 4mm screws from the port cover.

  7. gQHqcEME1unCL2qd
    gQHqcEME1unCL2qd
    RyDHMmkApnndjbvK
    axBP2l3KI2rOytld

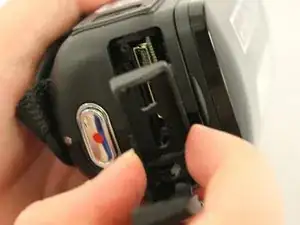

    • Use tweezers to remove the plastic port cover.

  8. YYF2VaeXZ66QQyHK

    • Open the display screen.

  9. XyYgB6sFQexwpOqM
    XyYgB6sFQexwpOqM
    WkQdymTOdAbIv24k
    4Jgm6T2HY15TU15y

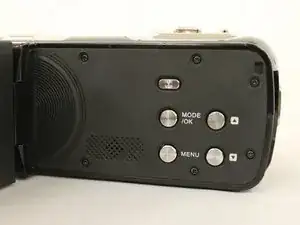

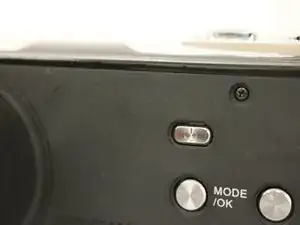

    • Use tweezers to carefully pull out the circular stickers to reveal the 4mm screws.

  10. PYDcgABtRF5hSVZk
    PYDcgABtRF5hSVZk
    fTFYIRV6M3CocLJD

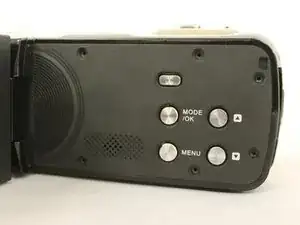

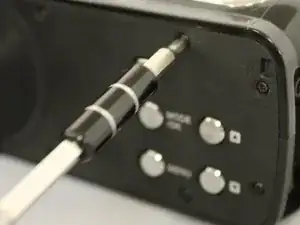

    • Use a 00 screwdriver to remove all six 4mm screws from the side of the device.

  11. SFldLkTkVaNDiYTv
    SFldLkTkVaNDiYTv
    hSENcyastMxy3Sas
    Xhu6f6nCpKDQXTMC

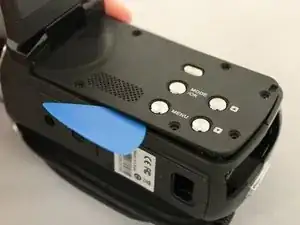

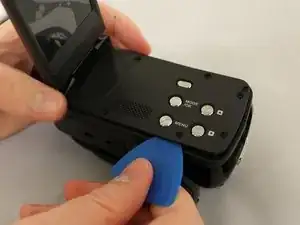

    • Use a thin plastic pick to pry off the side of the device and carefully remove the display.

  12. XB6pIV3m26BXruLF

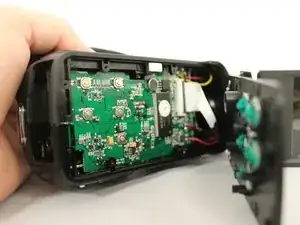

    • Carefully remove the side face from the device. Avoid pulling on the white connector.

  13. mkNFqniHsGO3qV2y

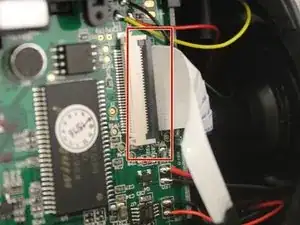

    • To remove the side face entirely, find the large white connector, flip open the grey lip with tweezers, and gently remove the white connector.

  14. EsSjSTKMy3ysIn1p

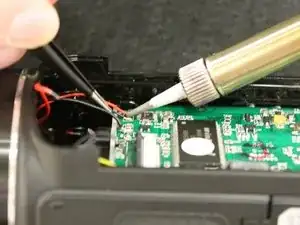

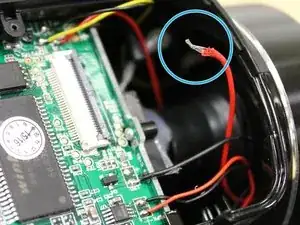

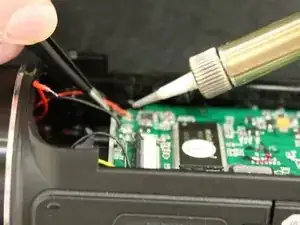

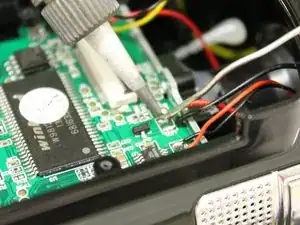

    • Find the broken wire.
