The bumper sensors on bObsweep Standard and Pethair models are essential in directing movements and determining Bob's distance from obstacles.

Video tutorial:

  1. VM3O6bywKselIhie
    VM3O6bywKselIhie
    VWHMj3IRkbyBRaZk
    UaCfuCONcnbSHxZb
    • Flip Bob over and remove the 7 screws around which hold the cover together.

    • Remove the main brush. Unscrew the holder, and lift the brush out. Reminder: Keep this screw separate from the others so you can use it later to reinstall.

    • Depending on your model, there may be only 6 screws installed on bObsweep.

  2. OwwNemtlqeUo5MKq
    OwwNemtlqeUo5MKq
    o6wpFlcIdRXybJSS
    6HKDRXvIJDB1HgwZ
    • There are two screw holes inside the brush compartment: one in the centre, one on the left end. Remove both and keep aside for reassembly.

    • There are five more screws around bObsweep's edges. Two are installed at the top and bottom, and one on the right end of the main brush.

  3. ogobPJAptncl2KMP
    ogobPJAptncl2KMP
    G6pw1eCPSOp242uO
    • Flip bOb back over so you can see the screen. Lift the cover up to reveal bObsweep’s main board.

    • Detach the power inlet from the cover. Grip and slide it out.

  4. dHRYxmrDlqfUwvXd
    dHRYxmrDlqfUwvXd
    t4R3QdImTwyUqEWd
    • Remove three circuit plugs from the motherboard. Pinch the small white tab on the side of each circuit plug and pull straight up to release each from the motherboard.

    • 1. On the bottom left corner: a small connector with red, black and white wires.

    • 2. One thick white wire that attaches on the right side of the previous connector.

    • 3. On the top edge of bOb’s motherboard: a wide multicoloured connector.

    • Place the cover aside and begin your repair.

  5. uUyXVE1lZDcSnjOv

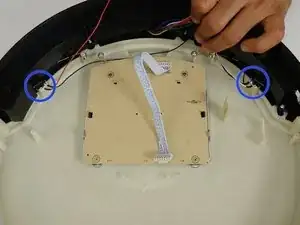

    uUyXVE1lZDcSnjOv

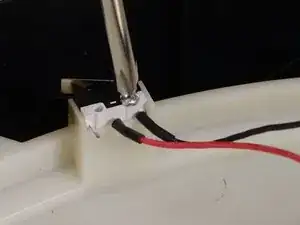

    IBLUvnyehsioDUhm

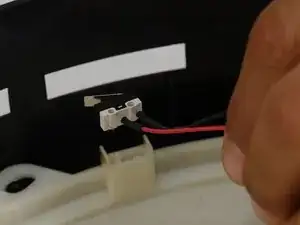

    LEVeHrSDE62Mn6k2
    • There are two sensors that touch the inside of bOb’s bumper wired to one another as well as one circuit plug.

    • To remove these , uninstall the two screws holding them in place. Then, lift each sensor up.

  6. 11yfP2L5K6sdArrX

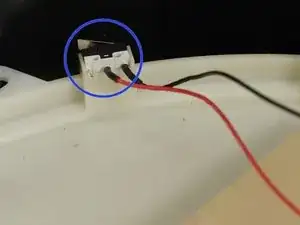

    11yfP2L5K6sdArrX

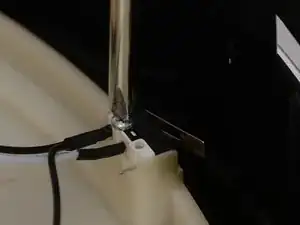

    4LHp5GbEREXk1xV4

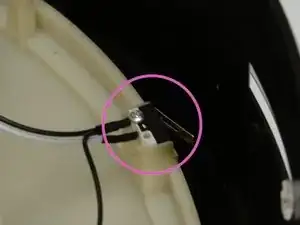

    4S33UC11TEclrfq5
    • Place your new sensors in the open spaces.

    • Make sure you place the sensor with the red wire on the left side when bOb’s cover is upside down.

    • The black wired sensor should be on the right side during the repair.

    • Replace the screws in the innermost holes. Then follow the guide for Closing bObsweep's cover after repair

Abschluss

To reassemble your device, follow these instructions in: Closing bObsweep's cover after repair
