This guide is for replacing the front light on the Ridgid JobMax R2851 Series B. This guide would be helpful if the front light of the device has gone out, and you want to replace it.
This repair requires minimal tools listed in the guide, and can be done in a short amount of time. Additionally you should remember to unplug your device before starting any repairs to avoid risk of being electrocuted.
-
-
Orient the device so that the trigger is facing downwards.
-
Place your thumb and index finger on the two buttons located on the head of the tool.
-

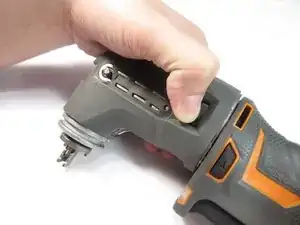

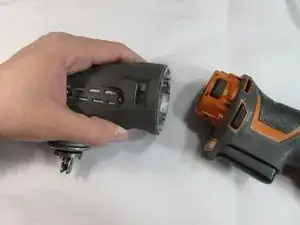

Press the two buttons in and pull the head of the tool off.
-
-
-
Orient the device so that the cord end is facing upwards.
-

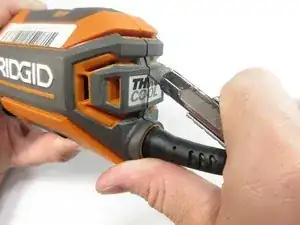

Take a small cutting tool, and cut down the seam in the back, ensuring that you only cut the sticker.
-
-
-

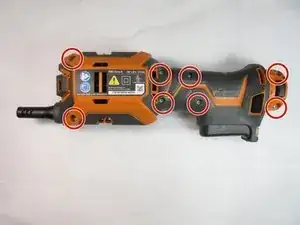

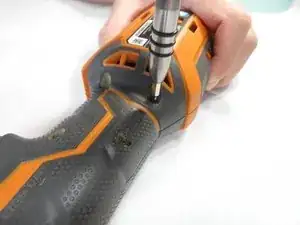

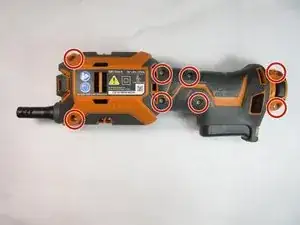

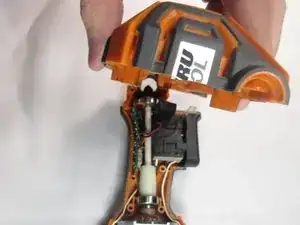

Pull the device case off, gripping at the back of the case and rotating it towards the front of the device.
-

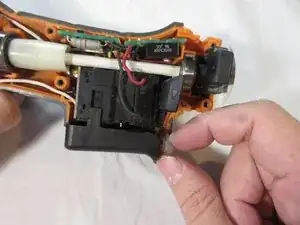

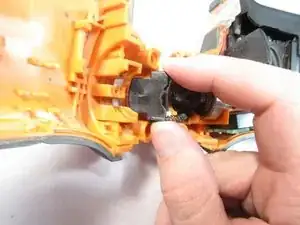

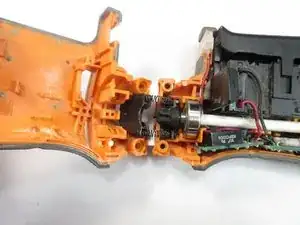

Once the device has been separated gently pull on the trigger assembly to remove it from one side of the case.
-
-
-

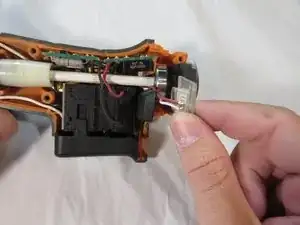

Once the device is apart, grab the LED light located in front of the trigger.
-
Slide the light upwards and out, freeing it from the device.
-
To reassemble your device, follow these instructions in reverse order.
