Ridgid JobMax R8620 Series E Motor Replacement

Geschrieben von: Pengjian Zhou
  • Kommentare: 0
Ridgid JobMax R8620 Series E Motor Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 - 15 Minuten

Einleitung

The motor helps run all the functions on the device and so if it is not working properly please view this replacement guide to learn how to replace the motor.

  1. AotQd4hHK5NLWdvy

    • Pull the battery out of the case by hand before opening the device.

    • Using a Torx T10 screwdriver, remove the nine 6mm screws on the drill cover.

    • Lift off the outer casing.

  2. wLvfTQkM3BXNXPFB

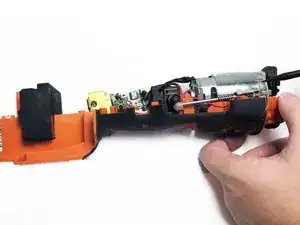

    • Using a spudger or your fingers, remove the LED light from the groove in the handle.

  3. rhm1xpuIbHVbHjfT
    rhm1xpuIbHVbHjfT
    wWIcqEQIOtAGnKKL

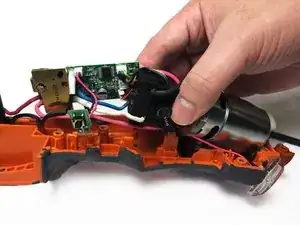

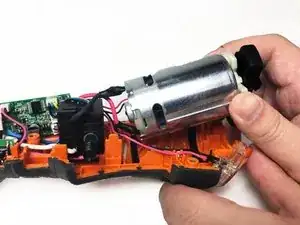

    • Carefully remove the motor as well as the main board from the drill cover.

  4. UbtYfApXQawYRwTc
    UbtYfApXQawYRwTc
    5BoVn2XrBKsJgsRU

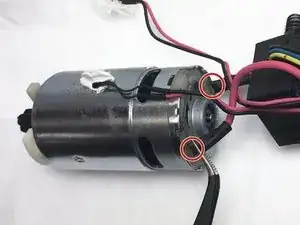

    • Find the black and red wires from the motor.

    • Remove the electrical tape using tweezers.

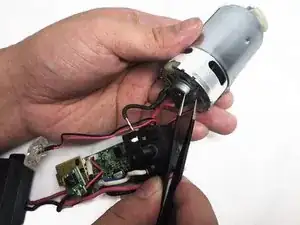

    • Using a soldering iron, desolder the black and red wires from the motor.

    • Refer to this helpful guide for tips on soldering/desoldering.

Abschluss

To reassemble your device, follow these instructions in reverse order.
