Ridgid R86034 Motor Replacement

Geschrieben von: Tommy Lovelace

Kommentare: 2

Schwierigkeitsgrad

Difficult

Schritte

Zeitaufwand

45 Minuten

Einleitung

Soldering is required for some of the steps in this guide. Refer to the iFixit guide on Soldering if you need help learning how to solder. This replacement guide requires dealing with grease, make sure that you are wearing clothes that can get dirty and you are working on a surface that can get dirty.

Werkzeuge

Schritt 1

Use the flat side of a metal spudger to peel the black rubber cover off of the casing.
Use some force; the rubber cover is securely attached to the housing.
Rotate the casing until it fits onto the housing with no gaps between it and the clear cover.
Orientation is important when putting the rubber cover on the casing.

Schritt 2

Remove the plastic cover with your hands.
There is no need to force off the plastic cover. The plastic cover should be much easier to remove than the rubber cover.

Schritt 3

Unscrew the four 16 mm long screws from the back panel with a T10 Torx Screwdriver.
Use a firm grip to peel off the back panel. It is sealed tight and requires a good amount of force to remove.

Schritt 4

Unscrew the eight 15 mm T10 Torx screws from the housing
The screw hole located nearest the battery port is deep and small. Most screwdrivers with replaceable bits will not fit into the hole. Instead, use a conventional screwdriver that fits.

Schritt 5

Place the driver flat on a table before completely separating the two halves of the housing so components of the drill don't fall out during opening.
Pry apart the two halves of the housing at the back side of the driver using the metal spudger.
The housing is easier to remove if you pry from multiple sides.

Schritt 6

Do not remove the direction switch.
Pull out all electrical components from housing by hand.
Lift out the motor.
Follow the wires.
The components should come out of their respective slots with ease and require little force to lift out.
The circuit board located nearest the battery pack and the LED light will be hard to pull out.
Remember to precisely place all components in their correct slots with their correct orientations when reassembling.

Schritt 7

Do not invert gear assembly! Keep gear assembly oriented so that the chuck is lower and the place the motor was attached is higher or else gears could fall out.

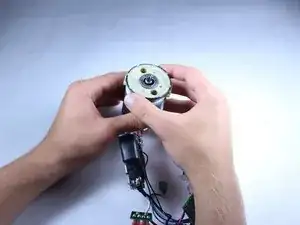

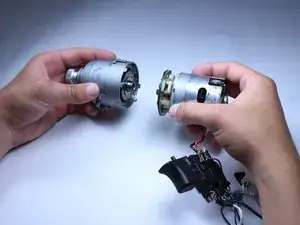

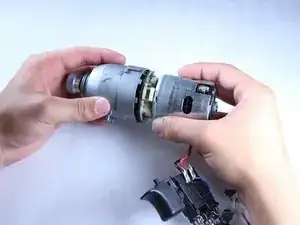

Twist off and separate the gear assembly from the motor assembly.
Some force will be required to twist off the gear assembly.
When putting the motor back onto the gear assembly, make sure that the tabs on the edge of the gear assembly are oriented to fit the tabs found on the edges of the motor.

Schritt 8

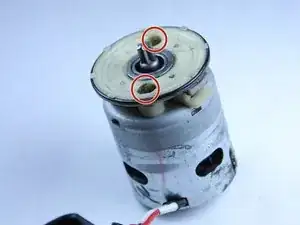

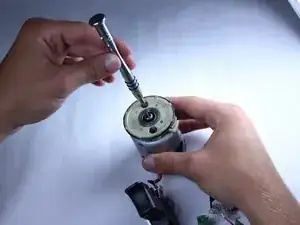

Remove the two 14 mm long PH1 screws that connect the plastic object to the motor assembly.

Schritt 9

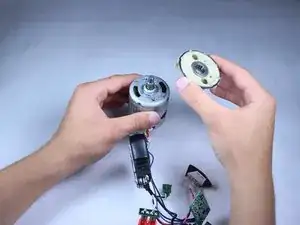

Remove the plastic object from the motor assembly.
It should not require that much force to remove the plastic object.

Schritt 10

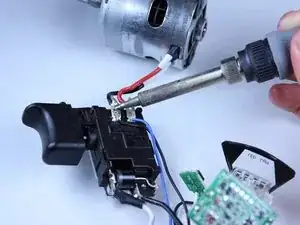

Desolder and remove the red and black wires connecting the trigger assembly and the motor.
Take note of the orientation of the wires for when they need to be resoldered.

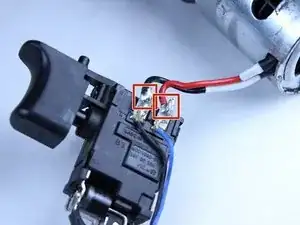

You should only desolder the top-left black wire and the top-right red wire, not the bottom-left black wire or the blue wire.
