Roku 3 A/C Power Port Replacement

Geschrieben von: Andy Hak
  • Kommentare: 2
Roku 3 A/C Power Port Replacement

Schwierigkeitsgrad

Difficult

Schritte

8

Zeitaufwand

20 Minuten

Einleitung

Replace a broken or faulty power jack for your Roku 3. The Roku 3 cannot power on without a functioning power jack.

  1. BKeyQNTMAKaMQqRg

    • Place the Roku 3 on the table face down and orient it so you can correctly read the writing.

    I had face the same problem in my Roku Streaming Device, so I looking for a solution and I found in internet, https://roku.techpal365.com, this website have the solution for your issues even you can also call to their toll free number.

    Praba Karan -

  2. LQxVIsXNmR4SOJYn
    LQxVIsXNmR4SOJYn
    KFPp3ZiIMWEAhqqD
    Zs6qVAyxXBW6r3Sr

    • Pull back the rubber protection in the top right corner to locate the screw.

    • Repeat with the bottom right corner and bottom left corner.

  3. gCO6GIrw4wK4WWaN

    • Remove the 9 mm screws from the three corners with a Hex 1.3 Screwdriver.

  4. OiTktGAUwQemimol
    OiTktGAUwQemimol
    NEdfmwCXN6ZEAMMT

    • Open the device by gently lifting the bottom half away from the top half of the device.

  5. YTkJYqkoLYJEuN6U

    • Use your fingers to carefully lift the motherboard from the top half of the device.

  6. ZWJKqTSeZsYJXPTH
    ZWJKqTSeZsYJXPTH
    YKT6wIPJnVZKLW4U

    • Pull away the IO shield from the motherboard using your hands.

  7. m2vpuFaOCS2BXvPO
    m2vpuFaOCS2BXvPO
    kSZfuDFHeqqh1a3g

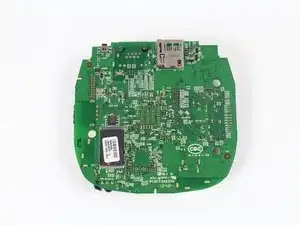

    • Turn over the motherboard so the back is face up and almost all large silver components are resting facedown on the table.

    • Orient it such that the backside of the HDMI port is in your upper right corner.

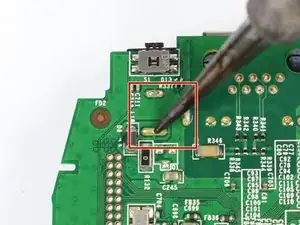

  8. jyAMrUmAZr3TgAKv

    • Desolder the connections of the A/C Power Port on the motherboard.

    • Remove the port.

    • For more information on soldering, check out iFixit's Soldering Guide.

Abschluss

To reassemble your device, follow these instructions in reverse order.
