Roku XD 2050X Ethernet Port Replacement

Geschrieben von: William
  • Kommentare: 0
Roku XD 2050X Ethernet Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

In this guide we will show you how to replace the Ethernet port on your Roku XD 2050X. To complete this guide, you will need to disassemble your device and use a soldering iron to replace the port.

  1. JMr55JJrLqtxvU2h
    JMr55JJrLqtxvU2h
    rYc5yXRDM5AP1WFw
    1USoByoaumVnSFl5

    • Ensure the Roku XDis unplugged.

    • Take care when handling components. Circuit boards, soldering points, and other areas may have sharp points.

    • Turn the device upside down.

    • Remove the two rubber pads using a plastic spudger.

  2. qk1gdM5KrlTIvfee
    qk1gdM5KrlTIvfee
    T5IGX2tqqqYAlmdW

    • Remove the two Phillips #1 9mm pan-head screws.

  3. aF51LrqZZXGDS1xB
    aF51LrqZZXGDS1xB
    ri6JPXDqWXCukMOC
    yL23KXAHOcAulx6u

    • Insert spudger between upper and lower frame underneath the port access.

    • Guide spudger around to loosen upper and lower frame to pry frame apart.

    • Gently remove upper frame.

  4. STJNIN4mhDikK1fD
    STJNIN4mhDikK1fD
    rGqTjAYH6XjwgS1n

    • Remove the two Phillips #1 8mm pan-head screws.

  5. BehtYBwxw5ugqOxI

    • On the side of the board opposite the ports, find and tilt back the tab securing the board in place.

    • Lift the motherboard out of the lower frame.

  6. kHQrNMrQk6LqMco3

    • Desolder the 8 contact points.

    • For help with soldering view the iFixit soldering guide.

  7. OqZJ3ke5QyQSVSVv

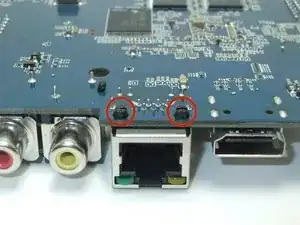

    • Use pliers to pinch the two anchor points and gently press them through the board to separate ethernet port.

    • Remove the Ethernet port from board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
