Roku XD 2050X Remote IR LED Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

30 Minuten

Einleitung

Use this guide to replace a damaged or malfunctioning IR LED in the Roku XD 2050X remote control. To complete this guide, you will need to disassemble your remote and use a soldering iron to replace the LED.

  1. qKqDGsq5VTwQSFWT
    qKqDGsq5VTwQSFWT
    miMrreesJOOBUwog

    • Take care when handling components. Circuit boards, soldering points, and other areas may have sharp points.

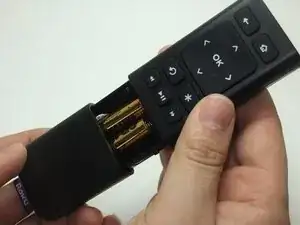

    • Remove the battery cover.

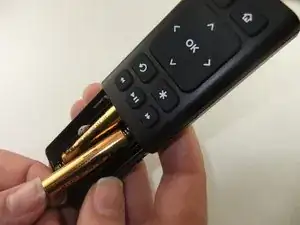

    • Remove the two AA batteries.

  2. Y3Xo2NTBEScTHYyy
    Y3Xo2NTBEScTHYyy
    S1jlwOJDioEETtAj

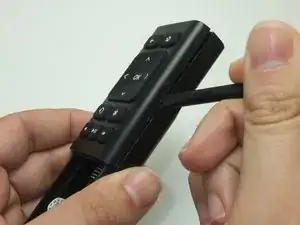

    • Insert flat edge of spudger into seam between the top and bottom halves of the remote control.

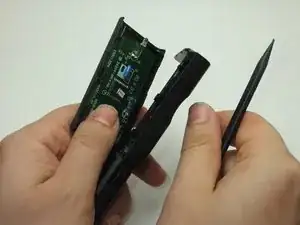

    • Gently twist the spudger to separate the top and bottom halves of the remote.

  3. AF3lHQMQTmH3dkMo

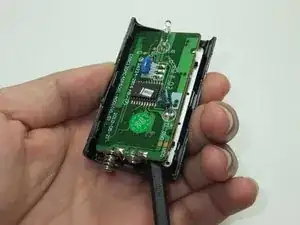

    • Gently use the spudger to pry the circuit board loose.

  4. WJV3TXcGtceplIHt

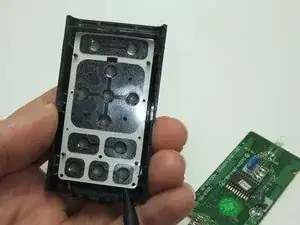

    • Using either end of the spudger, gently lift and remove the clear keypad backing.

  5. dTxPBC1IyZ6dfnQk

    • Using either end of the spudger, lift and remove the rubber keypad.

  6. gCvugIGuegVPbvHj

    • Desolder the two contacts for the IR LED.

    • Remove the IR LED from the circuit board.

    • For help with soldering view the ifixit soldering guide.

Abschluss

To reassemble your device, follow these instructions in reverse order.
