Einleitung
This repair is for if your trigger on your drill stops working or has issues cutting in and out. Soldering is required for this repair and it will fix your drill trigger for future use.
Werkzeuge
Ersatzteile
-
-

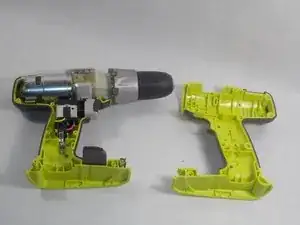

Detach the battery unit from the drill body by pressing the battery release buttons on both sides of the unit and pulling outwards.
-
-
-

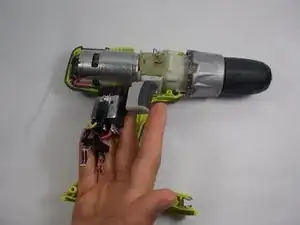

Carefully lift and remove the battery clip, trigger, motor, and everything connected to the wires and pull straight out of the drill.
-
-
-

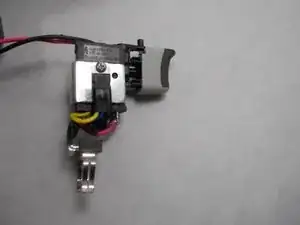

Separate the wiring from the trigger and the motor using a soldering iron and them replace them with a new trigger and motor by soldering the wires back together.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
