Einleitung
Note: This guide should be used as a "last resort" after all of our other troubleshooting and repair guides fail to fix your problem. You will lose all system settings or save data after replacing the motherboard. Additionally, in order to perform the steps described in this guide, we encourage you to look at our "Back Cover Replacement Guide" here.
Note: Place all screws you remove in a safe location such as a magnetic project mat or plastic bag.
-
-
Scratch off the right-hand side of the sticker at the center of the bottom case using the spudger until the screw is visible.
-
Remove this screw with the Phillips #000 screwdriver.
-
-
-
Use your fingers to peel off the four corner rubber feet on the bottom.
-
Use the Phillips #000 screwdriver to remove the four screws beneath the rubber feet.
-
-
-
Flip the case to its upright position.
-
Place one hand on the bottom plate of the case and one on the top plate. Gently pull apart the two plates by tilting the top plate about the front of the device. Treat the front of the device as a hinge.
-
Remove the back cover from the device.
-
-
-

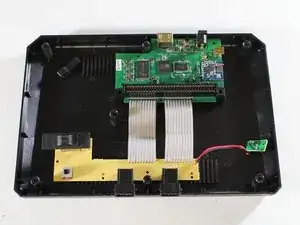

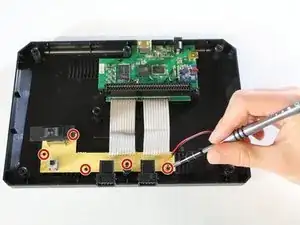

Use the Phillips #000 screwdriver to remove the five screws circled in the provided picture.
-
The tan board can now detach from the rest of the case, as pictured, but you can feel free to leave it in place for now.
-
-
-

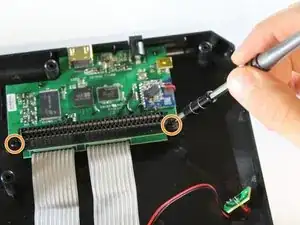

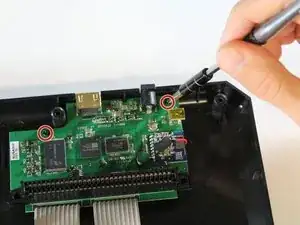

Remove the smaller screws located on the green motherboard with the Phillips #000 screwdriver.
-
Remove the two larger screws holding down the game cartridge slot with the Phillips #1 screwdriver.
-
-
-

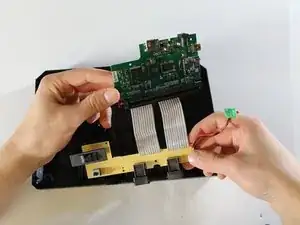

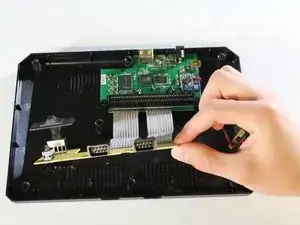

Gently remove the motherboard and the connected tan power switch board from the bottom plate.
-

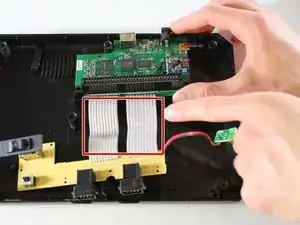

To reassemble your device, follow these instructions in reverse order. We have attached photos to assist you in replacing the LED bulb in the correct spot.
