Samsung 27E510C Audio Jack Replacement

Geschrieben von: Cesar Morales
  • Kommentare: 0
Samsung 27E510C Audio Jack Replacement

Schwierigkeitsgrad

Difficult

Schritte

9

Zeitaufwand

5 - 10 Minuten

Einleitung

Because this model does not come equipped with speakers, this port can be used to connect external audio equipment to give your monitor sound. If the audio jack is damaged, connected audio equipment will not operate properly.

  1. UJiTggQWHYuvvvK6
    UJiTggQWHYuvvvK6
    3BcbwPZ5foxV2Tjo
    CLKqqyxVDD2hgu4U

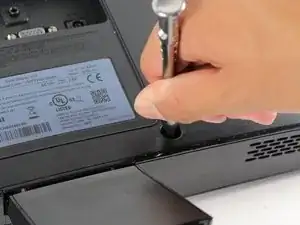

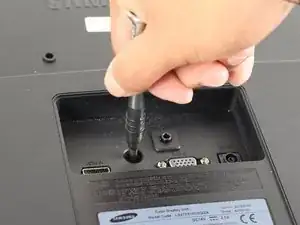

    • Use the #1 Phillips head screw driver to remove each 13.75mm length screw from the rear panel.

    • The screw alone with the ports is a different size than the rest, its length is 12mm.

  2. YWHirDGt2l4EUIGF
    YWHirDGt2l4EUIGF
    rhXToE3keAAyumZ2

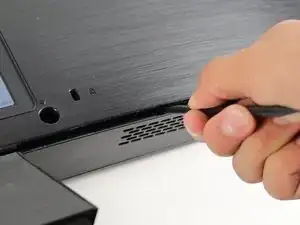

    • Insert the heavy duty spudger in between the monitors back panel and its frame.

    • Use the heavy duty spudger to pry open the back panel.

    • Over aggressive prying could break the tabs holding the back panel in place.

  3. TaNFRP3ngRONKitW

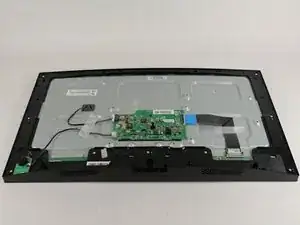

    • Remove the navigation button connector by pulling while holding down its thumb tab.

  4. buKIIfiMZAB2YXFX

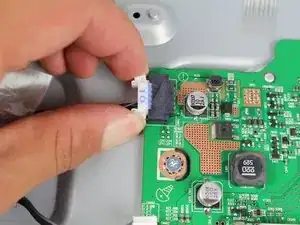

    • Remove the screen connector by gripping its sides and gently pulling while wiggling back and forth.

  5. MqkYV4yLOpF1ZH5w
    MqkYV4yLOpF1ZH5w
    mIkcrZYbZ6kTxH4U
    niDYnEXCCenc1rNV

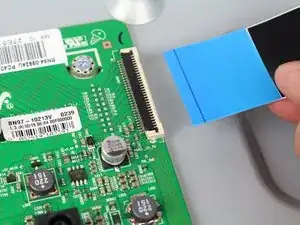

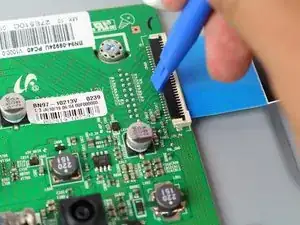

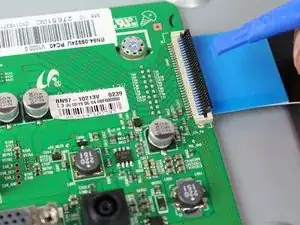

    • For the ribbon cable, Lift the tab from the side facing the inside of the mother board with your fingernail or a spudger.

    • Remove the cable by pulling while lifting slightly.

    • If the cable does not come out easily, than the secure tab may not be fully opened.

  6. Wc2qStTUgxCQWcNn
    Wc2qStTUgxCQWcNn
    fVOUVeiqKRRcC1ik
    V2iEsHbJQBCLc1RG

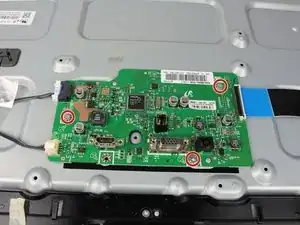

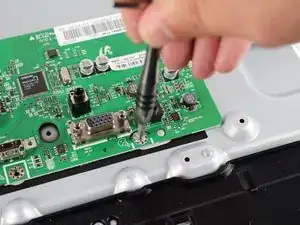

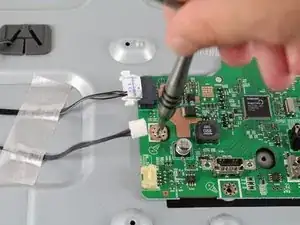

    • Remove each of the 5mm length screws attaching the motherboard to the body of the monitor using a #1 Phillips head screwdriver.

  7. H5TWfCfsJxf43YQj
    H5TWfCfsJxf43YQj
    2fch62SkbXkHIOJo

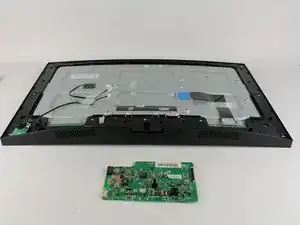

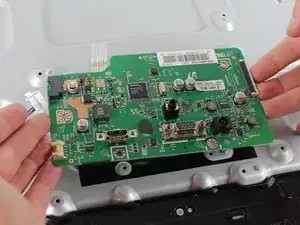

    • Using both hands, lift the board off of the monitor body by the motherboards base.

  8. nMaPTDNKQHgOlpQ1
    nMaPTDNKQHgOlpQ1
    xwPlaIoUU4kGjj1Y

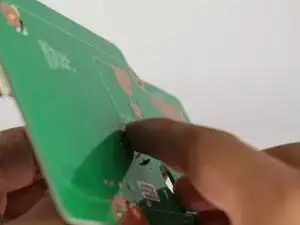

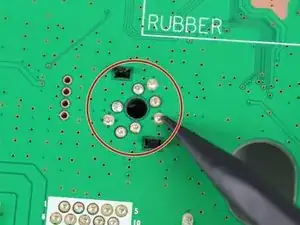

    • Desolder each of the indicated leads on the back of the motherboard.

  9. gKMM5FSfoqoOmoD5
    gKMM5FSfoqoOmoD5
    TIekLagS3NfiEVdv

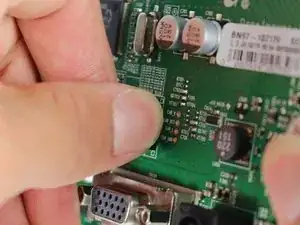

    • Squeeze the rear tabs located on the back of the motherboard with your thumb and index finger.

    • While squeezing both tabs, pull the audio jack out from the front of the motherboard.

    • The audio jack may be too hot to touch right after desoldering.

Abschluss

To reassemble your device, follow these instructions in reverse order.
