Samsung 27E510C Power Adapter Port Replacement

Schwierigkeitsgrad

Difficult

Schritte

9

Zeitaufwand

5 - 10 Minuten

Einleitung

The power adapter port allows power input to the display. The port may need to be replaced if trying a new power adapter cable does not fix display issues.

  1. UJiTggQWHYuvvvK6
    UJiTggQWHYuvvvK6
    3BcbwPZ5foxV2Tjo
    CLKqqyxVDD2hgu4U

    • Use the #1 Phillips head screw driver to remove each 13.75mm length screw from the rear panel.

    • The screw alone with the ports is a different size than the rest, its length is 12mm.

  2. YWHirDGt2l4EUIGF
    YWHirDGt2l4EUIGF
    rhXToE3keAAyumZ2

    • Insert the heavy duty spudger in between the monitors back panel and its frame.

    • Use the heavy duty spudger to pry open the back panel.

    • Over aggressive prying could break the tabs holding the back panel in place.

  3. TaNFRP3ngRONKitW

    • Remove the navigation button connector by pulling while holding down its thumb tab.

  4. buKIIfiMZAB2YXFX

    • Remove the screen connector by gripping its sides and gently pulling while wiggling back and forth.

  5. MqkYV4yLOpF1ZH5w
    MqkYV4yLOpF1ZH5w
    mIkcrZYbZ6kTxH4U
    niDYnEXCCenc1rNV

    • For the ribbon cable, Lift the tab from the side facing the inside of the mother board with your fingernail or a spudger.

    • Remove the cable by pulling while lifting slightly.

    • If the cable does not come out easily, than the secure tab may not be fully opened.

  6. Wc2qStTUgxCQWcNn
    Wc2qStTUgxCQWcNn
    fVOUVeiqKRRcC1ik
    V2iEsHbJQBCLc1RG

    • Remove each of the 5mm length screws attaching the motherboard to the body of the monitor using a #1 Phillips head screwdriver.

  7. H5TWfCfsJxf43YQj
    H5TWfCfsJxf43YQj
    2fch62SkbXkHIOJo

    • Using both hands, lift the board off of the monitor body by the motherboards base.

  8. NxmFXGCyRSTFfdK2
    NxmFXGCyRSTFfdK2
    EtOGKMbTZVmvMcfu

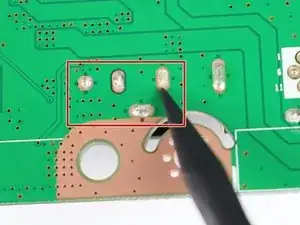

    • Desolder the indicated leads on the back of the motherboard.

    • The power adapter port should fall out of the board after the solder is removed.

  9. 3osxyvxRnCZBYnfZ

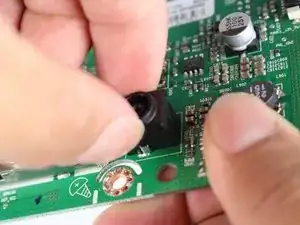

    • If the power adapter port does not fall out of the board, try tugging on it with your hand.

    • The power adapter port may be too hot to touch right after desoldering.

    • Excessive tugging could damage the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
