Samsung Galaxy S4 Mini Screen and Digitizer Replacement

Geschrieben von: Richard Suovanen
  • Kommentare: 9
Samsung Galaxy S4 Mini Screen and Digitizer Replacement

Schwierigkeitsgrad

Moderate

Schritte

20

Zeitaufwand

30 Minuten

Einleitung

This guide will provide instructions on how to replace a cracked or damaged AMOLED screen and digitizer assembly on your Samsung Galaxy S4 Mini.

  1. FrPUpDnOnCEllBAM

    • Press and hold the END key to power the phone down.

  2. dpWKh4PkdPKCTGTg

    • Remove the back cover of the cell phone using a plastic opening tool.

    The LEGO Brick Separator (https://www.lego.com/en-us/service/brick...) also works perfectly if you don’t have the iFixit Opening Tool handy.

    Håvard Haugen -

  3. D3REkBkgRvtMbfhf

    • Pry the battery out using a plastic opening tool.

    Vai s4 mini motherbotd paua jay

    atik.pgm -

  4. TgqeTYhAGyomhp3u
    TgqeTYhAGyomhp3u
    tBBAxupNUgBWgmPr

    • Using tweezers, remove the SIM card by sliding it towards the bottom of the device.

  5. n5mOqZoNe6olZ6r3

    • Using a nylon spudger, push through the hole at the top of the memory card holder to slide it out.

    Does “slide it out” refer to memory card holder or the memory card itself?

    Mikko Rantalainen -

    Photo useless. Cannot see where “hole” is.

    Brian Gilkes -

  6. 52pxlDjwRCee5fUd

    • Remove the 10 4.0 mm Phillips screws on the back of the phone using the #00 Phillips screwdriver.

    • Not needed, but Tweezers can be helpful in removing the screws from their holes, as their size makes removal a tad difficult.

  7. bX1HVERnf34IMKoy

    • Starting at the USB port, slide a plastic tool around the perimeter of the phone between the rear housing and frame. As you work your way around the edge you will feel the clips release.

  8. WnKkekWbFfE23jQR

    • Carefully separate the rear housing and the mid-frame to reveal the inside of the phone.

  9. FyD6A2GTuZDDKVLB

    • Remove the 2 flex cables shown that attach to the USB board, Tweezers can be especially helpful here.

    Attention! Some Models have also an Cable on the right side for the 3G-Module. Also this have to be removed. In this case the Module is also bigger and fixed with 2 tapes.

    Maxi -

  10. PlNCjQIuTUwyhGBr

    • Gently pry underneath the charging port using the plastic opening tool to separate it from the double sided tape below.

  11. EwOuBMO1l6bYM4Ea

    • Once its released, gently lift the main board and remove the USB board containing the charging port.

  12. RNMlZPNFGvEeyEtG
    RNMlZPNFGvEeyEtG
    wI2PxKuoTMlgPVna

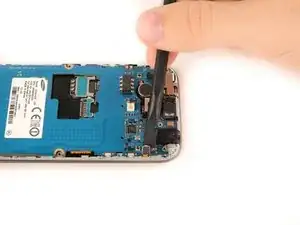

    • Use the flat end of a nylon spudger to lift the headphone jack press-fit connector up to release the ribbon cable.

  13. cYTFe26tEKTxMRWf
    cYTFe26tEKTxMRWf
    LstQvZl2eyd4WCQQ

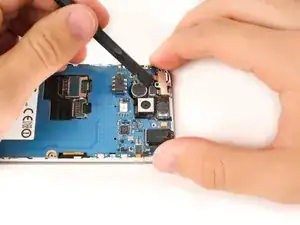

    • Use the flat end of a nylon spudger to lift the infrared sensor press-fit connector up to release the ribbon cable.

  14. FujRgWNUEPJaKOof
    FujRgWNUEPJaKOof
    SHv1jExidkoFGHuW

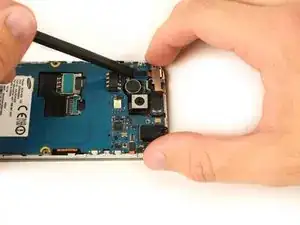

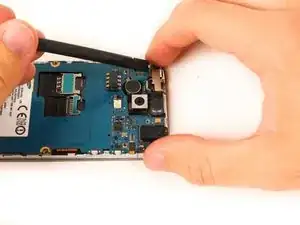

    • Use the flat end of a nylon spudger to lift the front-facing camera press-fit connector up to release the ribbon cable.

  15. tnOcEKAlUaav2IIu
    tnOcEKAlUaav2IIu
    6T1WYAcwwI4tfDxi
    5mqjGxYo2DML2qI3

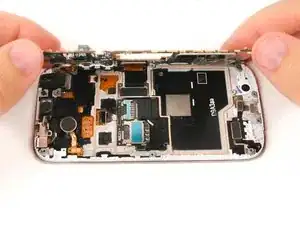

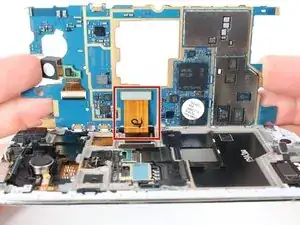

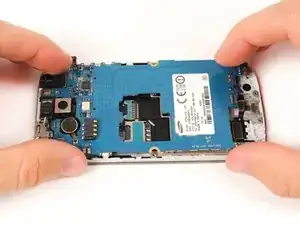

    • Gently lift the motherboard up and partially away from the device.

    • The digitizer ribbon cable is still attached to the underside of the motherboard.

  16. qKKZZQHACEovQ4ew
    qKKZZQHACEovQ4ew
    oVfVKAPFHme5vsTf

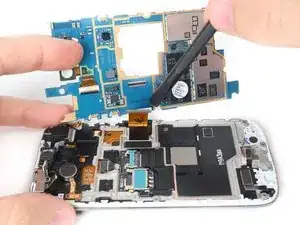

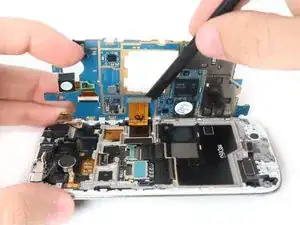

    • Put the flat end of a nylon spudger under the lip of the digitizer press-fit connector and lift up to release the connector and free the motherboard.

  17. w3ZAPMXg4wXxPkXA

    • Use a heat gun or an iOpener to soften the adhesive underneath the perimeter of the screen.

  18. rsL5mJMQVUwr1LAM
    rsL5mJMQVUwr1LAM
    ZGIwVtnOAWITOOSS

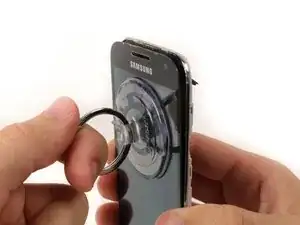

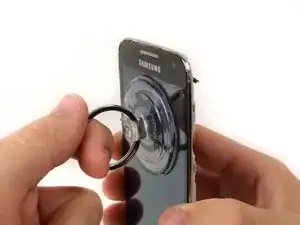

    • Use a suction cup to pull the screen away from the frame and create a small gap.

    • This should not require excessive force. Apply additional heat as needed to soften the screen adhesive.

    • Cover the screen with a layer of packaging tape if severe cracks or screen damage prevent a suction cup from obtaining a complete seal. The Galaxy S4 Mini also has enough of a gap between the frame and the screen to insert a jimmy or plastic opening pick. Carefully apply heat as needed, and wedge the screen free.

  19. KkLPXQCMCYA5uW1J
    KkLPXQCMCYA5uW1J
    2MrWKfBVDYrHLXkA
    GgKCHLhgdls2OPT5

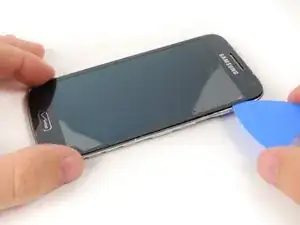

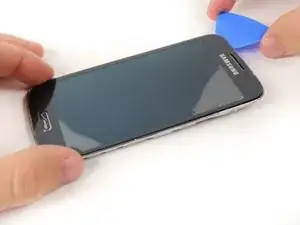

    • Insert a plastic opening pick into the gap between the screen and the plastic housing.

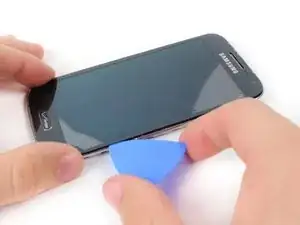

    • Slide the plastic opening pick along the edge of the screen to free the screen from the adhesive.

  20. eXWfFtK5514kMdj2
    eXWfFtK5514kMdj2
    bds1f5qNjCxqgymQ
    HN5JkIHhJnMolIwq

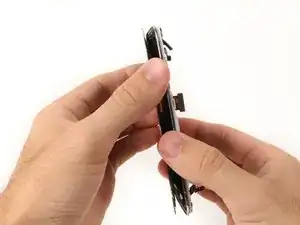

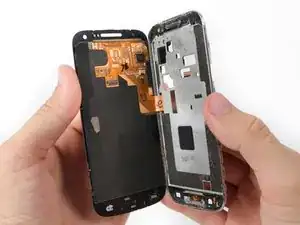

    • Remove the LCD screen and digitizer assembly completely.

    • Feed the digitizer ribbon cable gently through the frame.

Abschluss

To reassemble your device, follow these instructions in reverse order.
