Samsung Galaxy SIII Mini Camera Failed Troubleshooting

Geschrieben von: ZFix
  • Kommentare: 3
Samsung Galaxy SIII Mini Camera Failed Troubleshooting

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

We will show you how to fix your phone if you have message "Camera failed".

There are 5 steps to solve this problem.

After each step, check that your camera works.

If not - go to the next step.


________________________ Video tutorial: ________________________

  1. 3GBfScFwd1Lvotfo
    3GBfScFwd1Lvotfo
    BCLmJjcWMrInvS12
    PAC3uDvtJAWIECYB

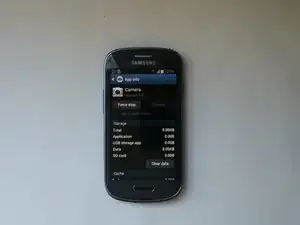

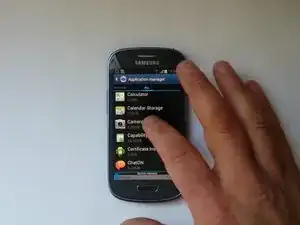

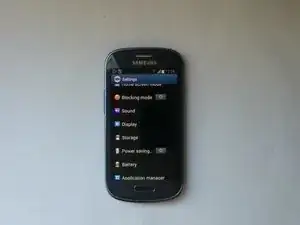

    • Go to:

    • > Settings

    • > Application manager

    • > All

    • >Camera

    • Clear data and cache and check that the camera works. If no, go to the next step.

  2. awQUsFUeFccXSXuU
    awQUsFUeFccXSXuU
    BCMbVq3FSM5dEi5C
    nQAvSByZ14LuSOyj

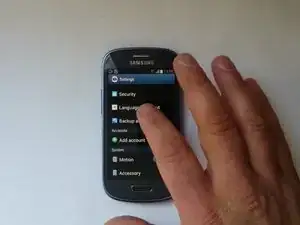

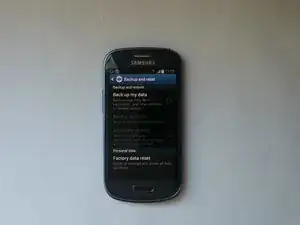

    • Go to:

    • > Settings > Backup and reset

    • > Factory data reset

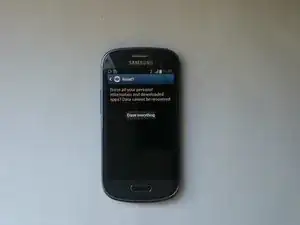

    • > Reset device > Erase everithing

    • !!! This will erase all your data !!!

    • For a Hard reset using hardware keys, follow this manual:

    • Samsung Galaxy - Wipe data/Factory reset

  3. QOJeuYKaIFJjlags
    QOJeuYKaIFJjlags
    xxhsePBwYhe6ymf3
    AgyKDTO1mESsjbIM

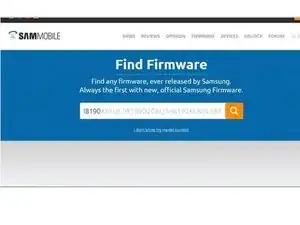

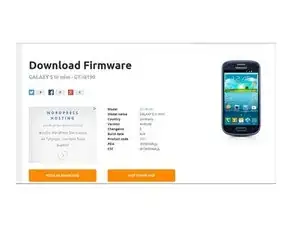

    • Open sammobile and make an registration.

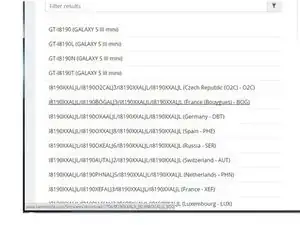

    • Search the firmware for your model and find the variant, corresponding to your mobile phone.

    • You can see the variant from Settings > About the device, or from dialer app by entering *#1234#

    • In the download page you can find instructions and link to the Odin app.

  4. K2aLlFqeohmLoUNT
    K2aLlFqeohmLoUNT
    OxRZluB65xCYgx4N
    MKRBUlS6y5uJbcNG

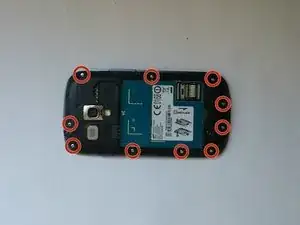

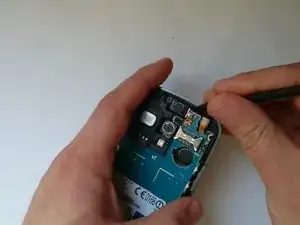

    • Switch off the phone and remove the battery and any SIM and memory card.

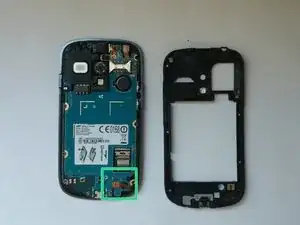

    • Remove the Midframe.

    • Disconnect the Menu buttons and the SD card reader flex cables.

    • Lift the board slightly to the left side and be careful with the earpiece and the main camera - they are stuck to the Display frame.

  5. DmyWs5QLybWaeYTA
    DmyWs5QLybWaeYTA
    3yDsYhBDeNETEGjB
    DZatjIYBxhpo5ZRf

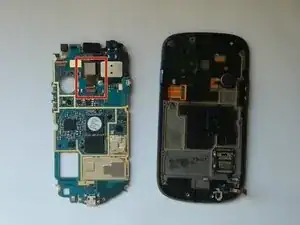

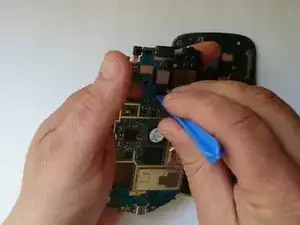

    • Disconnect the LCD Display flex cable.

    • Open the camera flex cable connector and reconnect the camera.

  6. TI4ZUAqtZvgXvLhA
    TI4ZUAqtZvgXvLhA
    dBa2eqhGF6dpe6MO
    P6shcYQbak1kRfhN

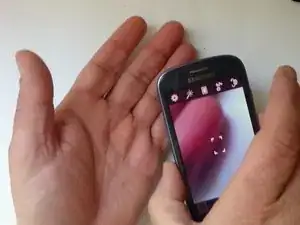

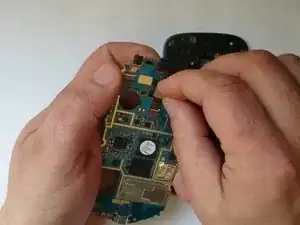

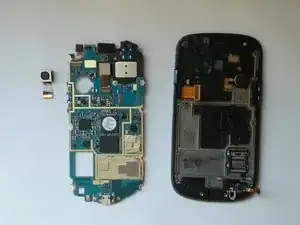

    • If the camera still does not work, the last step is camera replacement.

  7. dXXgTXkfUYCLNw5Q

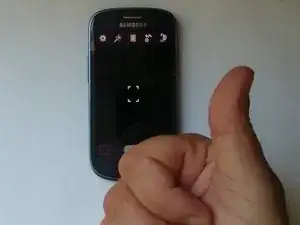

    • Did you do it successfully?

Abschluss

To reassemble your device, follow these instructions in reverse order.
