Use this guide to replace the bottom-left loudspeaker in your Samsung Galaxy Tab S7+.
This is a prerequisite-only guide! This guide is part of another procedure and is not meant to be used alone.
-
-

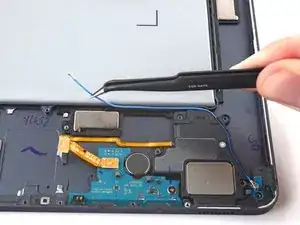

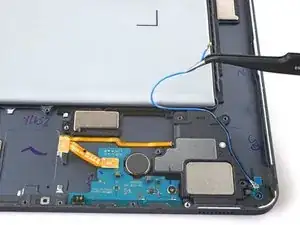

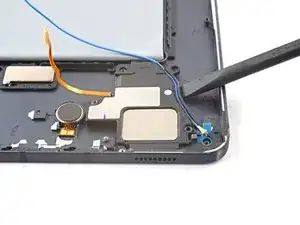

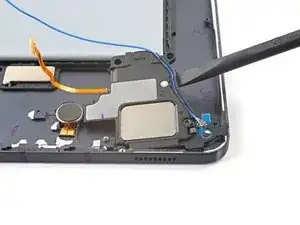

Pull the bottom-left coaxial cable away from the frame, making sure the cable is completely unthreaded from the frame.
-
-
-

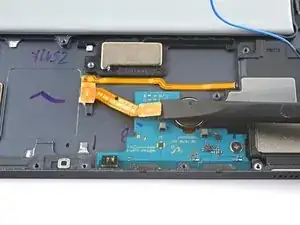

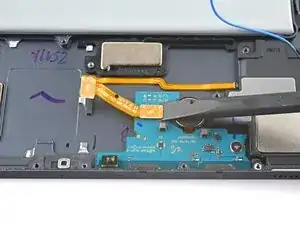

Use the flat end of a spudger to pry up and disconnect the antenna board's interconnect cable secured to the antenna board.
-
Use tweezers, or your fingers, to remove the cable.
-
-
-

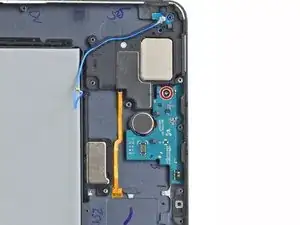

Use a Phillips 00 screwdriver to remove the 2 mm screw securing the antenna board to the frame.
-
-
-

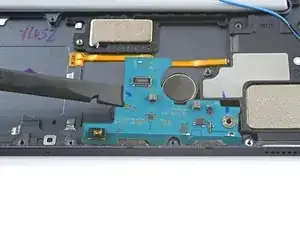

Insert a spudger into a gap between the antenna board and the frame.
-
Pry up with the spudger to separate the antenna board from the frame.
-

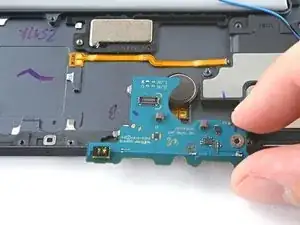

Remove the antenna board.
-
-
-

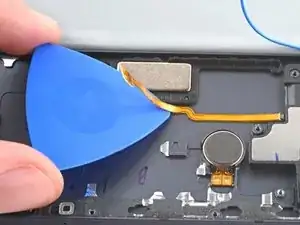

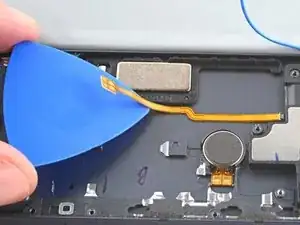

Insert an opening pick between the bottom-left loudspeaker's copper connector pads and the frame.
-
Pry up while slicing the adhesive to separate the pad from the frame.
-
-
-

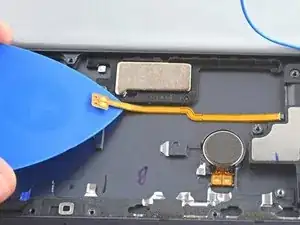

Slice with the opening pick along the bottom of the connector's cable to completely separate it from the frame.
-
-
-

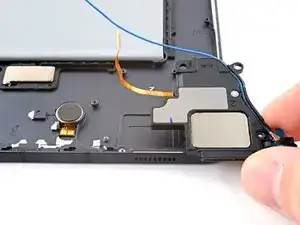

Use a spudger to pry up and separate the loudspeaker from the frame.
-
Remove the loudspeaker.
-
To reassemble your device, follow these instructions in reverse order.
