Samsung NP700Z5AH Fan Replacement

Geschrieben von: Erik

Kommentare: 4

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

5 - 15 Minuten

Einleitung

This guide provides details on how to remove a dirty or broken fan from the Samsung device.

Werkzeuge

Schritt 1

Remove the ten 6.6mm Philips#00 screws securing the lower case to the upper case.

Schritt 2

Using your fingers, pinch the edge of the SD card and pull to remove it.

Schritt 3

Wedge your fingers in between the upper case and the lower case
Gently pull the lower case away from the upper case to remove it

Schritt 4

Using tweezers or your fingertips, carefully pull on the battery connector to disconnect it from the motherboard.
Be sure to pull straight backwards, or you risk damaging the wires.

Schritt 5

Remove the two 4.4mm Phillips#00 screws from the battery case.

Schritt 6

Place your fingers on the corner sections of the battery.
Lift to remove the battery.
If you choose to use tools to remove the battery be careful not to damage it. A damaged lithium-ion battery may leak dangerous chemicals and/or catch fire. Use only plastic pry tools.

Because the battery is held down by clips at the front, i found it necessary to remove the four screw holding the hard drive to the right so that i could slide the battery to the right (indicated by the arrow on the battery) and out from under the clips.

Chip McConnaha - 06/01/18

Hey there Chip! Thanks for the comment! We were probably able to remove the battery without touching the hard drive because the laptop used to make this guide was damaged inside and out. I hope your new battery is running smoothly. Happy fixing!

-Erik, Hannah and Annissa

Erik - 08/01/18

This is what I was looking for. My battery was partially out of the clips as a result of me tossing it, it came out easy but when I went to put it back in place it wouldn't slide in. I kinda “helped” it with out removing the HD. My optical drive isnt working so I have to take it apart again. It will super easy now with the added instruction. Thanks dude!

Dan - 04/07/18

What is the Replacement battery number! hard to find

Avery Jackson -

Schritt 7

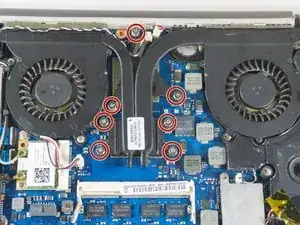

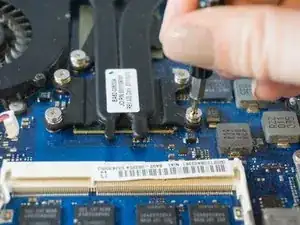

Loosen but don't remove the 7 silver Phillips #00 3.5mm screws securing the fan to the motherboard. They should detach from the motherboard and remain attached to the fan assembly.

Schritt 8

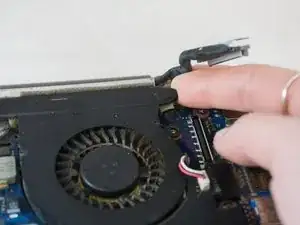

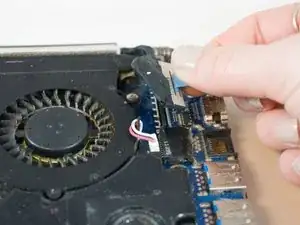

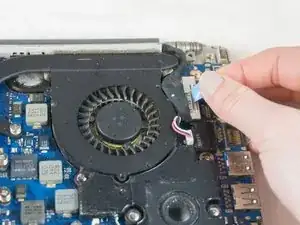

Using your fingers, grasp the blue ribbon on the fan connector and pull straight up to disconnect it from the motherboard.
To reinstall the cable, hold it near the end and push it straight into the connector, being careful not to kink the cable.

Schritt 9

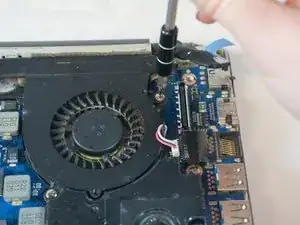

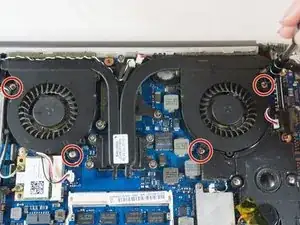

Using the Phillips#00 remove the four 3.5mm screws securing the fan to the motherboard.

Schritt 10

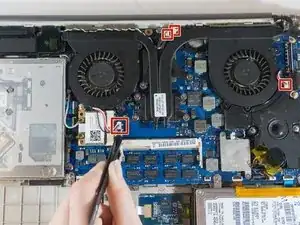

Using tweezers, carefully pull up on the four power cable connectors to disconnect them from the motherboard.
These connections were originally soldered and will need a small drop of solder to be re-attached. Use this guide to learn Wie man Lötverbindungen herstellt und entlötet

Schritt 11

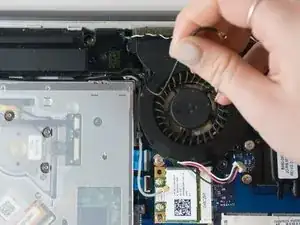

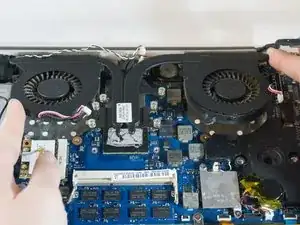

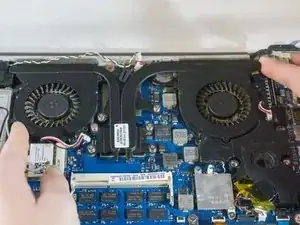

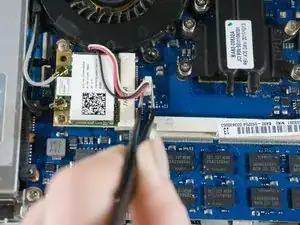

Place the tip of the spudger under the metal caps of the black and grey coaxial connectors and pry upwards to disconnect them.
After they are disconnected, un-thread them from around the fan.
To reinstall, hold the connectors in place and gently press them straight down. The connectors “snap” into their sockets much like the metal snaps on a jacket.
