Samsung NX Mini Disassembly

Geschrieben von: Kelsea Weber
  • Kommentare: 6
Samsung NX Mini Disassembly

Schwierigkeitsgrad

Moderate

Schritte

28

Zeitaufwand

Keine Schätzung

Einleitung

This guide gives you a look at the major components of the Samsung NX Mini and provides complete disassembly instructions.

We highly suggest you use a magnetic project mat or an organization tray. This camera has many different types of screws and keeping them organized is key to proper reassembly.

  1. psgCIinb2HQMroHV
    psgCIinb2HQMroHV
    6yv6OFRTRWGjJuDq
    LZkXwqCYcOK1XgtX

    • Orient the camera so the button panel and LCD are facing you.

    • Use a spudger or fingernail to open the battery compartment on the right side of the camera.

  2. NOJqRWLyWWHfIedp
    NOJqRWLyWWHfIedp
    PGw5WQLbd5UsU1ZT

    • Push the blue trapdoor to the left to release the battery, and remove the battery.

    • There is no battery shown in this photo.

    my battery is stuck, is there a manual release button or a way to remove the battery safely?

    beat70 -

  3. usF2HdXjipSkAu65

    • Use a Phillips #00 screwdriver to remove the 4 mm screw inside the battery compartment.

  4. FBhJCXxOCVoKTGgA

    • Remove the 4 mm Phillips #00 screw hiding in the external flash port.

    You don't show us how to remove the top plate

    Bev Curran -

  5. RQypSEK2pdXYyDFf

    • Remove the four 5 mm Phillips #00 screws from the lens assembly.

  6. 52UiRHqVkOYpBNq3

    • Remove the metal lens mount by hand or with tweezers.

    • Be careful not to touch the sensor in the center of the lens assembly.

  7. fuT3A4bYWYT26OFe

    • Use tweezers to remove the inner metal ring.

  8. n3eyKKDHKE1x6WVH

    • Use a Phillips #00 screwdriver to remove the three 4 mm screws from the bottom of the case.

  9. lhXCW5uEdZpJbVWT
    lhXCW5uEdZpJbVWT
    HYEglwV2lN5kAHBD

    • Use your hands to slowly pull the front casing away from the camera.

    • The case is attached with multiple clips that may make a cracking noise as you pull it away from the camera.

  10. 5bxPsdobXUhXKRG2
    5bxPsdobXUhXKRG2
    LeBurhyDnv546y4G
    w4jU2XYShyWsFPjy

    • Gently flip the sensor cover back to expose the screw attaching the sensor cover to the ribbon cable.

    • Use a Phillips #00 screwdriver to remove the 3 mm screw from the sensor cover.

    • Use tweezers to remove the metal contact cover. Be sure to carefully remove the cover so the gold contacts remain in place.

    • The gold lens contacts lying beneath the ribbon cable become loose when the screw and contact cover are removed.

  11. OAgp2SpqopONw5nV
    OAgp2SpqopONw5nV
    O6GLTONJMbJMiDjP

    • Remove the four 4 mm Phillips #00 screws holding the sensor mount in place.

  12. n1EoBerVgoxK5nKQ
    n1EoBerVgoxK5nKQ
    saZACwfTUYYCVJji
    XCqZmVyZQmvHGwpB

    • Remove the four 4 mm Phillips #00 screws securing the battery compartment to the mother board.

    • Remove the battery compartment.

  13. BWBfAHN2uTvO12Nn
    BWBfAHN2uTvO12Nn
    JlkgIVtduVg4jcJi

    • Use a spudger to disconnect the ribbon cable connecting the image sensor to the motherboard.

  14. TSGKI1XrLKOSBQoc

    • Gently remove the sensor mount from the camera case.

  15. f3NvCSZMJTo61HY5
    f3NvCSZMJTo61HY5
    HvVh1jtvKNJfDfx6

    • Use a Phillips #00 screwdriver to remove the 3 mm screw located below the wifi antenna.

  16. MAOq1wNDFVrT1QuP
    MAOq1wNDFVrT1QuP
    AjPnAEhCZLGIFhni

    • Use tweezers to disconnect the wifi antenna from the motherboard.

  17. kQcBKKrglwduMYPs
    kQcBKKrglwduMYPs
    MFJmTRa4FBiciely
    6u6bDXMYZ5NpN3D3

    • Use a spudger to disconnect the LCD ribbon cable by prying it straight up from the motherboard.

  18. rZCJJwwGccIcgbGj
    rZCJJwwGccIcgbGj
    BGAwJj6qUXJR3BaA
    PHkHqOcr4rYsNlHJ

    • Use a spudger to unlock the topmost ZIF connector by flipping open the black flap.

  19. i3p4bTn2iQ3bjXZh
    i3p4bTn2iQ3bjXZh
    3pVnYnkKlFdU2cUy

    • Insert the pointed end of a spudger into the hole in the middle of the ribbon cable.

    • Gently pull the spudger back to slide the ribbon cable out of its connector.

  20. fLFvgEBZq4dMUiGr
    fLFvgEBZq4dMUiGr
    a4bTRDcNmyGifnXR
    SriCGaiZvXt1oFdP

    • Disconnect the blue ribbon cable from the motherboard.

    • Insert the pointed end of a spudger into the hole in the top of the ribbon.

    • Gently pull the ribbon from the connector.

  21. YBbWlZieEx1ELIIC

    • Remove the motherboard from the camera.

  22. Rg1rswSVMUUdslBq
    Rg1rswSVMUUdslBq
    WEtAMOwqUMT6N36T
    QNc6PZkOf6QY3LQT

    • Use a Phillips #00 screwdriver to remove the two 5 mm screws holding the flash assembly to the camera case.

  23. kDSKc4UZ6EDbW2VV
    kDSKc4UZ6EDbW2VV
    nCGUwWBNCjIxJDUE

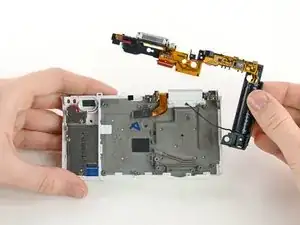

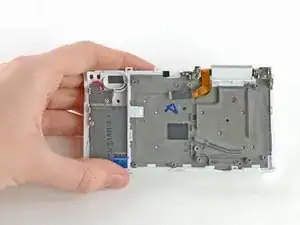

    • Remove the flash assembly by gently pulling it away from the case.

    • You may need to use a spudger to release some of the clips holding the assembly in place.

    • Avoid touching the ends of the capacitor (the large black cylinder on the right). Capacitors that haven't been discharged may cause electric shock. Learn how to discharge a capacitor here.

  24. E25dFlBqD3cuQWJY

    • Remove the three 4 mm Phillips #00 screws securing the button panel to the camera case.

  25. RQfho6FxhKinS3L1

    • Use tweezers to lift the button panel cover away from the case.

  26. xtKGCCAgWRU3oLWx

    • Remove the 5 mm Phillips #00 screw in the top right corner of the LCD assembly.

  27. ira5mnDbUNnEq22p
    ira5mnDbUNnEq22p
    rDJ3VTHDrtOrPhY3

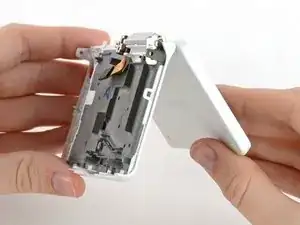

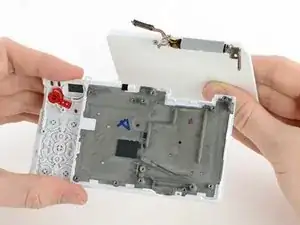

    • Tilt and wiggle the LCD to remove it from the case.

  28. MIsyaoMnKoPklZQP

    • You have disassembled the Samsung NX Mini!

    • The capacitor can be removed from the flash assembly by desoldering. Learn about soldering techniques here.

Abschluss

To reassemble your device, follow these instructions in reverse order.
