Samsung WB35F Flash Capacitor Replacement

Geschrieben von: Sarmad Khan
  • Kommentare: 0
Samsung WB35F Flash Capacitor Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 - 30 Minuten

Einleitung

This guide will give user step by step instructions on how to replace the flash capacitor of the camera.

  1. iYNvlnHY1BAxiwEf
    iYNvlnHY1BAxiwEf
    FYYR2aRAJFHgwTnN
    hb2NhSocZoerv2p2

    • The first thing to do will be unscrew all the screws using Phillips #000 Screwdriver.

    • Keep all the screws in order. Black screws goes under the bottom of camera, and the silver screws goes on the sides and inside of the camera.

  2. C3o4dXkeBdTomYmT
    C3o4dXkeBdTomYmT
    WUG2XUoQ2dWoowCn

    • Using the spudger, and plastic opening tool open the casing of camera.

  3. ga33NGWX2VNjOAEE
    ga33NGWX2VNjOAEE
    YuZbxnofqJkyAHiv
    GKVtJkqEOKWtUE2E

    • Once you open the camera case, you will be able to work on any part of the camera.

  4. xwZusrVyIF4hFNnk
    xwZusrVyIF4hFNnk
    IZXWPFLYMpQMgeBF

    • Caution: Touching the capacitor wires may cause serious injury. Use a capacitor discharge probe to safely rid the capacitors of dangerous charges.

    • Carefully take out the capacitor using the spudger.

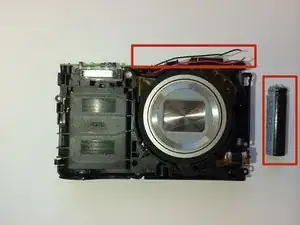

  5. OSEJlJ4ocJ6cZTcx

    • Disconnect the wire from battery and replace the old battery with new battery.

    • Connect the wires to new battery and put the battery back in terminal.

    • Connect the positive wire to the positive terminal of the battery and negative wire to the the negative terminal of the battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.
