Screen Replacement

Geschrieben von: Walker Karstens
  • Kommentare: 0
Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

20 - 30 Minuten

Einleitung

This guide will walk through the process of removing the screen. This guide has a large number of steps due to the need to remove the motherboard from the device before the screen will be accessible. Double check the tools needed for this guide as soldering is necessary for this disassembly.

  1. IrcQWTxERPosZSlt
    IrcQWTxERPosZSlt
    vkKA5sL6SLSkPITk
    35btdGJJFMj5EOes

    • Insert the plastic opening tool into the middle of the bottom edge of the device. The tool should be inserted within the seam between the back and front covers.

    • Slide the opening tool to the right and slowly continue to separate the back cover from the device.

    • Avoid prying on the buttons, as they are easily damaged.

  2. JCsdKRXWgajHRQKG

    • Pull the cover off of the device once about three quarters of the cover has been pried open using the plastic opening tool.

  3. iB6CoiVkUA4BEGFD

    • Remove masking tape from the battery.

  4. oUPHtv1nUv4tvWJS
    oUPHtv1nUv4tvWJS
    ovaBhl3KrgKlsVEv
    TNtFiuGwTXGJGVaQ

    • Pry the battery from the base using the nylon spudger and move it away from the motherboard.

    • Handle the battery with care to avoid damaging it.

  5. uFFPh5ig1SQyLp3d
    uFFPh5ig1SQyLp3d
    1GmvxCseEZTeRQBo
    XwuV2cOhspbF6qFR

  6. DamSMHaX4R5ZKGQo
    DamSMHaX4R5ZKGQo
    W1PUNANoJJH1Y2oM
    mVrZAuUIYAGMfsCR

    • Remove the two ZIF connectors attached to the motherboard by flipping up the black tabs before pulling the ribbon cable away.

    • Only use a fingernail or nylon spudger to flip up the retaining flap. Using metal tools may damage delicate components.

  7. BMGWwQBN3utNPWEF

    • Use the nut driver and J00 bit to remove the three 4 mm screws.

  8. ZfNyJHbu61TgMFas
    ZfNyJHbu61TgMFas
    bgsUoWxUrGlOb4iB
    WYcvLAJVhLAUrlve

    • Peel back metal tape that is hiding the auxiliary port wires.

    • Remove tape that is holding the speaker wires in place.

    • Lift up on the motherboard to release it from the tablet.

  9. oWQQrIDFQGsTy3HF

    • Use the nut driver and the J0 bit to unscrew the four 4 mm screws

  10. vKuGxBXgfmsoydOo
    vKuGxBXgfmsoydOo
    SrxkTkpQdiGxOMST

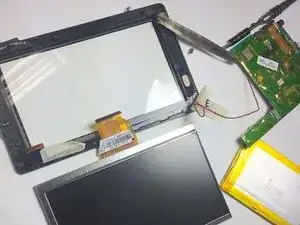

    • If your are replacing a broken screen be careful when handling broken glass.

    • Remove the screen from the front cover of the device. At this point there should be no other component holding the screen down.

Abschluss

To reassemble your device, follow these instructions in reverse order.
