Sega Dreamcast GD-ROM Replacement

Geschrieben von: Thorr686
  • Kommentare: 1
Sega Dreamcast GD-ROM Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

10 Minuten

Einleitung

This guide details how to replace a failed GD-ROM drive with a new working drive.

Be sure to replace the GD-ROM with one corresponding to your model number. Refer to the Top Cover Disassembly Guide for instructions on where to find your model number.

Problem with this guide: The photos incorrectly show the power supply has been removed.

  1. rdFJlNVwMtT3hJRD
    rdFJlNVwMtT3hJRD
    BGojrPldMPBm4Yew

    • Verify that the console is disconnected from the AC outlet before you begin.

    • Flip the console over on its back.

    • Take note of your model number, in case replacement parts are needed.

  2. HDbDfaw3TOGBMCHi
    HDbDfaw3TOGBMCHi
    b12VKhkOV53BrRt3
    ZxvUK2uvuTY4pH1H

    • Remove the expansion bay by applying pressure to the small clip on the expansion bay while prying it away from the console.

  3. j4mn2GW3UHoTNIAH

    • Locate and remove all four black 12mm Phillips #02 screws from the underside of the console.

    • Note: Remove the expansion bay to locate the fourth screw

  4. KGQFrciudkmBDQJX

    • Internal components can be loose. Be careful that they do not fall out when removing the cover.

    • Turn the console right side up.

    • Remove the top cover by gently lifting the upper portion of the console.

  5. UqnkwsEhKXEaDccZ
    UqnkwsEhKXEaDccZ
    WCnVuvsLWJUYqnId

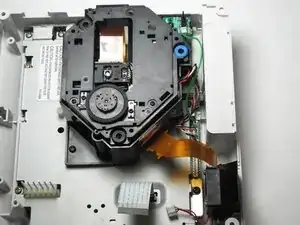

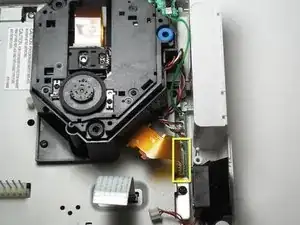

    • Detach the orange cable by giving it a gentle pull while wiggling the cable back and forth until it loosens from the logic board.

  6. ms2ncVxe2h4NQsNb
    ms2ncVxe2h4NQsNb
    TUZoEl54cKfFU6EM

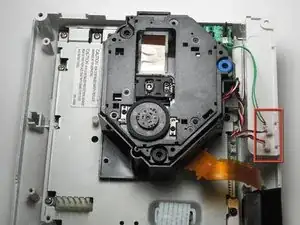

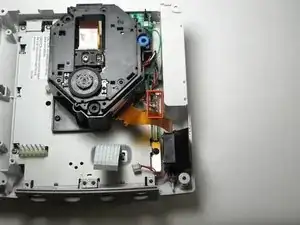

    • Detach the cables by gently pulling the three GD-ROM cables to remove them from the logic board.

  7. P6mDmXfpjHs3QMpt
    P6mDmXfpjHs3QMpt
    noSoOLAmlYwJyxMN

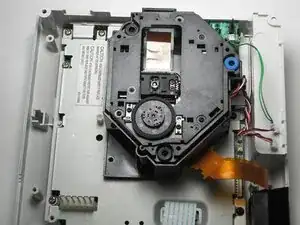

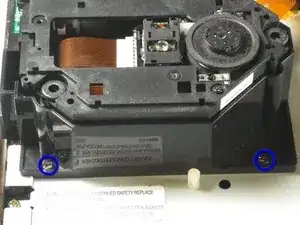

    • Remove the two black 12mm Philips #02 screws located on the left side of the GD-ROM bracket.

    • The console is rotated 90 degrees counter-clockwise in the first photo. The second photo depicts the normal position.

  8. S65eQ5lEBJeGT5aj
    S65eQ5lEBJeGT5aj
    rFmcoWxRScGUCISp

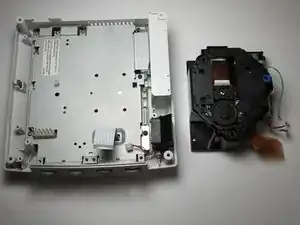

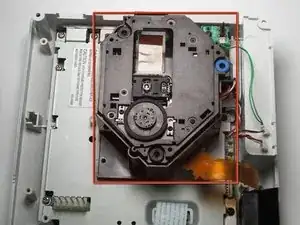

    • When lifting the GD-ROM, be careful that the top half of the casing does not detached from its base.

    • Remove the GD-ROM by gently lifting it from its base.

  9. kiMF4YjoScW5Fhu3
    kiMF4YjoScW5Fhu3
    CjOsojBPrleUesTo

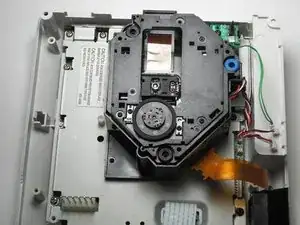

    • Replace the bad GD-ROM drive with a functional one.

  10. hLbhRpGfLgBrZ3G3
    hLbhRpGfLgBrZ3G3
    fNpWmricEHFwRpPI

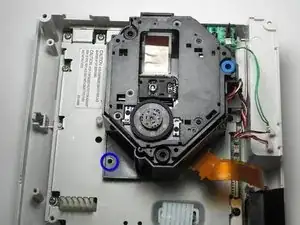

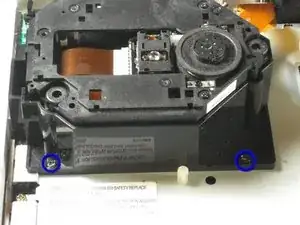

    • Secure the new GD-ROM drive to the console with the Philips #2 screws.

  11. jSR5BclhKHUpR41b
    jSR5BclhKHUpR41b
    ZQy5KIHJFmF16BPH
    byjRXnO3mfeGVK1G

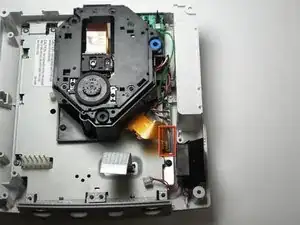

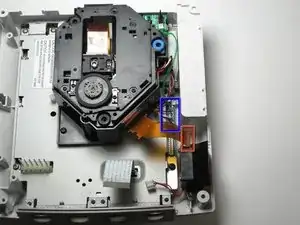

    • Connect the three GD-ROM cables to the logic board.

    • Connect the GD-ROM data ribbon to the logic board.
