Shark Flex DuoClean LED Headlight Replacement

Geschrieben von: Samantha Mickelson
  • Kommentare: 1
Shark Flex DuoClean LED Headlight Replacement

Schwierigkeitsgrad

Difficult

Schritte

10

Zeitaufwand

15 Minuten

Einleitung

You may need to replace the LED lights if they do not flash when the device is turned on. To remove the motor, soldering skills are required. See this guide for soldering instructions.

  1. OTotc1BW1BuNABlm
    OTotc1BW1BuNABlm
    dEmbNd4ZkBJH6RGf

    • Open the garage door by sliding both of the release buttons away from you.

    • Lift off the garage door.

  2. LhQCDWh5s3xGQ1HK
    LhQCDWh5s3xGQ1HK
    DX2wX23HBOFnJq64

    • Remove the plastic screw covering using a metal spudger by pushing the sharp side into the crevice and prying the cover out.

  3. WWx2UIU6EuURFHwx
    WWx2UIU6EuURFHwx
    o4BH3LgOGsJYYaO4

    • Turn the T10 Security Torx screwdriver counterclockwise to remove the 15mm screw.

    I know it is absolutely essential to have a security bit on here to change the belt as you wouldn't want anyone accidently changing it.

    Deb Winters -

  4. FPTmsSwjZgykC2gN

    • Use the iFixit Opening Tool to pry the side of the vacuum open.

  5. kMgeIBnm6mSHKold

    • Remove the side component with your hands.

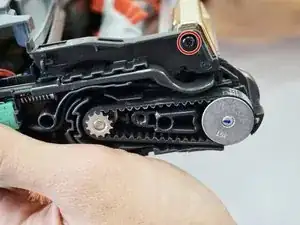

  6. 6CaJZHPPLR1Q4Q1w

    • Turn the T10 Security Torx screwdriver counterclockwise to remove the 15mm screw.

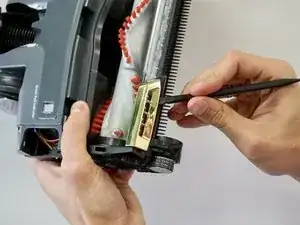

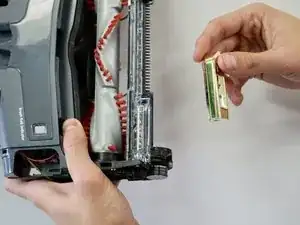

  7. OORJKwQnY1Flxxiw
    OORJKwQnY1Flxxiw
    yoXfdVwhHJn2Uexi

    • Use the nylon spudger to pry the gold, plastic cover off of the headlights.

    • Prying off the cover too aggressively may cause it to break.

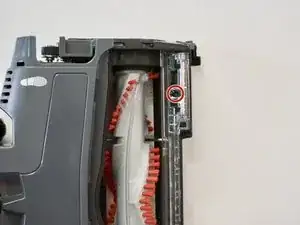

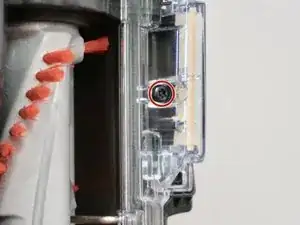

  8. 41ZoWpeeFvKXGVqt
    41ZoWpeeFvKXGVqt
    mPlLoHMspsaCs6rD

    • Turn the T10 Security Torx screwdriver counterclockwise to remove the 15mm screw.

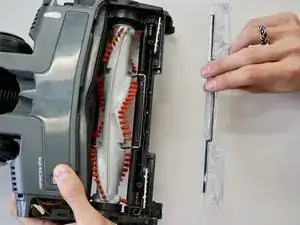

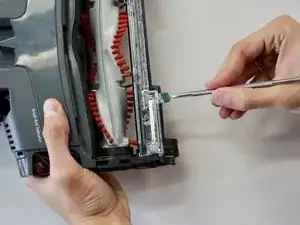

  9. BOaGe3STaDkGXVmG
    BOaGe3STaDkGXVmG
    gZMKK433YI6MQQTZ

    • Use the metal spudger to pry off the clear, plastic cover on the LEDs.

    • Prying the cover off too aggressively may cause it to break.

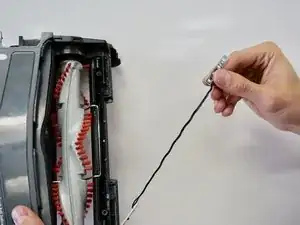

  10. wHYArAEpLqEbhWXP

    • Use wire cutters to detach the black cables from the LEDs on both sides.

    • Strip 1 cm off the ends of the wires, using a wire stripper.

    • Solder the exposed wires to the new LEDs.

    • Use the soldering guide in the Introduction.

Abschluss

To reassemble your device, follow these instructions in reverse order.
