Shark Flex DuoClean Motor Replacement

Geschrieben von: Samantha Mickelson
  • Kommentare: 9
Shark Flex DuoClean Motor Replacement

Schwierigkeitsgrad

Difficult

Schritte

10

Zeitaufwand

10 Minuten

Einleitung

If you need to replace the motor of your Shark Flex DuoClean, follow this guide. To remove the motor, soldering skills are required. See this guide for soldering instructions.

  1. OTotc1BW1BuNABlm
    OTotc1BW1BuNABlm
    dEmbNd4ZkBJH6RGf

    • Open the garage door by sliding both of the release buttons away from you.

    • Lift off the garage door.

  2. LhQCDWh5s3xGQ1HK
    LhQCDWh5s3xGQ1HK
    DX2wX23HBOFnJq64

    • Remove the plastic screw covering using a metal spudger by pushing the sharp side into the crevice and prying the cover out.

  3. WWx2UIU6EuURFHwx
    WWx2UIU6EuURFHwx
    o4BH3LgOGsJYYaO4

    • Turn the T10 Security Torx screwdriver counterclockwise to remove the 15mm screw.

    I know it is absolutely essential to have a security bit on here to change the belt as you wouldn't want anyone accidently changing it.

    Deb Winters -

  4. FPTmsSwjZgykC2gN

    • Use the iFixit Opening Tool to pry the side of the vacuum open.

  5. kMgeIBnm6mSHKold

    • Remove the side component with your hands.

  6. Mt1eH62XiXrrsaxJ

    • Remove the four 15 mm T10 screws on the underside of the vacuum.

    needed to remove 8 screws to get top off

    Martin Bell -

  7. OKDJWGsXX2nLDKNM
    OKDJWGsXX2nLDKNM
    rNPyPrFAboqIN1t2

    • Using the plastic spudger, pry the back seam of the top component to pop it off the vacuum.

  8. OPJTdSBvJgVnnCPu
    OPJTdSBvJgVnnCPu
    LOLoAX3QNWGKVkvr

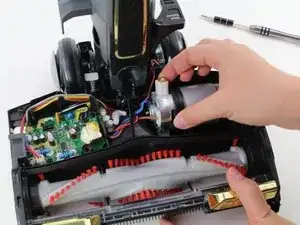

    • Orient the vacuum so you are looking down at the open garage of the vacuum.

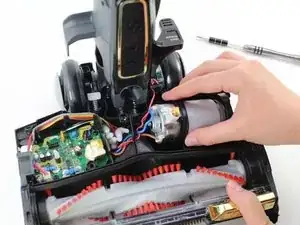

    • Using your right hand, rotate the top of the silver motor towards the brush roll of the vacuum so the motor fits through the opening.

    There are two screws holing the motor in place. You need to remove the belt first, and then the 2 pozidrive screws before you can

    remove the motor as per your instructions.

    pete Book -

  9. 5MMC14rLyDs3VPHI

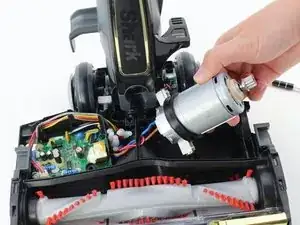

    • With both thumbs, push the gear on the right side of the motor into the vacuum. The motor should pop out.

    • Slowly pull the motor out of the vacuum base and reveal the electrical cords.

  10. cx6R1QKyxxjFoLUZ

    • To fully remove the motor, cut the wires.

    • For reassembly, use the soldering guide in the Introduction.

Abschluss

To reassemble your device, follow these instructions in reverse order.
