Shark Navigator Freestyle SV1106 Battery Pack Replacement

Geschrieben von: Zachary Liu
  • Kommentare: 8
Shark Navigator Freestyle SV1106 Battery Pack Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

Replace the battery when the vacuum does not turn on even after charging.

  1. 32HPTgfAIOc5yfDa

    • Turn the device over to reveal the bottom of the motorized brush head.

  2. 2vJcSlST6RNiKmVh
    2vJcSlST6RNiKmVh
    VVwfhc6WhMH1qfqA

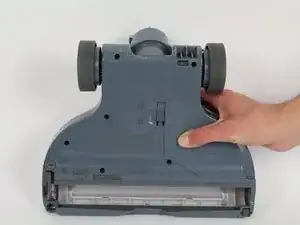

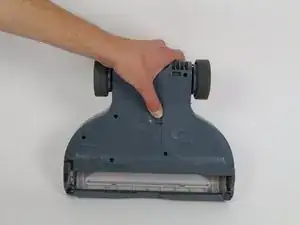

    • Slide the latch next to the panel upwards into the unlocked position.

  3. SPMKsEHGMLBx4wDr

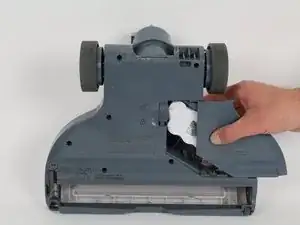

    • Slide the panel to the right to reveal the battery.

  4. Sp6ZJORXWXAVxvrr
    Sp6ZJORXWXAVxvrr
    to5dZgH5ZBiNKqnS

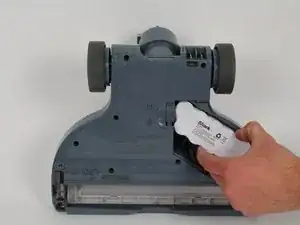

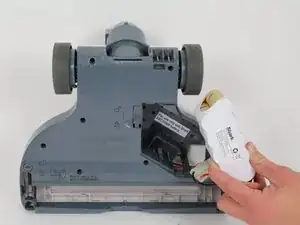

    • Pull the battery from the vacuum.

  5. Q1nP2p2r54GWDgMT
    Q1nP2p2r54GWDgMT
    U1BylfQKBoYVhuWA

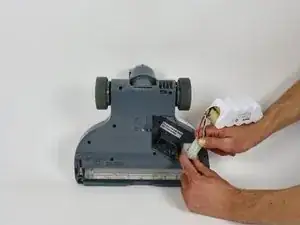

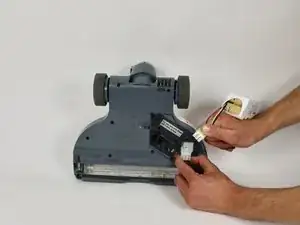

    • Disconnect the battery from the vacuum by pinching the white latch and pulling the two pieces apart.

Abschluss

To reassemble your device, follow these instructions in reverse order.
