Einleitung

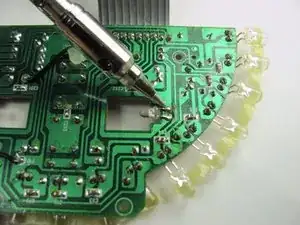

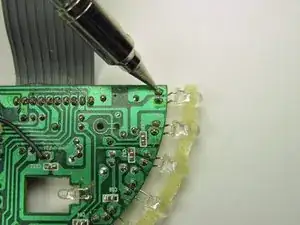

This guide will show you how to replace the LED lights inside the device. There is soldering required, so if you need assistant please read this soldering technique page.
Werkzeuge
-
-
Gently position the device so that the buttons and speakers lie face down.
-
Unplug the power cord from the "DC Input."
-
-
-
Remove the four 12mm phillips head #2 screws located along the outer edge of the white case.
-
Once you remove the screws, pick the device up so that the grey label on the bottom of the device faces toward you.
-
With your thumbs on either side of the grey label, slowly push with both thumbs until the case pops open.
-
-
-
Grip both sides of the top round part of the case and carefully open it like a clam. The bottom of the two halves are connected by the speaker wire. Do not separate by more than 1 centimeter.
-
Grip either side of the top round part of the case and carefully open the device to reveal all the hidden treasures inside!
-
Lay the device down, so that all the internal components are facing upwards.
-
-
-
Disconnect the speaker wire from the motherboard by firmly griping the black and red wires close to the connection with two fingers and pulling the connector out.
-
-
-
Remove the eight 11mm Phillips #1 screws that connect the speakers to the white outer case.
-
-
-

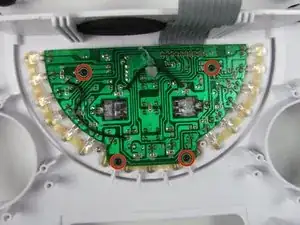

Remove the four 7mm Phillips #1 screws on the circuit board with the LED lights.
-

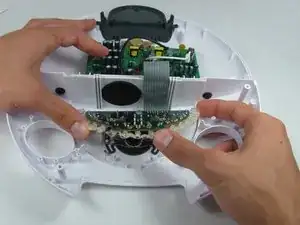

Slowly lift the circuit board out of the front cover and place the cover out of the way.
-
To reassemble your device, follow these instructions in reverse order.
