Sharper Image iPulse SI325 Sub Input Replacement

Geschrieben von: Melissa Pasa
  • Kommentare: 0
Sharper Image iPulse SI325 Sub Input Replacement

Schwierigkeitsgrad

Difficult

Schritte

9

Zeitaufwand

30 Minuten

Einleitung

This guide will demonstrate how replace the sub input, located in the back of the device. There is soldering required, so if you need assistant please read this soldering technique page.

  1. BK3ULLgMi43icBIh
    BK3ULLgMi43icBIh
    awDGbfIFXNofyWWb

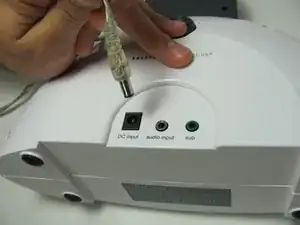

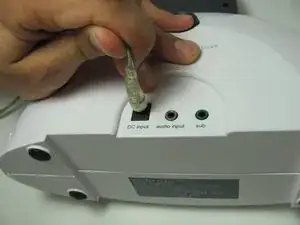

    • Gently position the device so that the buttons and speakers lie face down.

    • Unplug the power cord from the "DC Input."

  2. saCbT4QfiBnhMIdA
    saCbT4QfiBnhMIdA
    DZE6V3rP64oPSKIe
    wD1P5dYJmYvmR4oW

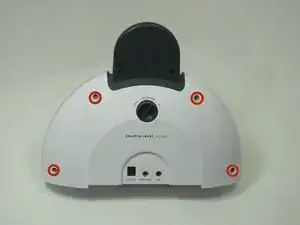

    • Remove the four 12mm phillips head #2 screws located along the outer edge of the white case.

    • Be careful! There are two small, easily-broken, plastic tabs at the bottom of the device keeping it together.

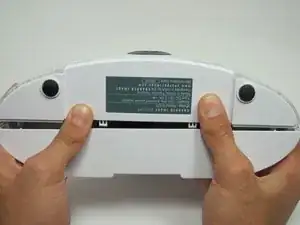

    • Once you remove the screws, pick the device up so that the grey label on the bottom of the device faces toward you.

    • With your thumbs on either side of the grey label, slowly push with both thumbs until the case pops open.

    • A small gap will open as the two tabs are released.

    • Do not pull the two halves apart yet. They are held together by the speaker wire.

  3. AcAEsabFemkPhNl5
    AcAEsabFemkPhNl5
    MrLrSYLpoV1msw1L

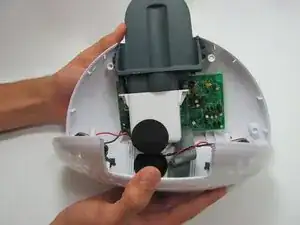

    • Grip both sides of the top round part of the case and carefully open it like a clam. The bottom of the two halves are connected by the speaker wire. Do not separate by more than 1 centimeter.

    • Grip either side of the top round part of the case and carefully open the device to reveal all the hidden treasures inside!

    • Lay the device down, so that all the internal components are facing upwards.

  4. vsx5cWb2BZM6LHQM

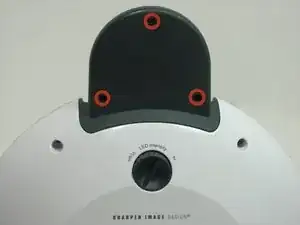

    • Turn the device over so that the internals are facing down; the Light Intensity Dial will be facing you.

    • Remove the three 7mm Phillips #1 screws connecting the Zipconnect unit.

  5. beCFVwClgV6TXWUc
    beCFVwClgV6TXWUc
    FBRj6n1wH1IfvYyl

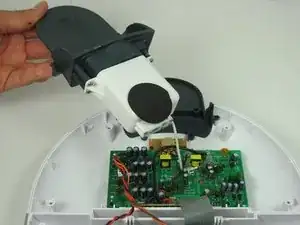

    • Turn the device over again so you are looking at the internals.

    • The Zipconnect unit will lift out but will still be attached by a wire connected to the motherboard.

    • Remove the six 7mm Phillips #1 screws attaching the Zipconnect unit to the motherboard wire and set the unit out of the way.

  6. 3mQ4D6eyLhfxVHnC
    3mQ4D6eyLhfxVHnC
    bvZFVnKtNqriiNPx

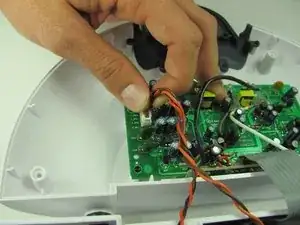

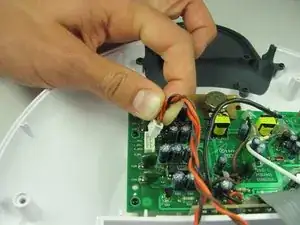

    • Next, disconnect the speaker wire from the motherboard by gripping the wires as close to the connection as possible and pulling the connector out.

    • Moving the connector back and forth as you pull will make removal easier.

  7. iO4JCVwsWXmPTvAV

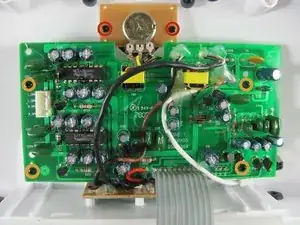

    • Remove the two 11mm Phillips #1 screws attaching the small brown circuit board to the plastic case.

    • Also remove the four 11mm Phillips #1 screws attaching the motherboard to the plastic case.

  8. MDCfGI2w2hYW6uAs
    MDCfGI2w2hYW6uAs
    hPsMRFevJf5TfEMb
    g1oBRROYvtxJGWIZ

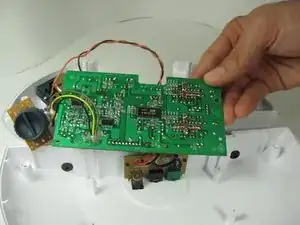

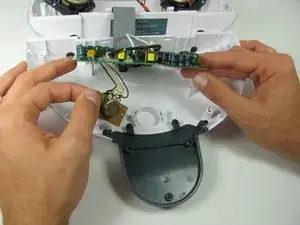

    • Lift up on the motherboard and light intensity dial circuit board to expose the circuit board containing the auxiliary input, sub input, and DC input.

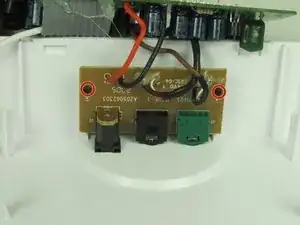

    • Remove the two 7mm Phillips #1 screws attaching the brown circuit board with all of the inputs.

  9. tbECRWHpNtufWYEb
    tbECRWHpNtufWYEb
    QwhBGFshTIAvdIGm

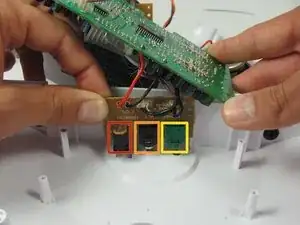

    • Lift up the circuit board containing the Auxillary, DC, and sub inputs and move the lower case out of the way.

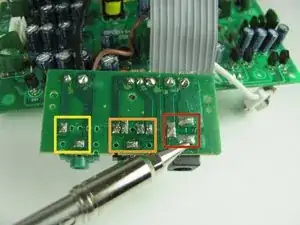

    • Turn the circuit board over so the solder is visible. Depending on which input is broken remove the solder connecting either the Auxillary, DC, or Sub input.

    • DC input

    • Auxillary Input

    • Sub Input

Abschluss

To reassemble your device, follow these instructions in reverse order.
