Skytex Skypad Alpha 2 Battery Replacement

Geschrieben von: Rebecca Ramirez
  • Kommentare: 1
Skytex Skypad Alpha 2 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

20 Minuten

Einleitung

By following this guide one is able to access and remove the battery of the Skytex Skypad Alpha 2 tablet in two steps. These steps include removing soldered connections and the removing of the battery itself.

  1. kMcjSsCRIwfxeCQl

    • Power off the tablet.

    • Unplug the tablet from the power source if it is connected.

  2. JSjRaVGw2bDhOCb3
    JSjRaVGw2bDhOCb3
    iLDZUhvrGxJWtRZU

    • Remove the (4) 3.5mm screws using a phillips #000 screwdriver.

  3. AeOpIQSwAcR3dcoY

    • Use the plastic opening tool to work your way around the tablet, releasing the back case from the tabs.

  4. sOLBGkWJB5LF41fX

    • Release the back case from the rest of the tablet with your hand.

    • Do not pry the case too hard; doing so can damage the tablet.

  5. tbQJGVoJejGr2MXi

    • Remove soldered connections to separate the battery wires from the motherboard.

    • Remove all black and yellow tape, if necessary, on motherboard.

    • Following the red and black wires, that come out of the battery, to their respective connections on the motherboard will indicate where to solder.

    • Follow link for further soldering information: How to Solder and Desolder Connections

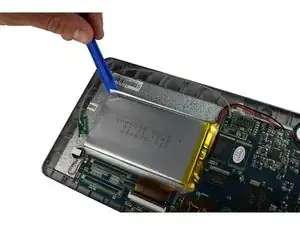

  6. GJLLYMyfGSyNMWRw

    • Use the plastic opening tool to remove battery from tablet.

    • Be sure to remove the battery carefully to avoid damage. Damage of battery can release harmful chemicals and may cause a fire.

Abschluss

To reassemble your device, follow these instructions in reverse order.
