Skytex Skypad Alpha 2 Speaker Replacement

Geschrieben von: Rebecca Ramirez
  • Kommentare: 0
Skytex Skypad Alpha 2 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

By following this guide one is able to access the speakers of the Skytex Skypad Alpha 2 tablet in two steps. These steps include removing soldered connections and removing the speaker itself.

  1. kMcjSsCRIwfxeCQl

    • Power off the tablet.

    • Unplug the tablet from the power source if it is connected.

  2. JSjRaVGw2bDhOCb3
    JSjRaVGw2bDhOCb3
    iLDZUhvrGxJWtRZU

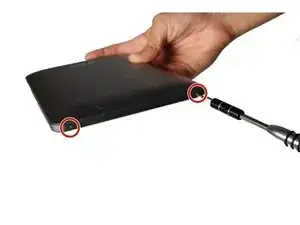

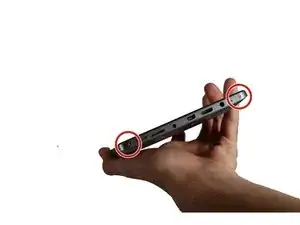

    • Remove the (4) 3.5mm screws using a phillips #000 screwdriver.

  3. AeOpIQSwAcR3dcoY

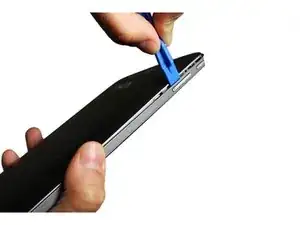

    • Use the plastic opening tool to work your way around the tablet, releasing the back case from the tabs.

  4. sOLBGkWJB5LF41fX

    • Release the back case from the rest of the tablet with your hand.

    • Do not pry the case too hard; doing so can damage the tablet.

  5. SEFoouTVbPPNkRpj

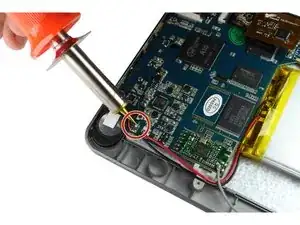

    • Remove the soldered connections to separate the speaker wires from the motherboard.

    • Remove all black and yellow tape, if necessary, on the motherboard.

    • Following the red and black wires, coming out of the speaker, to their respective connections on the motherboard will indicate where to solder.

    • Follow the link below for further soldering information: How To Solder and Desolder Connections.

    • Soldering irons require a larger amount of heat; use caution when performing this step. Excessive heat can damage parts of your device; do not leave the soldering iron on connections for extended periods of time.

  6. WZ4SyxpRe2hQAK3h

    • Remove the speaker from the tablet using the plastic opening tool.

    • This will not require much force, prying from the flat side of the speaker will do the job.

Abschluss

To reassemble your device, follow these instructions in reverse order.
