Slingbox SOLO DC Power Connector Replacement

Geschrieben von: Nitin Muralidhar
  • Kommentare: 0
Slingbox SOLO DC Power Connector Replacement

Schwierigkeitsgrad

Difficult

Schritte

4

Zeitaufwand

1 Stunde

Einleitung

The purpose of this guide is to show the steps necessary to replace the faulty DC power connector.

  1. 3vjUB1sCN54bMSIi

    • Use the plastic opening tool to remove the four rubber pads from the bottom of the device.

  2. PdKuTdXksjAIKCDB
    PdKuTdXksjAIKCDB
    h2Cyn1osShTwtNZt
    EMZTvTxbdbhWPbTV

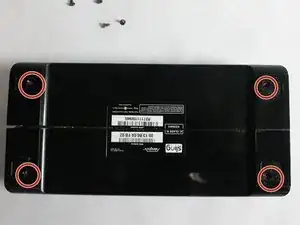

    • The Slingbox has four black 5mm screws, one on each corner of the case.

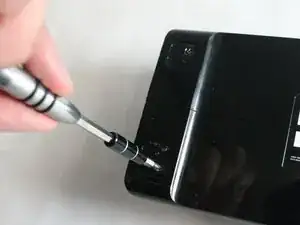

    • Remove the four black 5mm screws using the PH1 screwdriver.

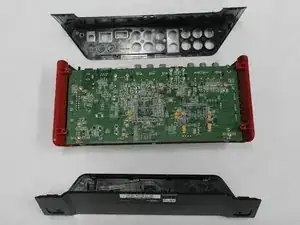

    • Gently pull and separate the two case covers.

  3. BOZriB2KLFCyDnDS
    BOZriB2KLFCyDnDS
    2GUPJPVj4hLYgMA5
    NPVdtjWf1PmvWy3h

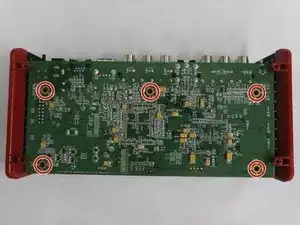

    • The motherboard has five silver 5.5mm screws connecting it to the base of the Slingbox.

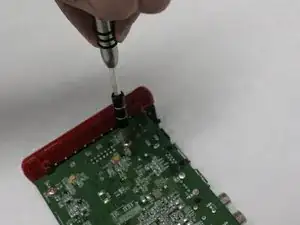

    • Remove the five silver screws on the motherboard using the PH1 screwdriver.

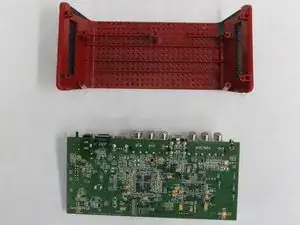

    • Gently slide and separate the motherboard from the base.

  4. uo2BjGIy2GuhEAAZ

    • Do not touch the heated tip of the soldering iron.

    • Check this guide out to learn how to use a soldering iron.

    • Desolder all three lead prongs.

    • Gently pull the DC power connector from the motherboard.

Abschluss

To reassemble your device, follow the instructions in reverse order.
