Einleitung

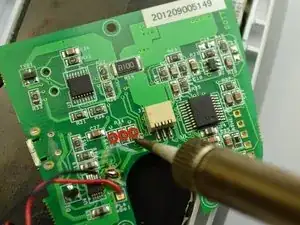

The LED Lights shows if the device you are charging is charged and if the CLASSIC2 is charging itself. Replacing the LED lights requires soldering. If needed guides on soldering are found on iFixit's website. Wie man Lötverbindungen herstellt und entlötet
-
-
Using the Phillips #1 screwdriver, remove the 2mm screw located on the bottom of the device, near the hinge.
-
-
-
Using the plastic opening tools, gently pry open the side of the large panel.
-
Keeping the tool in, slowly slide the tool along the side of the panel.
-
-
-
Rotate the device 180 degrees.
-
Gently slide the plastic opening tool along the side of the panel.
-
-
-
Using both hands, slowly pull apart the back panel from the rest of the device.
-
Gently flip the back panel open so the circuit board faces up and the two panels are side by side.
-
-
-
Softly pinch the red and blue wires close to the white connector.
-
To pull the wires out, wiggle them back and forth until the connector is fully out.
-
-
-
Unscrew the three 2mm screws holding the circuit board down using a Phillips #1 screwdriver.
-
-
-
Make sure the white USB port cover on the side of the device is pulled out or you won't be able to lift the circuit board.
-
Gently lift the circuit board out of the device using tweezers.
-
To reassemble your device, follow these instructions in reverse order.
