Einleitung
The Solio Rocsta's charging cable is the main connection for charging/using your device. In this guide, we will show you how to replace your charging cable if it no longer works or needs repairing.
Please note that this guide requires soldering. For more information on how to solder and desolder connections, please visit this guide.
-
-

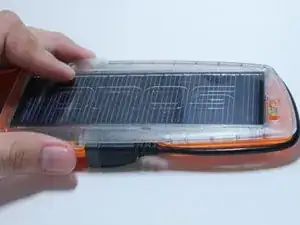

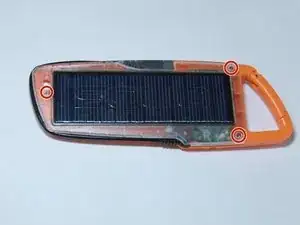

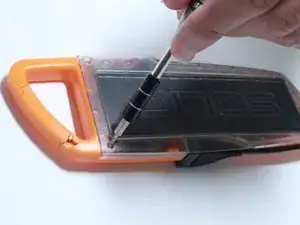

Locate, and unscrew, the three 5.72 mm screws that hold down the top cover using the T6 Torx screwdriver.
-
-
-

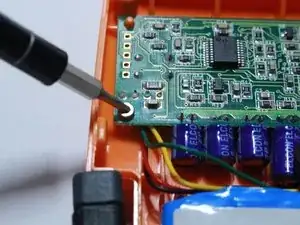

With the circuit board flipped, locate the battery connector.
-

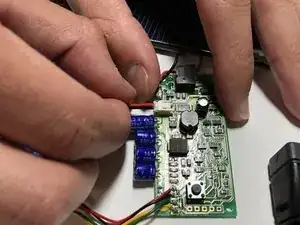

Hold the component attached to the circuit board the battery is connected to and wiggle the cable out.
-
-
-

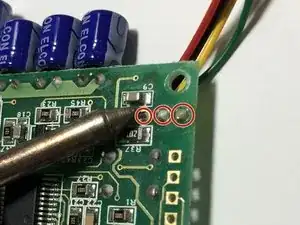

With a Soldering Iron, desolder the four cables that connect the charging cable to the circuit board.
-
To reassemble your device, follow these instructions in reverse order.
