Einleitung

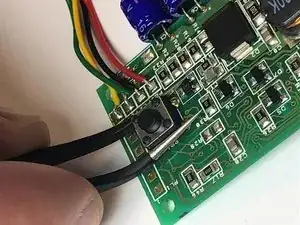

With just the push of a button, the charging indicator button to tell you the power status of your Rocsta Solio charger. In this guide, we will show you how to replace the charging indicator button if it no longer functions properly.

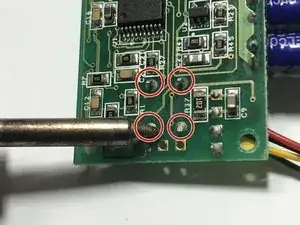

Please note that this guide requires soldering. For more information on how to solder and desolder connections, please visit this guide.
-
-

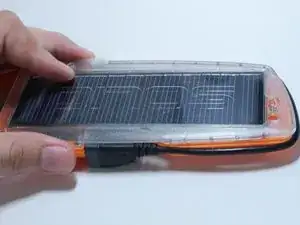

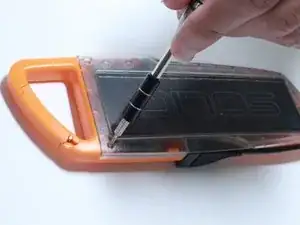

Locate, and unscrew, the three 5.72 mm screws that hold down the top cover using the T6 Torx screwdriver.
-
-
-

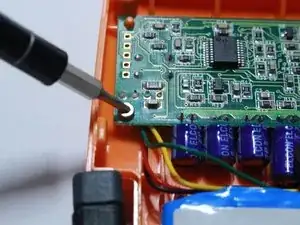

Using a T6 Torx screwdriver, unscrew the 5.66 mm screws attaching the circuit board to the case and flip the circuit board.
-
-
-

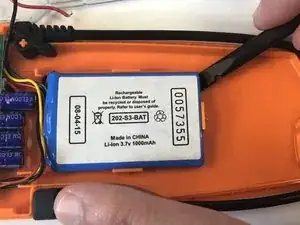

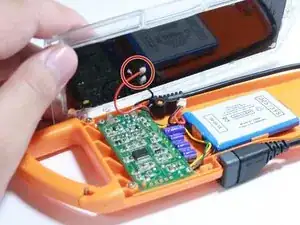

With the circuit board flipped, locate the battery connector.
-

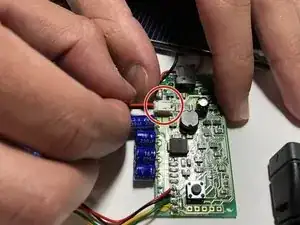

Hold the component attached to the circuit board the battery is connected to and wiggle the cable out.
-
To reassemble your device, follow these instructions in reverse order.
