Sony α6500 LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

20 Minuten

Einleitung

In order to interface with the camera and access its functions, it is important to have a working LCD screen. If your LCD screen has problems such as distortion and flickering, it may be damaged and in need of replacement. This guide will walk you through disassembling the camera and removing the LCD screen; avoid tearing the flat ribbon cables exposed in the process. When removing the screen from the plastic frame, you will break the adhesive attaching it. If desired, you may reglue the replacement screen to the frame with any super glue or epoxy. This guide requires JIS 00 and 000 screwdrivers, opening tools, a spudger, and tweezers.

  1. o4UEXCXeOUZjkviI

    • Verify the camera is powered off by setting the switch to OFF.

  2. dCHOBRPuMTTqHmIA
    dCHOBRPuMTTqHmIA
    dkJxRoZhPoghIxUK

    • Flip the camera upside down.

    • Slide the battery compartment lock to OPEN to unlock it.

  3. HqAeBfgUIE26Bh4E
    HqAeBfgUIE26Bh4E
    1GOlaeTsR1cCocn4

    • Push the blue lever aside to release the battery.

  4. XZKs2ArxSb1UNmEU

    • Remove the released battery from the compartment.

  5. wHrCRKvjFQS22T4a
    wHrCRKvjFQS22T4a
    gVkIxcOwiUTQsESe
    YjxyUAkqss1y3f5E

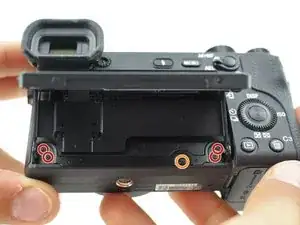

    • To access the LCD assembly we need to remove the screws attaching its hinge to the camera body.

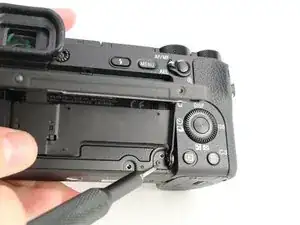

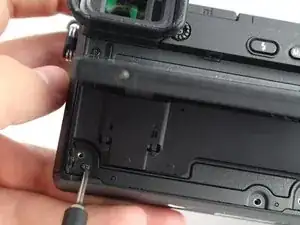

    • Remove four 3mm JIS 000 screws.

    • Remove one 3mm JIS 00 screw.

    • After dismounting the screen hinge be careful to not tear the black wire ribbon connecting the screen to the camera body.

  6. Kl1Rrf4UIQoYMkq4
    Kl1Rrf4UIQoYMkq4
    mEtyZIf6cb4ndXo3

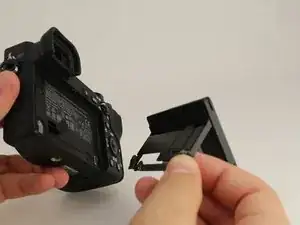

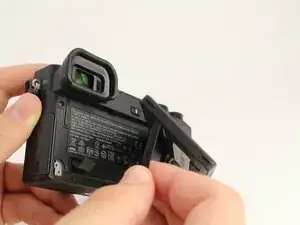

    • Remove the screen hinge from the camera.

    • Be careful to not tear the black flat cable connecting the lcd screen to the main body of the camera. This particular camera's cable has been cut for demonstration purposes.

  7. tTl2pPIRWp1NqHQr

    • Flip the LCD screen up.

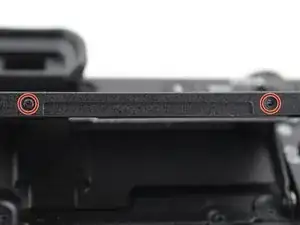

    • Remove two 2mm JIS 000 screws on the bottom edge.

  8. bECVjofePBExFysc
    bECVjofePBExFysc
    XHSxO3BtlNTlZ4Dv

    • Flip the LCD screen down to access the back side.

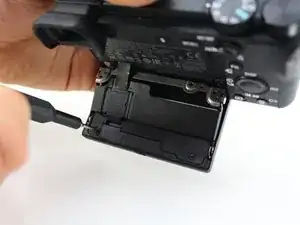

    • Remove two 2mm JIS 000 screws to release the back panel of the screen.

  9. SbDik4r1uvAj3eZK
    SbDik4r1uvAj3eZK
    tursSJeQC4VsXaaD

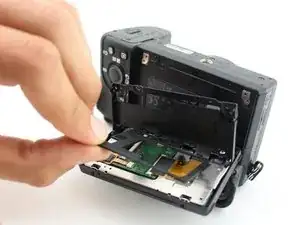

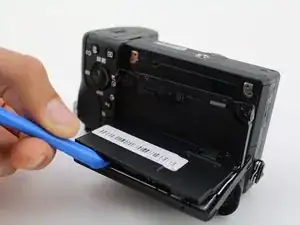

    • Use the opening tool to pry open the back panel.

    • Remove the black plastic spacer laying on top of the circuit board.

  10. mKAbFMGUSL5TYAPr
    mKAbFMGUSL5TYAPr
    r6tMbDOWTRy2vydH

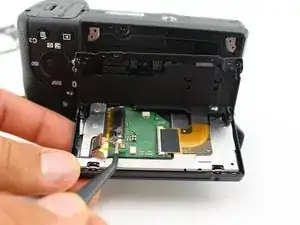

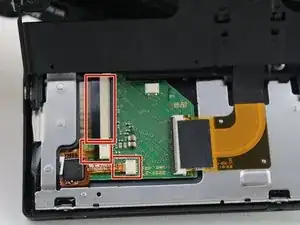

    • Carefully unplug the three wire ribbons from the circuit board with tweezers.

    • Likely you will need to wiggle the ribbons for a while before they come loose.

    • The ribbons can rip very easily, grasp the black plastic with the tweezers, on the two top ribbons, not the orange wires.

  11. KJdWMEeeI1cHTTXq
    KJdWMEeeI1cHTTXq
    RQQy2Ukqf1mqyVMp
    P4lIsbFsiuRvFxi5

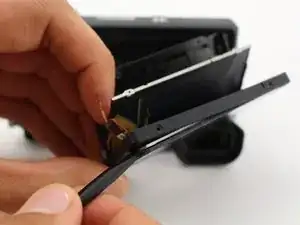

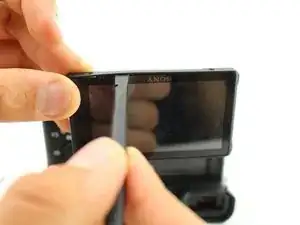

    • Slide the spudger around all sides of the screen's plastic frame, gently breaking the adhesive.

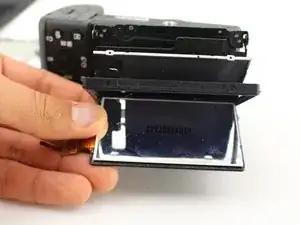

    • Remove the screen from the camera by prying it out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
