Sony Cyber-Shot DSC-W830 LCD Replacement

Geschrieben von: Addyson Salalila

Kommentare: 6

Sony Cyber-Shot DSC-W830 LCD Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

10 Minuten

Einleitung

This will show you how to disassemble the camera and show you how to safely and successfully remove the LCD.

Werkzeuge

Schritt 1

Slide the lock at the bottom of the camera to "Open".
The door to the battery pack is spring loaded.

Schritt 2

Slide the blue clip up and away from the battery.

Schritt 4

Remove the six 3.5mm Phillips #000 screws.
Rotate the lock away from the camera.

Schritt 5

Pry the device open with the plastic opening tool.
There are two clips that help prevent the front panel from separating.

There is also a small corner piece, coloured the same as camera body, at the battery compartment corner which will also fall out. be careful not to loose it - it’s a bit fidly to fit back when re-assembling, but logcal. The Ifixit tweezers where a great help in locating it back on its pins.

Nicholas Smith - 29/05/21

Schritt 6

Remove the two plastic spacers between the front and the back panels.
The spacers may fall out when removing the panels.
Carefully remove the back panel.

Schritt 7

Gently release the button board from the clips.
Be careful when lifting the button board; the ribbon cable will still be attached.

Schritt 8

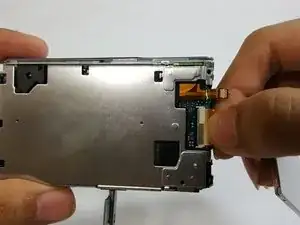

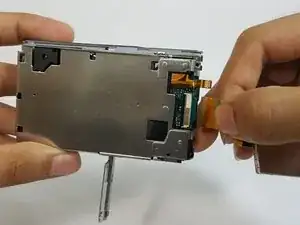

Disconnect the no-fuss ribbon cable by gently pulling it out of the button board.

Schritt 9

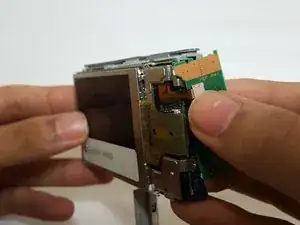

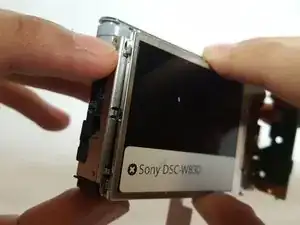

Push the bottom right corner of the LCD screen out and slide it to the right to release it from the clips.
Be careful when lifting the LCD screen; the ribbon cable will still be attached.
