Sony Cyber-shot DSC-H20 Capacitor Assembly Replacement

Geschrieben von: Reuben Martinez
  • Kommentare: 4
Sony Cyber-shot DSC-H20 Capacitor Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

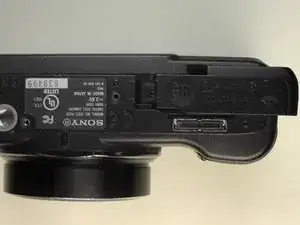

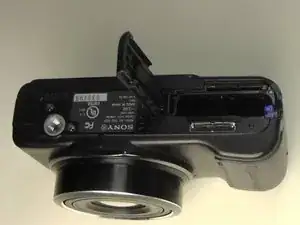

  1. YJgq1ZUlvQYeC1nf
    YJgq1ZUlvQYeC1nf
    IvkC6ZWVOND2iNUw

    • Slide open the cover and remove the battery and the Memory Stick Duo.

    • Return the battery cover to its closed position.

  2. uf3RCOU1NU3nXKX1

    • Remove all three screws from the bottom of the camera.

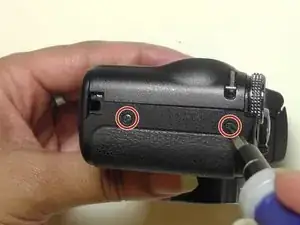

  3. Ac42iq4Ah1vnRAKA
    Ac42iq4Ah1vnRAKA
    3PNDuI3y6cmkeXKb

    • Remove the screws on the left and right sides of the camera.

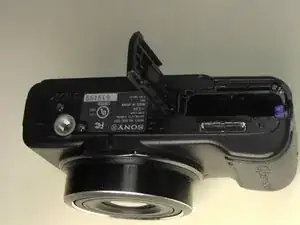

  4. stdLybyHTa1qUwHG
    stdLybyHTa1qUwHG
    rGURmjUEBoUmOmn2

    • Place the camera upside down with the battery port positioned upward.

    • Slide open the battery port.

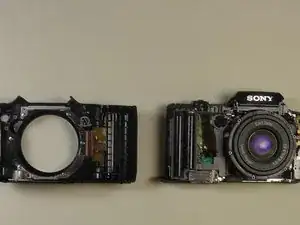

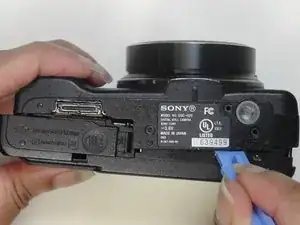

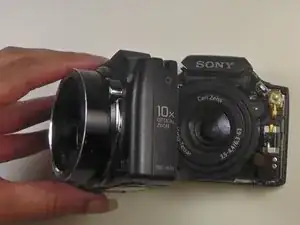

  5. AJABqhOEQkg1LFwZ
    AJABqhOEQkg1LFwZ
    FRYSIKELJYYprREp
    GBuPUvxVCc5HOyjF

    • Pry the front cover of the camera off with the plastic opening tool.

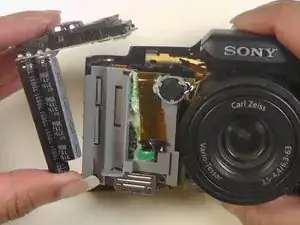

  6. wjhjWBowL41TjvVN

    • Remove the power shutter unit.

    • Caution: Touching the capacitor wires may cause serious injury. Use a capacitor discharge probe to safely rid the capacitors of dangerous charges.

Abschluss

To reassemble your device, follow these instructions in reverse order.
