Einleitung
The E-mount is a lens mount that joins the camera’s body and the lens. Replacing a damaged or non-functioning E-mount requires removing the lens and the casing of the mount.
Werkzeuge
-
-

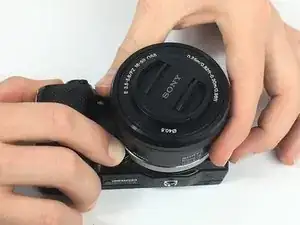

Hold the camera with one hand and the lens in another.
-

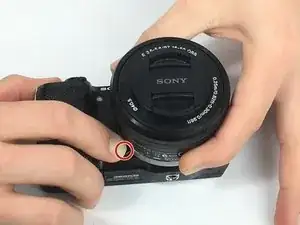

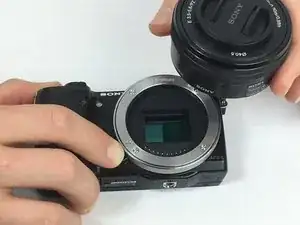

With the hand holding the camera, simultaneously push down on the lens release button while twisting the lens counterclockwise then pull to remove the lens.
-
-
-

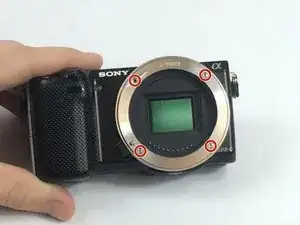

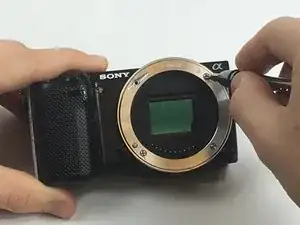

Using a PH0 Philip’s screwdriver, unscrew and remove the four 1.2mm Philip’s screws on the front of the E-mount.
-
-
-

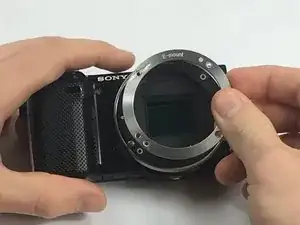

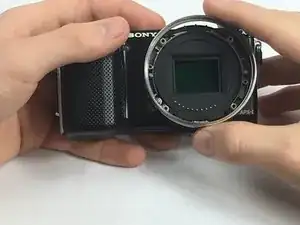

Using your fingers, pull out and remove the top silver plate exposing a black spacer ring underneath.
-

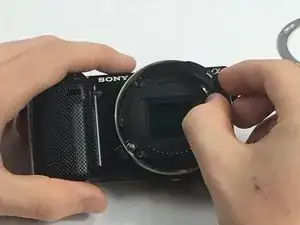

Repeat the previous step for the black spacer plate exposing the second silver spacer ring.
-

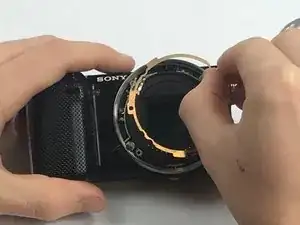

Using your fingers or tweezers, pull out the second silver spacer ring.
-
-
-

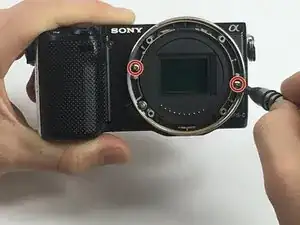

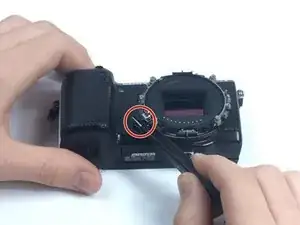

Using a PH0 Philip’s screwdriver, unscrew and remove the two 1.2mm Philip's screws located on opposite sides of the lens mount.
-

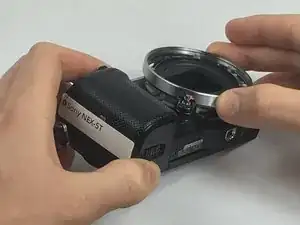

Using your fingers, pull off the lens housing.
-
To reassemble your device, follow these instructions in reverse order.
