Sony Walkman NWZ-S764 Battery Replacement

Geschrieben von: John Ferguson
  • Kommentare: 4
Sony Walkman NWZ-S764 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

20

Zeitaufwand

Keine Schätzung

Einleitung

  1. pSdpajcdH5KuX42K
    pSdpajcdH5KuX42K
    UVoYIKgBdWfrmDOy
    WOJLI1iGa5TEVCLJ

    • Remove the two black 6.4mm Phillips screws from the back of the device.

  2. qNHM6WUJ1JHx2OGl
    qNHM6WUJ1JHx2OGl
    MEF2HQ6IMiTkAkph
    1Enf5jMAxAuoN2xj

    • Using a plastic opening tool, work your way around the edges of the device, carefully prying off the front panel.

  3. 1UvFvSsR2PcSdkIJ
    1UvFvSsR2PcSdkIJ
    MfxI1LssAUe5NIqX

    • Remove the two 2.8 mm phillips screws located on either side of the device near the top.

  4. DKRWC6n2yEZOf6PJ
    DKRWC6n2yEZOf6PJ
    PgbxJcseCOgZrCh2

    • Carefully pull the top piece away from the device.

  5. ec6LqXLDKqOeDcQo
    ec6LqXLDKqOeDcQo
    WFvYNRmRTFE5i4VL
    orWN1mestH1gdcI2

    • Use the flat end of the spudger to flip up the retaining flap for the bluetooth module.

    • Be sure to lift up on the retaining flap, and not the socket itself.

  6. lHRSbghjdyJELRff
    lHRSbghjdyJELRff
    1QJKgeLKWOMfixnU
    CGRJ1PoplThYOvts

    • Remove the two 1.8mm silver Phillips screws on the Bluetooth module.

    • Lift up on and remove the Bluetooth module.

    • The ribbon cable must first be removed in order to access the highlighted screw.

  7. RSiPFKQ1PIfSBjGn
    RSiPFKQ1PIfSBjGn
    Oe3tYEwiumKYNSBx
    wgQFpKwjj5UFWf5O

    • Remove the two 2.8mm silver Phillips screws on the sides of the frame.

    • The two 2.8mm screws are on each side of the device.

    • Insert a plastic prying tool between the bottom of the case and the motherboard.

    • Pry up the assembly and lift it away from the case.

  8. C6It6WXZvYqmXiNH
    C6It6WXZvYqmXiNH
    L5jSsORtfMxKuOFj
    MMP451pYBueiioVR

    • Remove the yellow tape from the battery and volume control module.

    • Save tape for reassembly.

  9. gRqx5YFQkcGemPUY
    gRqx5YFQkcGemPUY
    tycHOVSUlu2TRHtM
    hraVlEYGnFvIAPYn

    • Use a prying tool to pry under the volume control module.

    • This module is glued on, using too much force may damage or warp the module.

  10. hRQRNDo2NuNVoCkl
    hRQRNDo2NuNVoCkl
    kjB6xNUNJvh2pWJC
    gKcENdytUQvLaAqS

    • Remove the tape from EMF shield and the LCD housing.

    • Lift up on the volume control ribbon.

  11. tUbpWKrh3afsiLmL
    tUbpWKrh3afsiLmL
    QqB6qDTryuQ4eLZl
    oIHaevUiftLeLtFR

    • Insert a plastic opening tool under the battery and lift up to remove it.

    • The battery is glued on, too much force may damage the battery casing.

    • The battery is soldered to the motherboard, care should be taken to not place too much stress on the wires.

  12. p1WbeOGCTXsF4xEG
    p1WbeOGCTXsF4xEG
    KYIXrXbdKFV21Nc2
    sJYDwjyIRyKEann5

    • Remove the black shielding tape from above the Hard Drive.

    • Peel the foam cover away from the hard drive.

    • Use a plastic opening tool to remove the EMF chip from the motherboard.

    • The hard drive is soldered onto the device. Be careful not to pull too hard on the hard drive.

  13. FXkcw6ysm2jN1DMS
    FXkcw6ysm2jN1DMS
    2yHPjeBaGJCcqqkv
    aZbilXejb56WA3BB

    • Remove the plastic bracket by pushing up with your thumb to expose the display connection.

  14. G2D2lwjJrsTrncCF
    G2D2lwjJrsTrncCF
    feFa5Ov225o5ZMjA
    uH1TSwvSrkwg1Ggj

    • Use the flat end of a spudger to flip up the retaining flap on the audio jack module.

  15. QSrOKgb1U1SuWXLo
    QSrOKgb1U1SuWXLo
    rNBeT3Vmif1dXDa5

    • Peel back the ribbon for the audio jack and remove the 1.8mm silver Phillips screw.

  16. uEHsYS1bckSMIGgS
    uEHsYS1bckSMIGgS
    DB2PyfWOmkagmDyE
    rTNwpNZU1WZledrc

    • Remove the mic casing by pushing up and in.

    • Remove the headphone jack and the bottom casing.

  17. YamjtM3MKZ1FXDgn
    YamjtM3MKZ1FXDgn
    4mQSNVQ5gwOIanbP

    • Use the prying tool to remove the LCD ribbon wire.

  18. L5lcYPYRKRiKpcu6

    • Lift up on the LCD ribbon and remove the two 1.8mm silver Phillips screws.

  19. ZktGXZO2OgJFM6yK
    ZktGXZO2OgJFM6yK
    MsKUoKlmw2AXRZg6
    T1xFNG4pKHKkbJmd

    • Lift the motherboard away from the frame with your thumb to remove it from the device.

    • Pull the volume control module through the space in the frame.

    • If you are using the magnetic project pad or other magnetic surface to keep your screws, do not place the hard drive on or near the magnet.

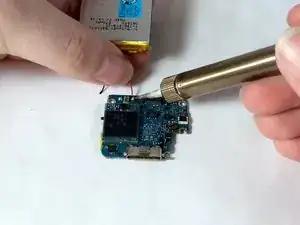

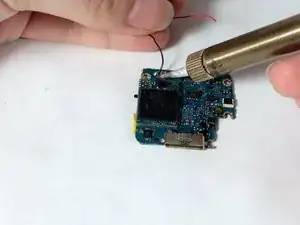

  20. col1IIMeMSbwGr6U
    col1IIMeMSbwGr6U
    pp5LnoNZdmrHSYRg

    sir… where to buy the battery? i need it for my S776

    adi putra -

Abschluss

To reassemble your device, follow these instructions in reverse order.
