Spin Master Boxer Robot Battery Replacement

Geschrieben von: Lauren Roide
  • Kommentare: 9
Spin Master Boxer Robot Battery Replacement

Schwierigkeitsgrad

Difficult

Schritte

8

Zeitaufwand

5 Minuten

Einleitung

If Robot’s internal battery does not hold a charge, follow this guide to replace the battery. You will need a Size 00 Philips Screwdriver to complete replacement guide.

  1. hi5IwasJIrBdwmst

    • Set Spin Master Boxer on your workspace so that the bottom panel faces upwards.

  2. yFKGGUmVEWBvNpBV

    • Using a Phillips #00 screw driver, unscrew the four 4mm screws in each corner of the bottom panel.

    how can i easier when there broken?

    Daniel Ellingson -

  3. jjae2QVuqdtVidVx

    • Carefully remove the bottom panel of the Spin Master Boxer by lifting up, away from the main body of robot.

  4. nL1bKeTT6BhtQd1O
    nL1bKeTT6BhtQd1O
    aAeQeVYrwcJBD3Ip

    • While holding onto the axels of the wheels, gently pull the top panel of the robot away from its body.

    • Be aware when removing the panel that multiple wires connect it to the body of the Spin Master Boxer.

  5. ArZOBmqFv1w3KxOR

    • Remove the plastic screen from the body of the robot. It should come off easily as it is not attached by anything.

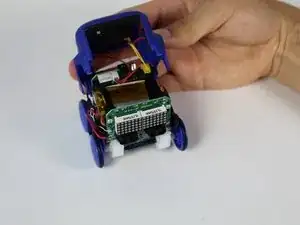

  6. MvyZOR21UH2RXVXY
    MvyZOR21UH2RXVXY
    XaLNwPAWceCJFTEe

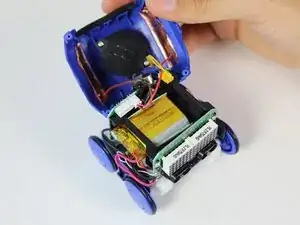

    • Lift the top panel away from the main body of the robot to expose the yellow battery.

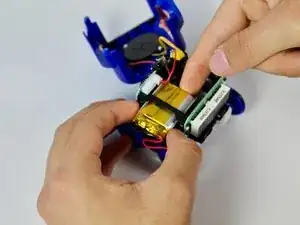

  7. YvdNoyHEOWZU3EZ6

    • Insert index finger in between battery and plastic shell of robot, and push battery out of the battery holder toward the wire.

    Does anyone know the battery specs? It seems to be a 3.7V LiPo but it would be nice to know the mAh rating and size (usually something like 500mAh and 703535) before opening the Boxer so that you can proceed with the replacement after removing the old battery.

    Bill Vitez -

    I don’t, but were you able to find out after opening and replacing it? Thanks!

    John Crewman -

    I just ordered a replacement battery with same power specs and a size that would fit the slot. I'll update when I install and let you know if it

    Chad Laughlin -

    The battery is indeed a 3.7v/500 mah lipo battery according to the boxer manual. I bought a replacement Amazon with dimensions to fit in the slot, but after troubleshooting discovered that it was my charging port, not battery that was faulty. I'm looking into resoldering a new port to get him working again.

    Chad Laughlin -

    The charging port is difficult to replace. To be able to put it back you will need to de-solder the PCBs that were soldered together. They are interlocked to each other like a box. It would be so much easier to replace if the charging port was put upside down as you can solder it back without de-soldering the PCBs.

    cdtj926 -

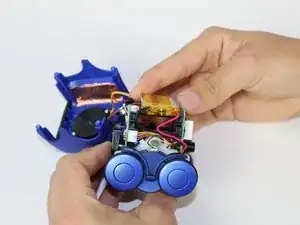

  8. wrTjrUIJBEssIYYE
Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Lauren Roide

Mitglied seit: 16/04/19

739 Reputation

3 Kommentare

Any tips on where to buy a replacement battery?

Chad Laughlin -

In fact it’s easy, was able to put 1000 mah Lipo 952540 with a little stretching of battery plastic holder

Anton Litvinov -

can we replace boxer’s USB slot?

Buchukoy Jimenez -
