Spin Master Boxer Robot Speaker Replacement

Geschrieben von: Lauren Roide
  • Kommentare: 1
Spin Master Boxer Robot Speaker Replacement

Schwierigkeitsgrad

Difficult

Schritte

7

Zeitaufwand

4 Minuten

Einleitung

If Spin Master Boxer is not making any noises, follow this guide to replace speaker. The speaker is located inside of robot, and requires a Size 00 Philips Screwdriver to complete replacement, and requires soldering to remove the speaker.

  1. hi5IwasJIrBdwmst

    • Set Spin Master Boxer on your workspace so that the bottom panel faces upwards.

  2. yFKGGUmVEWBvNpBV

    • Using a Phillips #00 screw driver, unscrew the four 4mm screws in each corner of the bottom panel.

    how can i easier when there broken?

    Daniel Ellingson -

  3. jjae2QVuqdtVidVx

    • Carefully remove the bottom panel of the Spin Master Boxer by lifting up, away from the main body of robot.

  4. nL1bKeTT6BhtQd1O
    nL1bKeTT6BhtQd1O
    aAeQeVYrwcJBD3Ip

    • While holding onto the axels of the wheels, gently pull the top panel of the robot away from its body.

    • Be aware when removing the panel that multiple wires connect it to the body of the Spin Master Boxer.

  5. ArZOBmqFv1w3KxOR

    • Remove the plastic screen from the body of the robot. It should come off easily as it is not attached by anything.

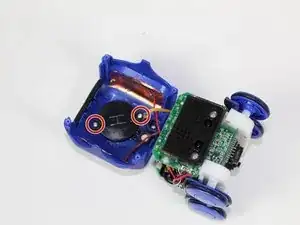

  6. 2X1RyLVXJJUiIyRD
    2X1RyLVXJJUiIyRD
    gnvZ2GJjBncpc4wF

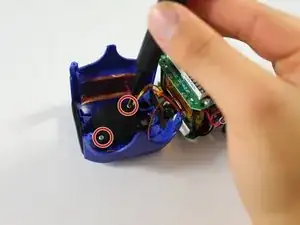

    • Using a Phillips #00 screwdriver, unscrew the two 3mm screws connecting the black speaker cover to the top panel.

  7. 3KBmwAM1EXYZelUK
Abschluss

To reassemble your device, follow these instructions in reverse order.
