SteelSeries Arctis Pro Plus GameDAC Headset Mute Button Replacement

Geschrieben von: Kyle Chang
  • Kommentare: 11
SteelSeries Arctis Pro Plus GameDAC Headset Mute Button Replacement

Schwierigkeitsgrad

Difficult

Schritte

8

Zeitaufwand

30 - 45 Minuten

Einleitung

If the headset mute button is not pressing down or not muting the microphone, the physical button may need to be replaced. Follow this guide to safely replace the button.

  1. sDeg65jlUQtc4BU2
    sDeg65jlUQtc4BU2
    HVVlMrnnvsoblBNG

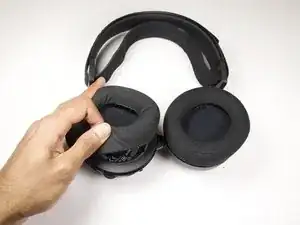

    • Lift the edge of the cushion and pull out slightly.

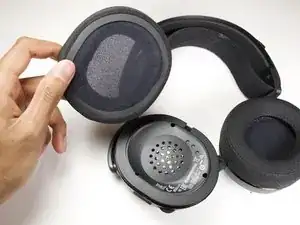

    • Work your way around the cushion until it comes off completely.

    • Repeat for the other cushion.

    I do not believe that my Arctis 7 uses Phillips #0 it looks to be some kind of tamper proof start bit, do you know what kind that would be?

    Jerrett Smith -

  2. 2CAPVHviF3OHHUKT

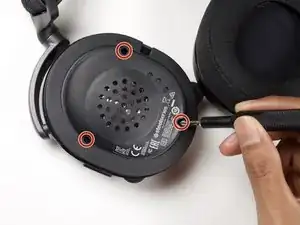

    • Remove the three 5mm screws with a Phillips #0 driver head on the headphone with the microphone.

    Philips #0 doesn’t work, it’s using a weird screw head

    Mojo -

  3. m13FTVZE5LlIfIfI

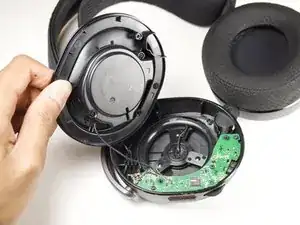

    • Lift the speaker off the headset to expose the circuit board.

    • Be careful not to lift the speaker too quickly or too forcefully to prevent the wires from being pulled out of their connections.

  4. QrMSlgKMI2URX4KQ

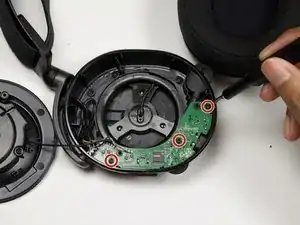

    • Remove the three 5mm screws using a Phillips #0 driver head.

  5. lSZq2UG6PIlBJBXL

    • Lift the circuit board out of the plastic housing.

    • Press in on the volume wheel while pulling on the circuit board to help maneuver the circuit board out of the housing.

  6. eqUcyiZNyVMwumhf
    eqUcyiZNyVMwumhf
    J6BjnxQCbDUjAUWG

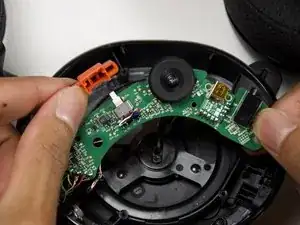

    • Flip the circuit board over and remove the keycap by pulling on it.

    Hi, my headset fell down on the floor while I was charging so the connector is now with bad conection I have to find the right position to charge the headset, do you have any tips of how can I fix it?

    Rebeca C. Dávila -

    Hello, where did you order the mute button cap part for this replacement?

    Pete -

  7. fkjOgUSRGKZMQPIf

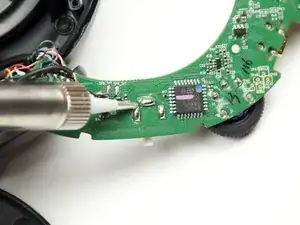

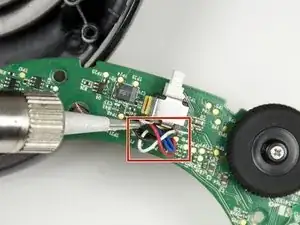

    • Desolder the wires connecting the button to the circuit board.

    • For help desoldering connections, follow this useful guide on Wie man Lötverbindungen herstellt und entlötet.

    • Use caution when soldering. The heated tip may cause damage to the board or burn you.

  8. bSfWbFJieSnFPWTH
    bSfWbFJieSnFPWTH
    cYSaPgUW2q3a5UNQ

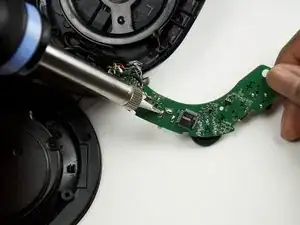

    • Desolder the three pins to remove the button from the circuit board.

    • For help desoldering connections, follow this useful guide on Wie man Lötverbindungen herstellt und entlötet.

    • Use caution when soldering. The heated tip may cause damage to the board or burn you.

    Do you know where to get the replacement mute button from?

    Mark Kobus -

Abschluss

To reassemble your device, follow these instructions in reverse order.
