SuperSonic Matrix Mid SC-999 FM Antenna Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

5 - 10 Minuten

Einleitung

In this guide you will have to remove the back cover of the device to locate and replace the FM antenna.

Because this task requires the use of a soldering iron, prior experience with soldering/desoldering will be beneficial.

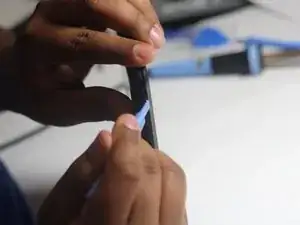

  1. maUWjIAdwvsjZ6By

    • Wedge the plastic opening tool between the back cover of the device and the front panel.

    • You will hear a snapping sound as the cover is separated from the body of the device.

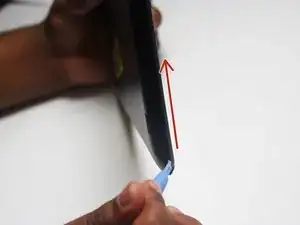

  2. lhFeLCWfEiSxICV5

    • Slide the opening tool along the seam between the front panel and the back cover to un-clip the remaining connections around the device.

    • Again, you will hear a snapping sound as the cover is separated from the body of the device.

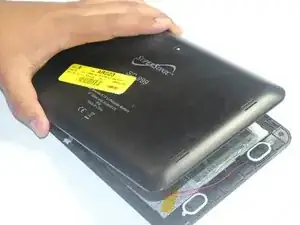

  3. QIUocuIlYthYw62V
    QIUocuIlYthYw62V
    ixu1Drea45QeXCHY

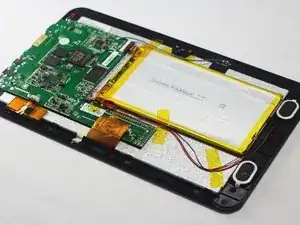

    • Lift the back cover from the body of the device to expose the internal components.

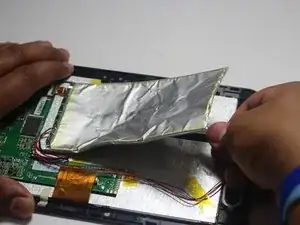

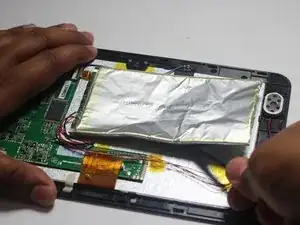

  4. aSXDHCcq62dn4UXh
    aSXDHCcq62dn4UXh
    etLeXG1ErMexMI34
    tkNTrxikGwVAYS4G

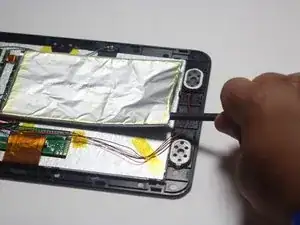

    • Remove the Battery

    • The battery is secured to the back panel with tape and glue.

    • Peel back the tape around the battery and discard it.

    • Tear through the adhesive holding the battery by using the spudger tool.

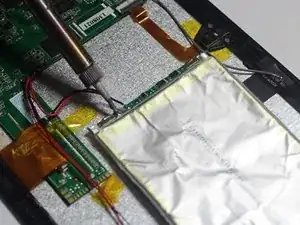

  5. KOUQcvCWK3OX4IHk
    KOUQcvCWK3OX4IHk
    XdnIuaLVKTS6sNVC
    DUq31GHaRE3YI6nZ

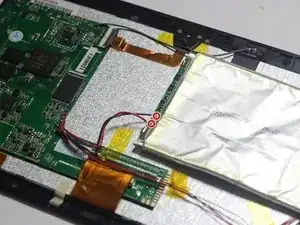

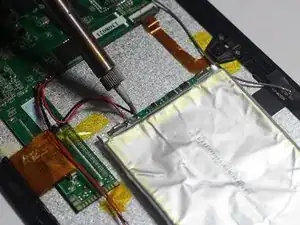

    • Desolder the 2 Battery Wires

    • The Battery has two wires connected to the motherboard (one black and one red).

    • If you're unfamiliar with soldering or desoldering check out this guide.

    • Be sure to wear protective eye wear. The soldering iron will become extremely hot and a potential danger, so make sure you are aware of your surroundings.

    After i replaces the battery it still doesn't work

    daledelorise -

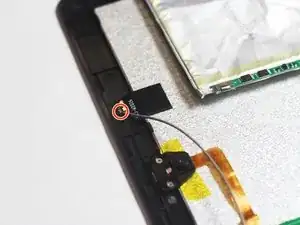

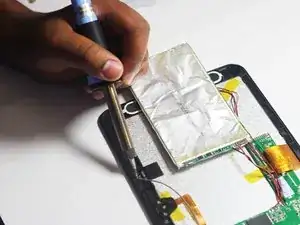

  6. UulX6mcMjYLRuOtU
    UulX6mcMjYLRuOtU
    Lj33b3PSPDel5cOe

    • Use a soldering iron to desolder the region circled in red.

    • If you're unfamiliar with soldering or desoldering check out this guide.

    • Be sure to wear protective eye wear. The soldering iron will become extremely hot and a potential danger, so be aware of your surroundings.

  7. ITLcwtiXNnAAbjO4
    ITLcwtiXNnAAbjO4
    2wSaXGSmOXKPChSJ

    • Desolder the FM antenna from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
