SuperSonic Matrix Mid SC-999 Rear Facing Camera Replacement

Geschrieben von: Harris Dagha
  • Kommentare: 1
SuperSonic Matrix Mid SC-999 Rear Facing Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 - 20 Minuten

Einleitung

In this guide you will open the back cover and use a screwdriver to remove the camera from its housing.

  1. maUWjIAdwvsjZ6By

    • Wedge the plastic opening tool between the back cover of the device and the front panel.

    • You will hear a snapping sound as the cover is separated from the body of the device.

  2. lhFeLCWfEiSxICV5

    • Slide the opening tool along the seam between the front panel and the back cover to un-clip the remaining connections around the device.

    • Again, you will hear a snapping sound as the cover is separated from the body of the device.

  3. QIUocuIlYthYw62V
    QIUocuIlYthYw62V
    ixu1Drea45QeXCHY

    • Lift the back cover from the body of the device to expose the internal components.

  4. aSXDHCcq62dn4UXh
    aSXDHCcq62dn4UXh
    etLeXG1ErMexMI34
    tkNTrxikGwVAYS4G

    • Remove the Battery

    • The battery is secured to the back panel with tape and glue.

    • Peel back the tape around the battery and discard it.

    • Tear through the adhesive holding the battery by using the spudger tool.

  5. KOUQcvCWK3OX4IHk
    KOUQcvCWK3OX4IHk
    XdnIuaLVKTS6sNVC
    DUq31GHaRE3YI6nZ

    • Desolder the 2 Battery Wires

    • The Battery has two wires connected to the motherboard (one black and one red).

    • If you're unfamiliar with soldering or desoldering check out this guide.

    • Be sure to wear protective eye wear. The soldering iron will become extremely hot and a potential danger, so make sure you are aware of your surroundings.

    After i replaces the battery it still doesn't work

    daledelorise -

  6. EZe1ltlOoIebAdyD
    EZe1ltlOoIebAdyD
    ZHWBJAJNdv5hvPpK

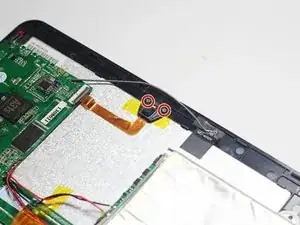

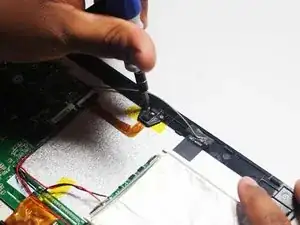

    • Remove the two Phillips #00 screws attaching the housing of the camera to the device.

  7. DHkJAQZiKstWSYlm

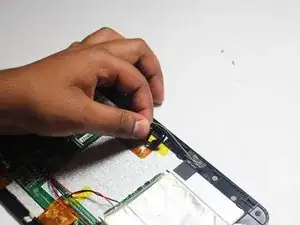

    • With the screws removed you should easily be able to remove the camera unit.

  8. U564AllYhPkWRVfh
    U564AllYhPkWRVfh
    YnZOWJWBIVW4RiTC

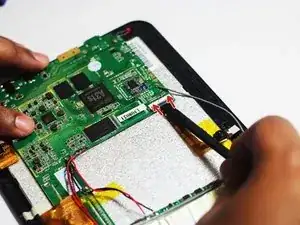

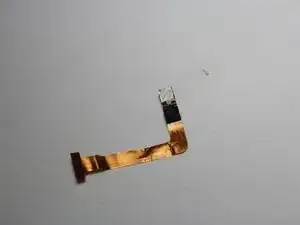

    • Follow the camera unit back to the motherboard.

    • Use the spudger tool to remove the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
