Teddy Ruxpin Mouth Replacement

Geschrieben von: Jayin Patel
  • Kommentare: 5
Teddy Ruxpin Mouth Replacement

Schwierigkeitsgrad

Difficult

Schritte

15

Zeitaufwand

1 - 2 Stunden

Einleitung

If your Teddy Ruxpin’s mouth is not moving correctly or seems like it is malfunctioning, this replacement guide will help you fix your Teddy Ruxpin. The mouth should move along with storytime as audio is playing through the speaker. This guide will include desoldering and unscrewing, so be sure to utilize the iFixit desoldering guide while replacing this part as well as the other prerequisite guides.

  1. nUfqWgdYJtTKYxX2
    nUfqWgdYJtTKYxX2
    MTMSkcBDOVfbFRo5

    • Remove the vest covering the back of the bear.

    • Orient the bear with his back facing upwards and unscrew the single Phillips #2 screw.

    • Captured screws will stay in place, no need to worry about losing this one!

    If screw is missing could this be the problem

    nursejackie55 -

  2. rcVNXibq5Wd4hyBF

    • Pull the tab outward to remove the protective plate for the batteries.

  3. V4C2rIHN1X5vcVeV

    • Remove all four AA batteries by pushing the positive end down and pulling the battery out toward yourself.

    I have already changed out the batteries and it still want com on.

    Wendy Nickel

    breezy_bear99 -

  4. PfvEn1FycGsIjPi3
    PfvEn1FycGsIjPi3
    AxRppx1A3ogsHHdx
    TGQLCcuxCwYpsK6G

    • Cut the orange shirt and zip tie.

    • Remove the zip tie.

  5. fRltQEldCiKbE4SW

    • Cut across the back seam of the head of the bear along the arrow.

    • This damages the bear's exterior and will require resewing.

  6. sttQCmwI5NEMlVNH
    sttQCmwI5NEMlVNH
    2DOaIMHR2RN1bSJp
    nIWti1jICOHWt3m4

    • Remove the interior of the doll.

    • Peel the outer layer around the head of the bear and forcefully pry off the face of the bear from the outside layer of the bear.

    • This will be difficult and require significant force, but do not fear about breaking the doll at this stage.

  7. 5J1YnN1BcoXKp6IE
    5J1YnN1BcoXKp6IE
    6bntgI1X2mt3j5Tk

    • Extract each arm button.

    • Pull on the stuffing of the bear and not the wire to remove the arm button.

  8. MFc6lIh56jrjlddT
    MFc6lIh56jrjlddT
    ixHPOAqaLFaJnTv4

    • Pull off the rest of the outside layer of the bear.

  9. LV56yunOSYVWKnBA

    • Unplug the arms from the main body.

  10. BuuDpcPQBmWlWmD3
    BuuDpcPQBmWlWmD3
    WLeOVhVoSWCbgG44
    uouWsiNupK6N5Iib

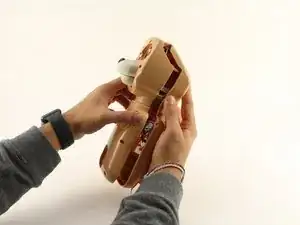

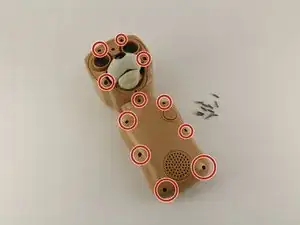

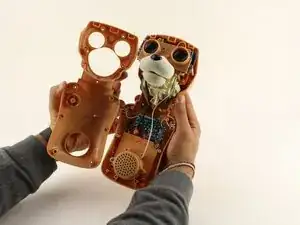

    • Unscrew the eleven circled 12.5mm Phillips #1 screws.

    • Remove the top of the housing to access the electronics inside.

  11. foR6c5oZRXHmKfxv

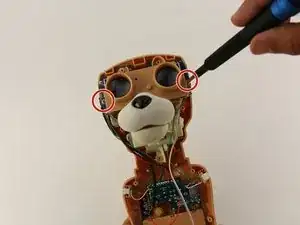

    • Using a Phillips #1 screwdriver, remove the two 12.5mm screws connecting the eyes to the rest of the mechanism.

  12. wRENSEjXr1AW6qpv
    wRENSEjXr1AW6qpv
    xFEISWqKvcT1MYgh

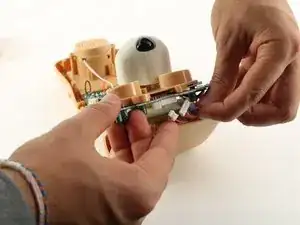

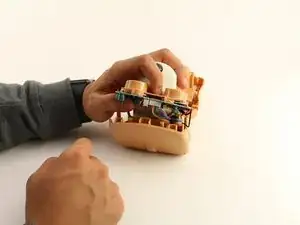

    • Unplug the two sets of wires connected to the back of the eyes by using moderate to high force.

  13. waHnOCHoLSSaQRPD

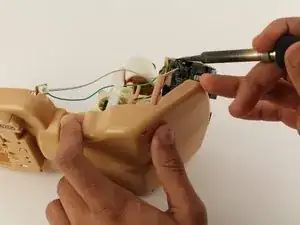

    • Once those wires are disconnected, desolder the wires connected from the eye motherboard.

  14. Vudp5fd1VwS4n4qg
    Vudp5fd1VwS4n4qg
    mcpUjXmcwMsFIMVk

    • Remove five 12.5mm Phillips #1 screws.

    • Pull the mouth mechanism out of the shell.

  15. ZJWijZhQrkfr1VXS
    ZJWijZhQrkfr1VXS
    5HDxHxFZGhbral4Y

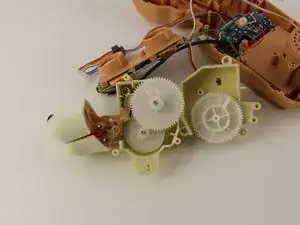

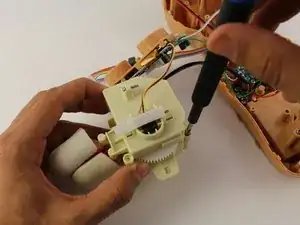

    • Unscrew the last 12.5mm Phillips #1 screw holding the mouth together

    • Open the mouth mechanism

Abschluss

To reassemble your device, follow these instructions in reverse order.
