Teenage Engineering OP-1 Batterie Austausch

Geschrieben von: Tobias Isakeit
  • Kommentare: 44
Teenage Engineering OP-1 Batterie Austausch

Schwierigkeitsgrad

Mittel

Schritte

9

Zeitaufwand

Keine Schätzung

Einleitung

Wenn du mit deinem OP-1 nicht mehr Gassi gehen kannst, muss die Batterie getauscht werden.

  1. vxoTLiJxFDPOji5X
    vxoTLiJxFDPOji5X
    ajlj12AYLBNXKv6o
    MSgrKiNeLFhWdEpd

    • Um an die Schrauben unter dem Keyboard zu kommen, musst du einige Tasten entfernen. Dafür kannst du entweder ein Opening Tool oder ein Opening Pick verwenden. Das erste Bild zeigt, welche Tasten entfernt werden müssen (insgesamt zwölf Stück).

    • Die vier länglichen Tasten der Klaviatur kannst du von links her lösen.

    • Die acht kleineren Tasten löst du von unten.

  2. NKEIk4cFqiaAPIDr
    NKEIk4cFqiaAPIDr
    faMO21YfJAINC3yK

    • Der Scherenmechanismus der acht kleinen Tasten blockiert die darunter liegenden Schrauben.

    • Wieder mit einem Opening Tool oder einem Opening Pick kannst du diese einfach herausheben.

    • Achte beim Zusammenbauen darauf, dass die Scherenmechanismen in der richtigen Orientierung eingebaut werden.

  3. SLEyuvdxWjnDuCUg
    SLEyuvdxWjnDuCUg
    RCYV1CYSlXFdOVKE
    MpduwLQ5mTtWh4lM

    • Löse die zwölf Schrauben mit einem Phillips #00 Schraubendreher.

    • Dann ziehe einfach die vier Drehknöpfe und den Lautstärkeregler ab.

    • Jetzt kannst du das Keyboard leicht anheben und versetzt nach hinten ablegen.

    Your missing the ribbon decoupling step, unless you skipped it because it’s such a tight squeeze to get back in.

    William “Zoe” FitzGerald -

    The concept of removing the square panels that the knobs sit on was skipped.

    Station 2Station -

  4. luvhUdcGVhvHVrFF

    • Entriegele die Flachbandkabel indem du die beiden schwarzen Kunststoffnasen auf jeder Seite der Anschlüsse wegdrückst.

    • Nun kannst du die Kabel herausnehmen und das Keyboard vollständig entfernen.

  5. QYS1KV2dD4UFhDrk
    QYS1KV2dD4UFhDrk
    Rpi4nn3MWGsHJo3x
    fAJTuHuPvmHbvqMN

    • Öffne die Verbindung des Displaykabels mithilfe eines Plastic Opening Tools indem du die Lasche nach open klappst.

    • Das Display ist mit einem sanften Kleber befestigt. Ein Spudger hilft dir, es zu befreien.

    • Jetzt kannst du das Kabel lösen und das ganze Display heraus nehmen.

  6. yIMwsPnAtZDAEFMq
    yIMwsPnAtZDAEFMq
    Ao1X5QASOWNuqFV6

    • Löse den Stecker der Batterie vom DSP Board.

    • Entferne die beiden Phillips #00 Schrauben, mit denen das DSP Board befestigt ist.

  7. 2VQyXqKx5ER1aEDB
    2VQyXqKx5ER1aEDB
    P2GllcMs5tD5ces6

    • Nun kannst du vorsichtig das DSP Board anheben, um an das Flex-Kabel darunter zu gelangen.

    • Löse das Flex-Kabel mit einem Spudger und entferne das DSP Board.

    Where can I get the board

    jake wesley -

    Any luck getting a DSP board?

    Robert Herman -

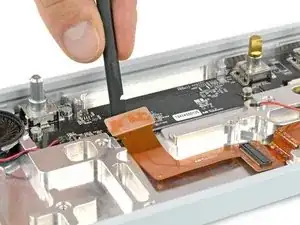

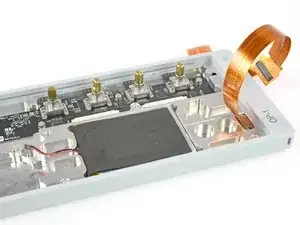

  8. YAv1borBt5SuA6ub
    YAv1borBt5SuA6ub
    heWWXffwqZZVmgYO

    • Löse das Flex-Kabel vom UI Board und biege es vorsichtig zur Seite.

    • Das Kabel ist immer noch auf der Rückseite mit dem Connector Board verbunden.

    Den Stecker der Batterie nicht rausziehen sondern nach oben hinaus hebeln.

    Ichbincool Wow -

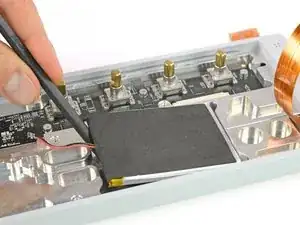

  9. JMdh2ctCET3VqFOV
    JMdh2ctCET3VqFOV
    ZjrgUxgm3ZYVHijE

    • Die Batterie ist mit ein wenig Klebstoff fixiert. Du kannst sie mit dem flachen Ende des Spudger heraushebeln. Falls sie etwas fester sitzt, löse sie vorsichtig von mehreren Seiten.

Abschluss

Arbeite die Schritte in umgekehrter Reihenfolge ab, um dein Gerät wieder zusammenzubauen.

Tinte & Feder

Tobias Isakeit

Mitglied seit: 31/03/14

108043 Reputation

39 Kommentare

This is great. What type of battery is the replacement?? thanks!

TrustNoShadows -

Hi, thanks for the question. I added another picture and put some information in the introduction.

Tobias Isakeit -

hey, thanks for this! is the battery plug simple JST or do I need to get something specific?

lfsaw -

Yes, a simple JST plug (probably type ACH)

Tobias Isakeit -

Thanks for posting these instructions! I'm having trouble finding a battery that matches the one in the picture (unless I want to buy 1000 of them from Alibaba). Would this work?

http://www.ebay.com/itm/3-7V-1800mAh-Rec...

Dimensions are:

thick:3mm

wide:60mm

length:70mm

Clarke Robinson -

Hi Clarke, the number on the battery tells the dimensions: 055070 = 5×50×70 mm (including the yellow electronics part)

Tobias Isakeit -

Hello Tobias in the photo of the battery you provided, what is that cloth wrapped around the outside?

Chad Bishop -

Hi Chad, the silver stuff ist just the wrapping of the battery. If you mean the yellow foil, this is isolation tape to protect the small controller board of the battery.

Tobias Isakeit -

Hey Chad, it’s not really a cloth but it’s actually a thin sheet of foam with an adhesive backing that’s been stuck to the battery like a sticker. I’m assuming it’s there for protection of the battery and the internal elements surrounding the battery (and I’m guessing it helps to shield it from touching anything that could cause problems electrically as well). ✌️

Lord Shongo -

Hi Tobias, any chance you could provide me with a link to purchase one of those? i cant seem to find anything but chinese dealers on aliexpress. I reside in Berlin, Germany if that any help :)

Dennis -

Hi Dennis. First of all, sorry for the late answer.

The short english version: I don't have any link for you on where to get such a battery. We would very much like to offer a battery in our store.

The longer german version: Wir hatten bereits auch schon bei TE angefragt bezüglich der Batterien, aber leider noch keine Rückmeldung erhalten. Wir würden gerne bei uns im Store eine Ersatzbatterie anbieten. Du kannst gerne auch einfach mal direkt an TE schreiben, damit sie ein Feedback von den Usern direkt erhalten. Vielleicht gibt das noch Mal einen Ruck.

Tobias Isakeit -

Can I replace the battery with more capacity, like 3.7V 3000 mA?

Coop -

Hi Coop, we haven't tried it yet, but I don't see any reason why not. As long as the voltage is the same there should not be any problem.

Maybe you want to check back with TE directly to be safe; this way they are aware that users are looking for replacement batteries, too.

Tobias Isakeit -

I may have found some for sale here: https://www.aliexpress.com/item/tablet-b...

$12 each - but shipping says it could take 60 days... I'll let you guys know how quick I get mine :)

Shawn Ivie -

I bought that and it works great!

Emil -

Hey man, did you try this battery out? Does it work properly? Please let me know I’d like to buy it as well.

hannanhakim -

Does any one know the size of the jst plug?

Jean-Paul Dracolakis -

Hi Jean-Paul, the jst plug is most likely a type ACH plug. You can find the details in the data sheet here: http://jst.de/file/download/588/ach

Tobias Isakeit -

According to TE it is a Molex 0781725006-2P

km2783 -

But after some digging, it looks to be this one, the 2 pin member of the 078172 family:

https://www.digikey.com/product-detail/e...

km2783 -

Thanks for digging deeper, km2783. Connectors is not my field of expertise ;)

Tobias Isakeit -

No problem. I also found a battery that fits perfectly but for now they can only ship to US people:

https://www.sparkfun.com/products/13855

5.6mm thick, it fills the battery area completely (the 4.8mm OEM battery left a little room). A quick “test fit” seems to indicate everything will be good to go. Of course now there is no room if, say, the cell decided to swell… and the wires need to be clipped and the right connector added. But TE can’t ship bare batteries either, and wants $100 plus shipping to replace it.

km2783 -

hi there, i damaged the black pin where the two battery cables are fixed while replacing the battery. does somebody know where i can find a new black pin like this?

Flo Raf -

Where can I find an exact replacement battery. I cant seem to find them anywhere.. Especially with the correct connector.

Mike Arz -

If my battery goes bad will I be able to power my op-1 by plugging it in with a power supply?

Bill Yates -

It’s pretty short-sighted for a company that prides itself on good design to make it so hard to replace something that will inevitably wear out after a few years. Especially on such an expensive product. Don’t think I’ll be buying this after all.

Gabriel Crossan -

Hey any tips on removing the back panel? I’ve already messed up the coating on and cant even get it to budge :(

Turner Carroll -

Hello, I was just curious, will this battery work? I’m just concerned because the description of it says that it outputs 4.2 V at full charge but it is described as a 3.7 v battery, do all batteries like this have an output “range”?

Justin Kinter -

Where can I buy an op-1 battery with the correct black connector? I know what kind of battery it takes but cannot find one with the same black connector required for the battery to terminate. My previous black connector (from the dead battery) broke. Any assistance would be greatly appreciated. Thank you.

Jerehat -

Can I change mini usb charger to type c on the op-1?

Apollo Eleven -

Hi Apollo, that’d be an interesting mod. The mini USB port is soldered onto the connector board. Not sure how to wire a 24-pin USB-C (https://en.wikipedia.org/wiki/USB-C) to the four solder joints of the mini USB on the connector board. You’d have to grab the right outputs on the back of the USB-C and solder them onto the board. Needless to say that this would be purely experimental.

Tobias Isakeit -

Batterie von Akkuking

Akku - Li-Polymer 1800mAh - für COWON D2 2GB D2 4GB D2 8GB D2 Plus 16gb

passt genau. Einfach den Stecker der defekten Batterie nutzen, Kabel trennen, verlöten mit Schrumpfschlauch isolieren oder einen JST ACHL Stecker ist aber wirklich schwer den zu crimpen.

Ichbincool Wow -

Hey, I would like to add a few comments to this guide. First the picture of the back panel is misleading as it shows the tool on the right side which is basically impossible to remove. On the panel, there is a slightly wider groove on one of the short sides where you can easily put a thin plastic spudger to lift it out and avoid scraping the coating off. Secondly, to lift the keyboard you have to do it from the bottom while looking at the OP-1 in its regular position (the top part seems to slide in a groove of its own). Finally I would advice anyone that changes the battery for a new one without the connector to VERY CAREFULLY desolder the cables from the original battery to keep the connector in place as it is very small and could break the connector. Make sure the red and black contacts NEVER touch each other, when you have one desoldered, cover it with an insulated tape. Then you can solder them to the other ends of the new battery, again extremely carefully to avoid any potential explosion. Thanks!

Francois Menes -

What is the size of JST connector? Do you have any suggest store for buying replacement battery?

Massbook -

Maybe the comment from 11/10/17 will answer that for you: Teenage Engineering OP-1 Batterie Austausch

Tobias Isakeit -

Ist es möglich genauere Angaben zur benötigten Batterie zu erhalten?

- Länge x Breite x Höhe?

- Kapazität mAH?

- wieviele Volt sollte sie haben?

… Die Einleitung ist nicht sichtbar als fehlen auch genauere Angaben.

Eigentlich toll diese Beschreibung aber schade das die Ersatzbatterie nicht beschrieben ist.

christofwagner -

Where do I buy a battery? That is fairly important

Brian J Siegel -

For everyone looking for components to order in 2021, here is what worked for me:

Battery: https://de.aliexpress.com/item/329567819...

In case you need the plugs, check out Molex Pico EZmate plugs. RS-online order numbers (molex part number) 700-0820 (78171-0002), 7001013 (78172-0002), 7000830 (78172-0410)

To unplug the plug, don’t pull to the side, but lift it up towards you. Instead of trying to crimp the cable.

Hint: You most likely won’t have the crimping tool for those plugs. They are really small. Instead unplug. Cut the cable in the middle and solder your new battery to that.

Andi Sieferlinger -
