Titan Airless Sprayer IMPACT 410 Capacitor Replacement

Geschrieben von: Alex Diaz-Kokaisl
  • Kommentare: 0
Titan Airless Sprayer IMPACT 410 Capacitor Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

15 - 30 Minuten

Einleitung

Use this guide to replace and discharge the set of capacitors in your Titan Impact 410 Airless Sprayer.

Note: To ensure the capacitors are fully discharged, unplug the sprayer for at least 20 minutes before beginning any repairs.

  1. wu65Kb5OrpKcbGWN
    wu65Kb5OrpKcbGWN
    IUL6c4WgM6oJNQWK

    • Before you begin, make sure to follow the pressure relief procedure documented in the user manual before powering down the paint sprayer and disconnecting the pump.

    • Turn off and unplug the sprayer.

  2. uDGHFxvZmfR4iXsk
    uDGHFxvZmfR4iXsk
    lTTYlVSWWIAGqlLT

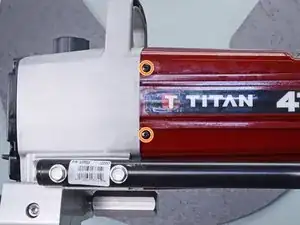

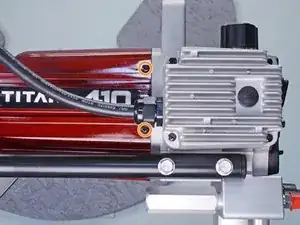

    • Use a Phillips driver to remove the four 12 mm-long screws (two on either side) securing the motor cover.

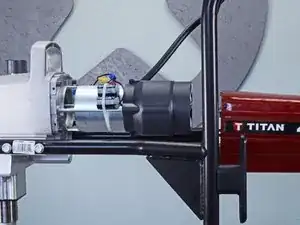

  3. o6tEIQgdAGBL1ro1
    o6tEIQgdAGBL1ro1
    MeG5UiDtdoGRNO4y
    fBFOBmiq4Ebq215b

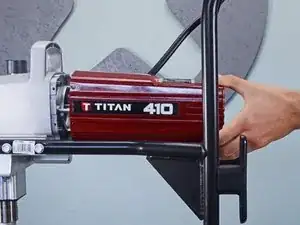

    • Pull the motor cover straight off the motor.

  4. TalysUxgtvLyBt31
    TalysUxgtvLyBt31
    vFUSjsYkDUhheefK
    CNDdKH2TlOfTroAk

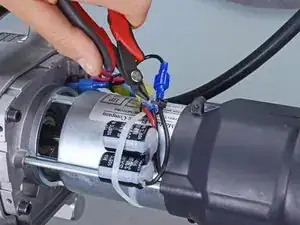

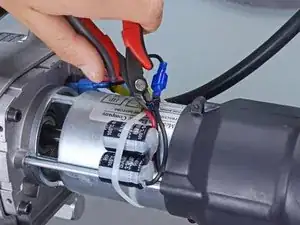

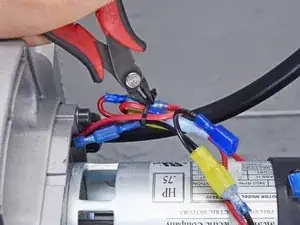

    • Use diagonal cutters, or scissors, to cut the two cable ties bundling the capacitor's positive and negative wires.

    • During reassembly, replace the cable ties.

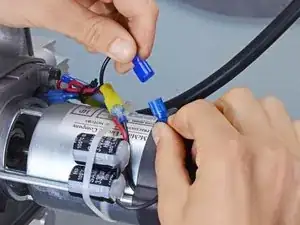

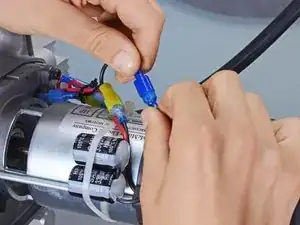

  5. VBJXmLVZY4x1Gl4w
    VBJXmLVZY4x1Gl4w
    pjhpOeBFhsPDKGJU

    • Disconnect the black negative wire's spade connector.

    • Always grip cables by their connectors and not the wires themselves.

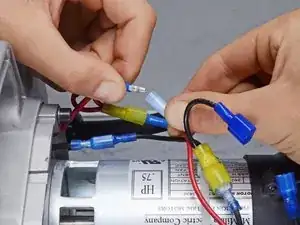

  6. gxbkhZtUpBcgwOOX
    gxbkhZtUpBcgwOOX
    GJBmbD4KiENP1XPD

    • Disconnect the red positive wire's bullet connector.

    • Always grip cables by their connectors and not the wires themselves.

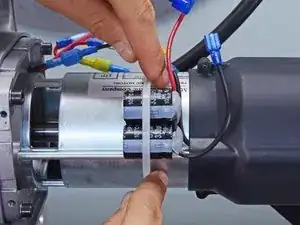

  7. qd1LlYhXLySxGCJH
    qd1LlYhXLySxGCJH
    Y3Vdy2wnsCK5hHcU
    MbtZTuAa2VWGYdeu

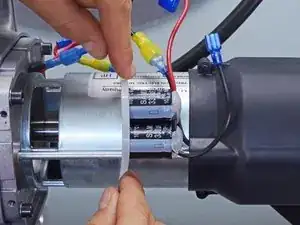

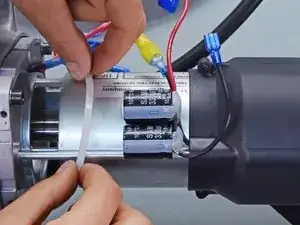

    • Grip the cable tie and slide it off the capacitors.

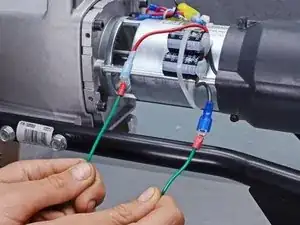

  8. MK1oU5Uv6AnuCgfC

    • If you have already discharged the capacitors, skip this step.

    • Follow this guide to discharge your capacitors.

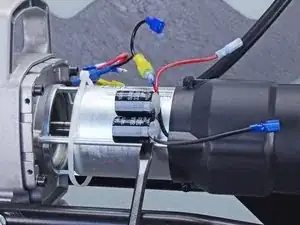

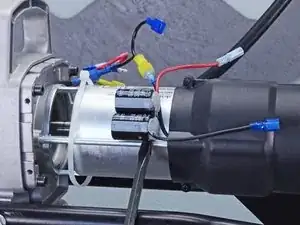

  9. TirhHtFCOkbZsVQb
    TirhHtFCOkbZsVQb
    oukUhiTmDUkvHVy6

    • The capacitors are lightly adhered to the motor body.

    • Insert a flathead screwdriver underneath the capacitors, between the bottom cell and the adhesive.

    • Pry up to separate the bottom cell from the motor body.

  10. CaDrTHU6Pd6gKRsy
    CaDrTHU6Pd6gKRsy
    iDQ3aFwUy5Z5WaWd
    pOujWKZPZTPSeDCw

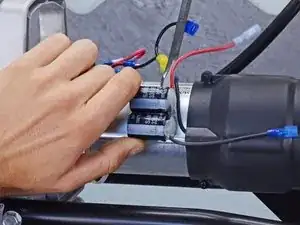

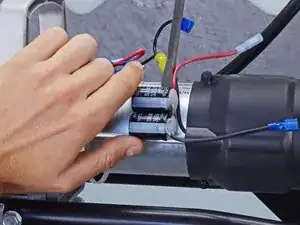

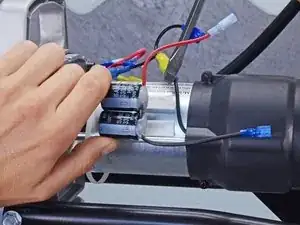

    • Insert a flathead screwdriver underneath the capacitors, between the top cell and the adhesive.

    • Pry up to separate the rest of the capacitor from the motor body.

    • Remove the capacitor.

    • During reassembly, if the adhesive is no longer sticky, replace it with double-sided foam adhesive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
