Titan High Pressure Airless Sprayer Elite 3000 Capacitor Replacement

Geschrieben von: Alex Diaz-Kokaisl
  • Kommentare: 0
Titan High Pressure Airless Sprayer Elite 3000 Capacitor Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 - 30 Minuten

Einleitung

Use this guide to replace and discharge the capacitor in your Titan Elite 3000 High Pressure Airless Sprayer.

WARNING: To ensure the capacitor is discharged, keep the sprayer unplugged for at least 20 minutes before beginning your repair.

  1. DZVXUdZWlK1PChQX
    DZVXUdZWlK1PChQX
    ZZSoXVbu3UbpdlDD
    QcuIZiG21YXA2P4R

    • Before you begin, make sure to follow the pressure relief procedure documented in the user manual before powering down the paint sprayer and disconnecting the pump.

    • Turn off and unplug the sprayer.

    • Lay the sprayer down horizontally before continuing.

  2. KSSg2yosAYFWwf1t
    KSSg2yosAYFWwf1t
    QDRGkqJbVPqThPUc

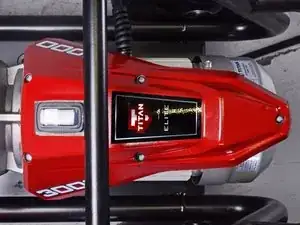

    • Use a Phillips driver to remove five screws securing the top cover:

    • Two 48 mm-long screws

    • Two 28 mm-long screws

    • One 25 mm-long screw

  3. QUNDGpHSZrvMYHXU
    QUNDGpHSZrvMYHXU
    HRRFqvFksZHNpqBa
    GEBnIJdQtpl5PBwH

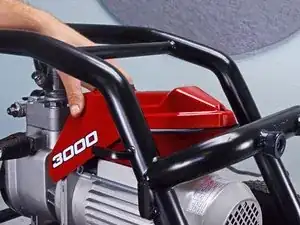

    • Don't try to remove the top cover completely, as it's connected to the body with cables.

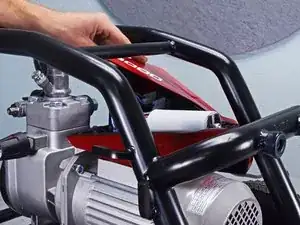

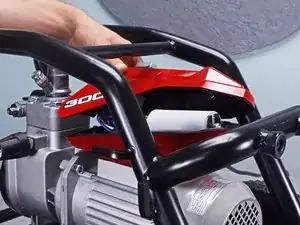

    • Pull the top cover up and reposition it to the side, exposing the capacitor underneath.

  4. 31jVCtD2KIdhLBwj
    31jVCtD2KIdhLBwj
    LPrihSFykAh25rOm

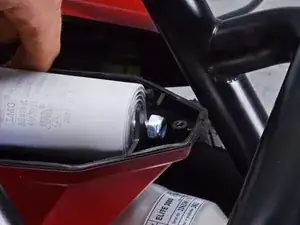

    • Use a 13 mm wrench to loosen the capacitor's nut enough to allow the capacitor to lift up.

  5. wkbFEl36aD3noHZH
    wkbFEl36aD3noHZH
    MNMsOPAQ6NpNwRIS

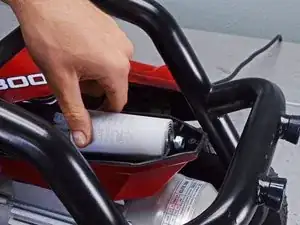

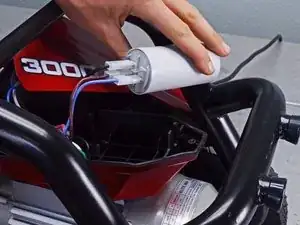

    • Remove the capacitor from its housing to access the cable connectors.

  6. ZSxxbXcAAUxFdhWK
    ZSxxbXcAAUxFdhWK
    j4aGmkTkHwQkrljC
    FJUhcWUkfPCqgLta

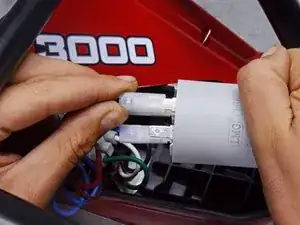

    • Disconnect the capacitor's top spade connector.

    • Grip the connector by the base of the clear head and not the wire itself.

    • Repeat this procedure for the remaining two connectors.

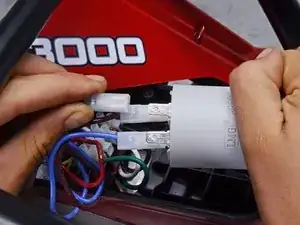

    • During reassembly, use the third photo as a reference for reconnecting the proper colored wires.

  7. jrBrGTfWp6NHVnsW
    jrBrGTfWp6NHVnsW
    e6hNvSqPkeMK1J55

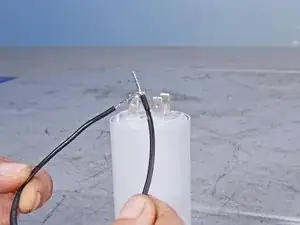

    • Remove the capacitor.

    • Follow this guide to discharge your capacitor.

Abschluss

To reassemble your device, follow these instructions in reverse order.
