Titan High Pressure Airless Sprayer Elite 3000 Inlet Valve Pusher Assembly Replacement

Geschrieben von: Alex Diaz-Kokaisl
  • Kommentare: 0
Titan High Pressure Airless Sprayer Elite 3000 Inlet Valve Pusher Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

10 - 20 Minuten

Einleitung

Use this guide to replace the inlet valve pusher assembly in your Titan Elite 3000 High Pressure Airless Sprayer.

  1. DZVXUdZWlK1PChQX
    DZVXUdZWlK1PChQX
    ZZSoXVbu3UbpdlDD
    QcuIZiG21YXA2P4R

    • Before you begin, make sure to follow the pressure relief procedure documented in the user manual before powering down the paint sprayer and disconnecting the pump.

    • Turn off and unplug the sprayer.

    • Lay the sprayer down horizontally before continuing.

  2. sPDxJxxSBPCj1ewp
    sPDxJxxSBPCj1ewp
    nUhKAcHl1kRFXLxn
    MbHZiqCcvcZFcWJX

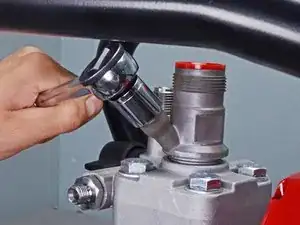

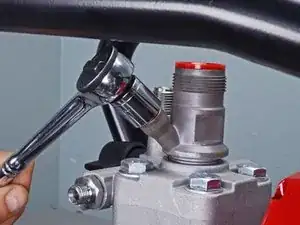

    • Use a 17 mm socket to loosen the inlet valve pusher assembly.

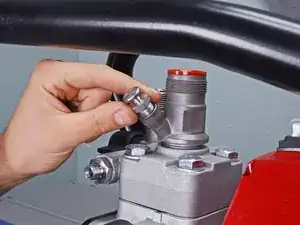

  3. qRvVTBLtBSDrquvX
    qRvVTBLtBSDrquvX
    lh4cFrpXFyBOquRF

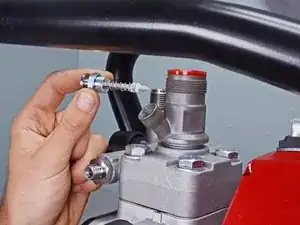

Abschluss

To reassemble your device, follow these instructions in reverse order.
