Titan High Pressure Airless Sprayer Elite 3000 Inlet Valve Replacement

Geschrieben von: Alex Diaz-Kokaisl
  • Kommentare: 0
Titan High Pressure Airless Sprayer Elite 3000 Inlet Valve Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 30 Minuten

Einleitung

Use this guide to replace the inlet valve in the Titan Elite 3000 High Pressure Airless Sprayer.

  1. DZVXUdZWlK1PChQX
    DZVXUdZWlK1PChQX
    ZZSoXVbu3UbpdlDD
    QcuIZiG21YXA2P4R

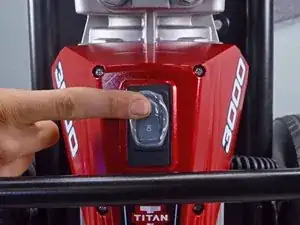

    • Before you begin, make sure to follow the pressure relief procedure documented in the user manual before powering down the paint sprayer and disconnecting the pump.

    • Turn off and unplug the sprayer.

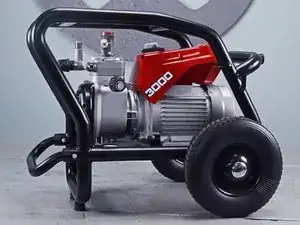

    • Lay the sprayer down horizontally before continuing.

  2. kkpTbYTWyZDJaUcO
    kkpTbYTWyZDJaUcO
    Ju2vDjLQLmO6HaEV
    GSOvZfSJQbTFXTpS

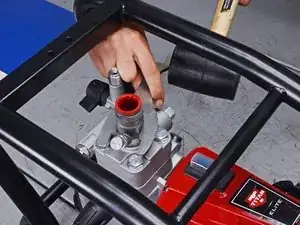

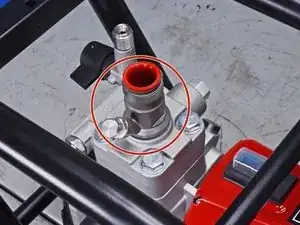

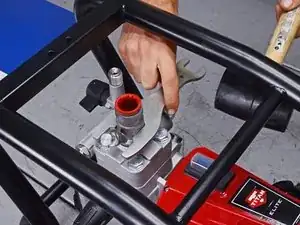

    • Use the included 30 mm wrench, or any 30 mm wrench, to loosen the inlet valve housing.

    • If you're having trouble loosening the housing, use a mallet to tap the end of the wrench.

  3. Aga6MgGKfFdTZTYt
    Aga6MgGKfFdTZTYt
    e2x1bLCfDAe5ecJU
    aUCMqf6pA6gL6pOT

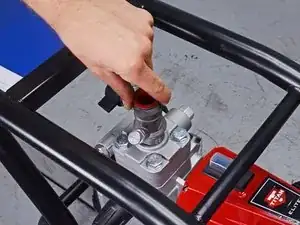

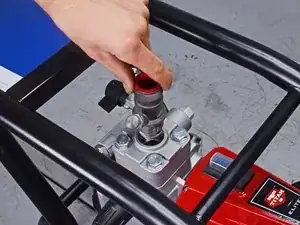

    • Remove the inlet valve housing.

  4. 3qs1kXNdI252FUar
    3qs1kXNdI252FUar
    FYElPYC3nnhd4qxg
    NSaovTjbs2xrELZF

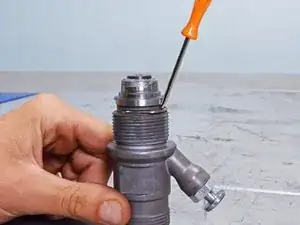

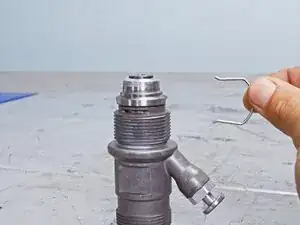

    • Use a flathead screwdriver to pry and remove the clip securing the inlet valve.

  5. EASGYNI3Pf2VXjCt
    EASGYNI3Pf2VXjCt
    WVVDyP2ibwGISCYU
    mabWaQqFfQSaHIHT

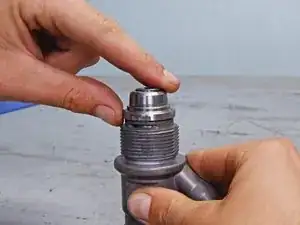

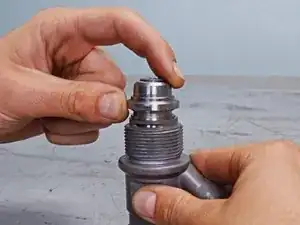

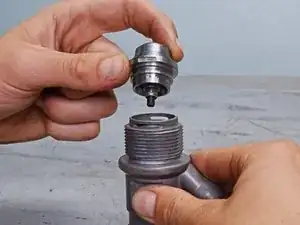

    • Use your fingers to pull up and remove the inlet valve from the bottom of its housing.

  6. nw5CELiSMgOKksZh
    nw5CELiSMgOKksZh
    LVpS2XUh2PloOdaI
    V2wRfjdDSOgOlFDA

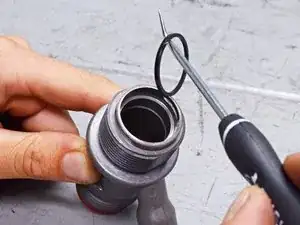

    • Use a pick tool to remove the O-ring from the inlet valve housing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
